CNC Nesting Router Machine
1. ATC function: Linear automatic changing tools,12 tools, saving time of changing tools.
2. Bed structure: Whole bed is steel structure welding, strong rigidity, no deformation.
3. Servo motor and driver: servo motor and driver, high speed and precision
Description
MOQ:
1 set
Payment Terms:
By T/T, 30% down payment before production and the 70% balance paid before shipment.
Delivery Time:
20 working days after received the down payment.
Warranty:
18 months
Packing size:
2.28*4.2*2.5m
1. ATC function: Linear automatic changing tools,12 tools, saving time of changing tools.
2. Bed structure: Whole bed is steel structure welding, strong rigidity, no deformation.
3. Servo motor and driver: servo motor and driver, high speed and precision
4. Guide rail: Taiwan square guide rail, running smoothly. high precision .long lifespan.
5. Vacuum table: With powerful absorbing power, ensure the flatness of the material surface.
6. Two Rollers: Two Rollers for fixing a small piece of materials for more stable working. (This is optional parts if you want, can add this function)
7. Control system: Taiwan SYNTEC or Shanghai WEIHONG control system, Easy operation, help correct errors in processing files in advance.
8. Automatic oil filling system: Lubricate transmission part, Improve working life of the machine.
Description & Specifications: | |
X,Y Working Area | 1300*2800mm |
Z working area | 200mm |
Whole structure | Thick 8mm steel body structure with gantry bar |
XYZ structure | Taiwan HIWIN square guide rails 30mm for all three axis |
Repositioning Positioning Accuracy | ±0.02mm |
Table Surface | Vacuum table with 7.5KW vacuum pump |
Max. idling speed | 0-60m/min |
Max. working speed | 0-30m/min |
X Y Z working Accuracy | 0.02mm |
Spindle | 9KW China HQD brand air cooling spindle with auto tool changing function |
Spindle rotating speed | 0-24000rpm |
Diameter of tools | Φ3.175 -Φ32 |
Operation language | Taiwan SYNTEC control system |
Driving system | China Leadshine 1.5 KW servo motor and driver With Japanese SHIMPO reducer |
Operating system | G-code*.u00*.mmg*.plt |
Working voltage | 380V/3 phase 50-60HZ |
Software | Supporting Type3, Wentai, Artcam, Alphacam etc software |
Tool Magazine | 12 pieces cutters carousel storage |
Dust collector | 5.5KW dust collector with two bags |
Inverter | Shanghai FULING inverter |
Main Parts: | |||||
No. | Parts Name | Picture | Quantity | Remarks | |
1 | Whole thick steel bed structure | Thick 8mm thickness welded steel bed structure with thick gantry bar for supporting machine |
| 1pc | |
2 | Drive Motor | China Leadshine brand 1.5 KW servo motor and driver |
| 4 sets | ( four sets 1KW for one x axis, two y axis, one z axis, besides one 750W for carousel disk) |
3 | Guide rail | Taiwan HWIN square guide rails 30mm for three axis 1.5M Helical rack transmission for X and Y axis |
| ||
4 | Control cabinet | Independent cabinet |
| 1 set | |

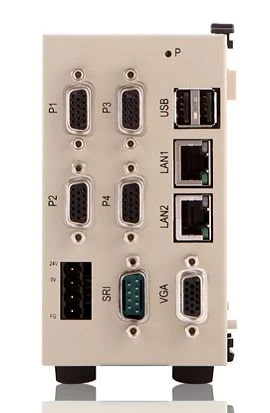

5 | Control system | Taiwan SYNTEC FC control system |
| 1 set | |
6 | Oiling system | Auto oil lubricating system with clock |
| 1 set | |
7 | Spindle | China HQD 9KW air cooling spindle with Shanghai FULING inverter |
| 1 pc | |
8 | ATC function | 12 cutters linear storage |
| 1 pc | |
9 | Table | Vacuum table with 7.5KW vacuum pump |
| 1 pcs | |
10 | Dust collector | 5.5KW with two bags |
| 1 pc | |
11 | Cutter holders, collects and cutters | 12 cutter holders, 12 collects and 30 pieces cutters |
| ||
