5 Axis CNC Machine Heavy Duty ATC Spindle Router Metal Engraving Milling High Precision 0.02mm 24000rpm Servo Drive
1.With 5 axis head ( which can be worked on 5 sides ),this machine is specially designed for curve surface cabinet, doors and indoor decoration. It can also working for some mold prcessing, like foam mold ,wood mold ,metal mold... 2. For this machine, we use top quality components:1) 5axis SYNTEC control system from Taiwan, with high performance and competitive price. Professional famous brand in 5 axis machine line. 2) ATC spindle from Italy, with strong cutting ability, low noise, it can ensure the machine working for long time. 3) Original Japan YASKAWA Servo motors & drivers from Japan, ensure the machine’s stronger strength and high accuracy. 4) Rotating head from Japan, it can make sure there are no gaps when spindle rotating.
Description
Product Description

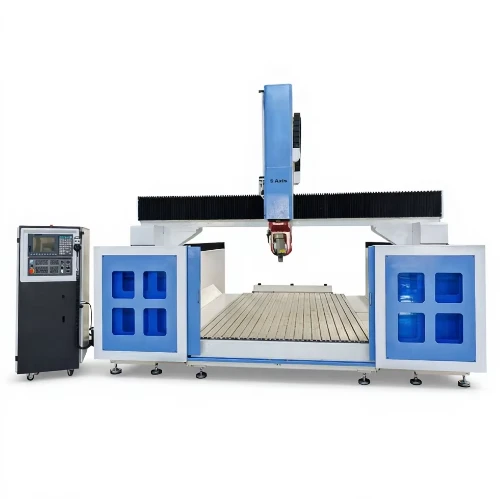

This is a five-axis CNC machining equipment with a gantry-type frame structure. It is equipped with a large-sized vacuum suction worktable and an independent CNC control cabinet. The body has strong rigidity and high operational stability. It can complete multiple complex curved surfaces of workpieces' milling, engravin, drilling, slotting and other processes with high precision in a single clamping state. It is widely applicable in industries such as woodworking furniture, mold manufacturing, advertising signs, and composite material processing, and can be adapted to the processing needs of various non-metallic materials and some soft metal materials.
The independent frequency converter is used to control the spindle speed and operating status. It can flexibly adjust the speed according to different materials, tools and processing techniques, helping to achieve smooth startup and stable processing.
structure is adopted, allowing access to the workpiece from different directions. The overall structure is compact and is equipped with a cable drag chain to ensure that the wiring remains neat and stable during the movement.
Intelligent CNC Control System
|
|
|||||||
|
Description |
Parametrs |
||||||
|
Working Area |
2000x3000x1000mm |
||||||
|
Table Size: |
3000*4700mm |
||||||
|
X,Y,Z Traveling Positioning Accuracy: |
±0.04/300mm |
||||||
|
X,Y,Z Repositioning Accuracy: |
±0.04 mm |
||||||
|
Table Surface: |
T-slot Table |
||||||
|
Frame: |
heavy steel welding |
||||||
|
X,Y,Z Structure: |
Gear rack and Ball Screw |
||||||
|
Max. Power Consumption: |
14.2kw |
||||||
|
Max. Rapid Travel Rate: |
25,000mm/min |
||||||
|
Max. Working Speed: |
15,000mm/min |
||||||
|
Spindle Speed: |
0-24000 RPM |
||||||
|
Drive Motors: |
Yaskawa Servo, also can be optional China brand servo motor and driver |
||||||
|
Working Voltage: |
AC380V, 50/60Hz, 3PH (Option:220V) |
||||||
|
Command Language: |
G Code |
||||||
|
Operating System: |
Syntec Control System |
||||||
|
Computer Interface: |
CF Card, Ethernet |
||||||
|
Flash Memory: |
512M (U Disk) |
||||||
|
X,Y Resolution: |
< 0.02mm |
||||||
|
Software Compatibility: |
UGS, Alpha Cam, Becam, Type3, Ucancam V9 |
||||||
|
Running Environment Temperature: |
0°-45° |
||||||
|
Relative Humidity: |
30%-75% |
||||||
|
Packing Size: |
2000x5800x2000mm(in parts) |
||||||
|
N.W.: |
4000kg |
||||||
|
G.W.: |
5000kg |
