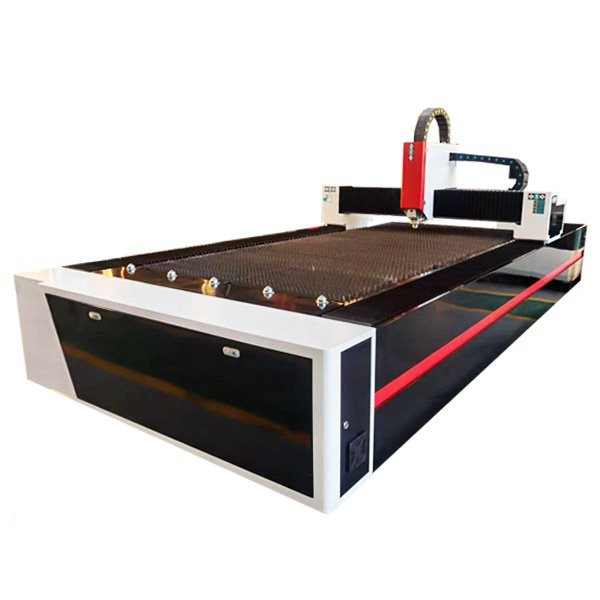

2000W Fiber Laser Cutting Machine

2000W Fiber Laser Cutting Machine

Fiber laser is a new type of fiber laser output high energy density laser beam, and gathered on the surface of the workpiece, the workpiece is illuminated by the ultra-fine focal spot of the area of instant melting and gasification, through the numerical control mechanical system to move the spot irradiation position to achieve automatic cutting.

Description

Feature

Fiber laser is a new type of fiber laser output high energy density laser beam, and gathered on the surface of the workpiece, the workpiece is illuminated by the ultra-fine focal spot of the area of instant melting and gasification, through the numerical control mechanical system to move the spot irradiation position to achieve automatic cutting. Compared with the large volume of gas laser and solid laser has obvious advantages, has gradually developed into a high precision laser processing, LIDAR systems, space technology, laser medicine and other fields of important candidates.






Fiber laser cutting machine it can do plane cutting, can also do bevel cutting processing, and the edge neat, smooth, suitable for metal plate and other high-precision cutting processing, coupled with the mechanical arm can be three-dimensional cutting instead of the original import of five axis laser. Compared with ordinary carbon dioxide laser cutting machine more space saving and gas consumption, high photoelectric conversion rate, is energy saving and environmental protection of new products, is also one of the world's leading technology products.

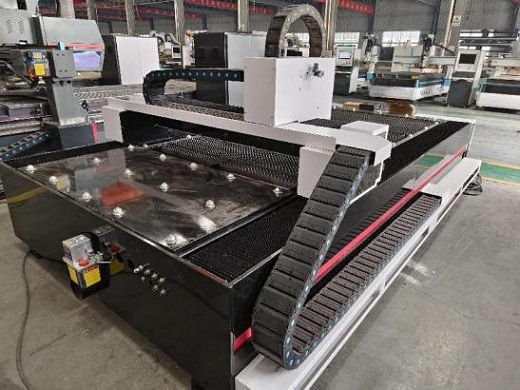

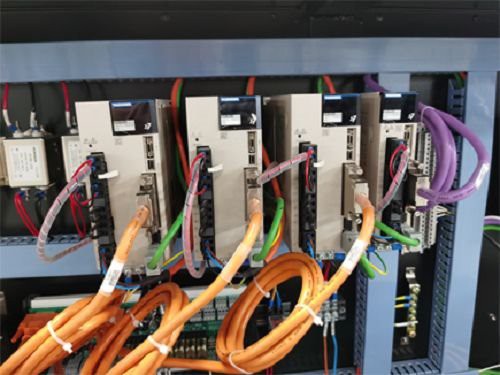

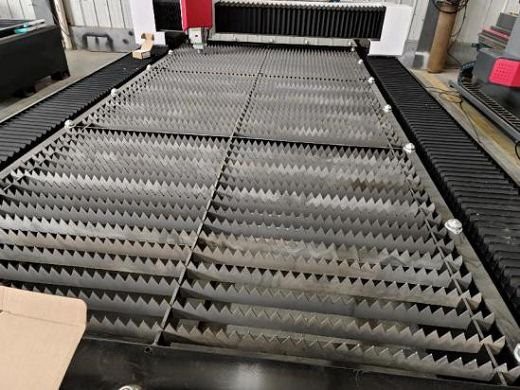

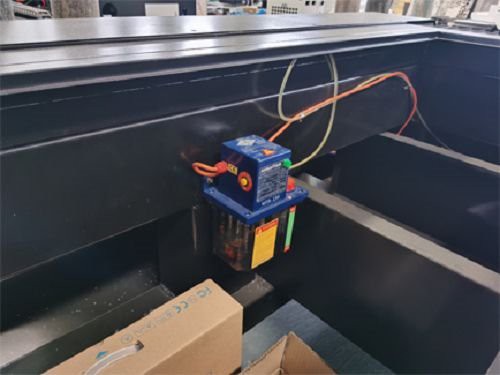

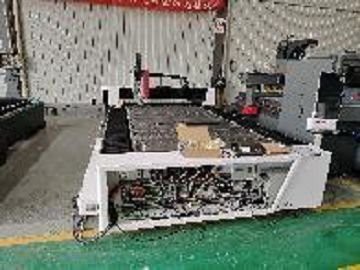

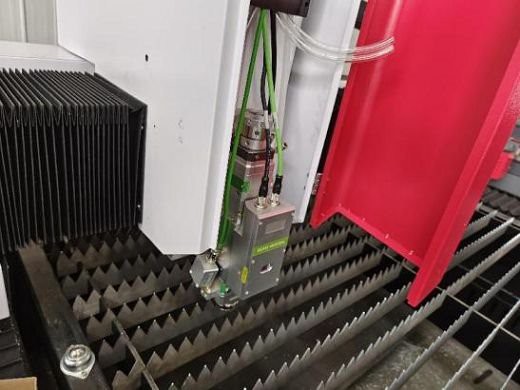

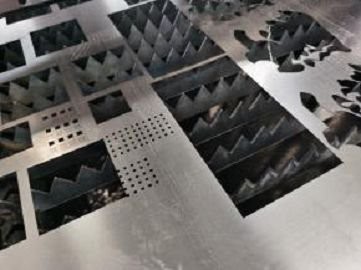

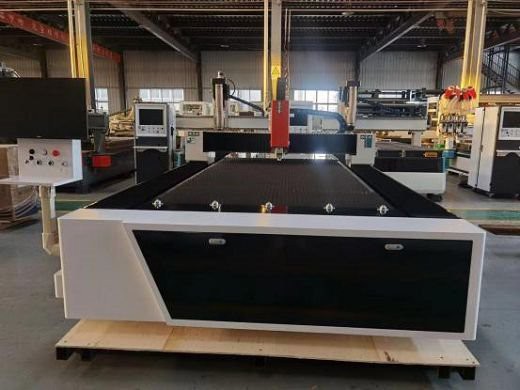

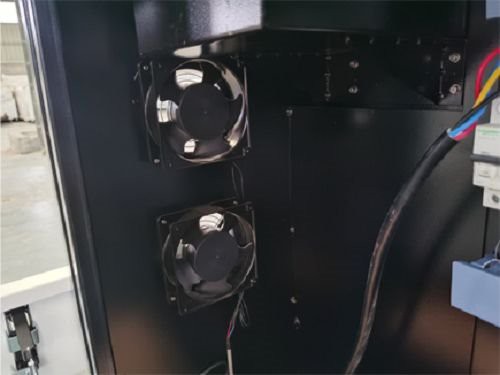

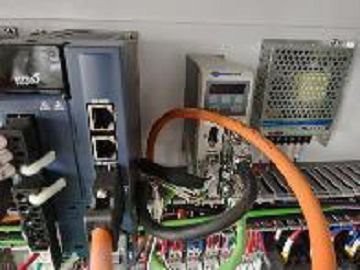

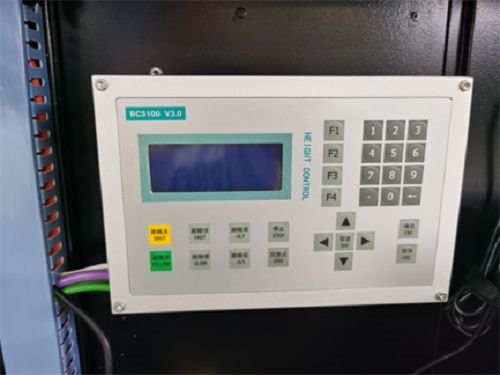

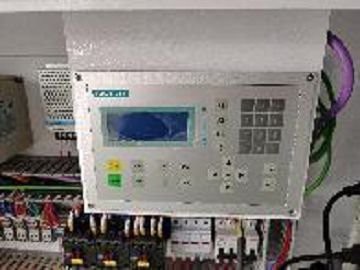

detail photos





301503

301505

301507

301508

301510

301512

301514

301516

301518

301520



technical Parameter

Mode:ZK-3015L

Working area

1500*3000mm

Graphic format accuracy

CAD,DXF,etc

Laser type

Fiber laser generator

Working environment

Temp:0-40℃,humidity:≤80%,No condensation

Transmission system

Gantry double-drive structure

Power supply

Single phase 220V,50Hz,60Hz

Laser power(optional)

1000W/1500W

Overall dimension

4450*2450*1800mm

Positioning accuracy

0.03mm

Gross weight

1600kg

Reposition accuracy

0.02mm





Maximum speed

120m/min





Maximum accelerated

1.2G







Machine Advantage

1) High-rigidity heavy chassis, reducing the vibration generated during high-speed cutting greatly.
2) Gantry double-drive structure, with imported German rack&pinion transmission system,improves the production efficiency.
3) High-performance cast aluminum guide rail, after finite element analysis, realizes highly accelerated speed circular arc cutting.
4) Open worktable, simple operation and small space occupation.



301

Fiber laser electro-optical conversion efficiency is high, conversion efficiency is more than 30%, low power fiber laser without water chiller, using air cooling, can greatly save the power consumption during work, save operating costs, to achieve the highest production efficiency;

302

The laser plus the optical gate can be a multi-machine, through the optical fiber, divided into multiple channels and multiple sets of work at the same time, easy to expand the function, upgrade is convenient and simple;

Fiber laser has the advantages of small volume, light weight, movable working position and small footprint.
