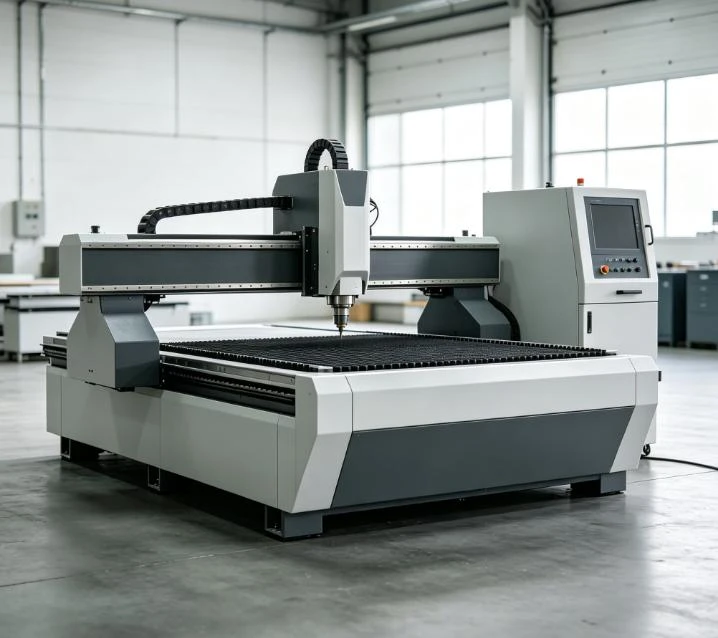

CNC Cutting Processing Machine



The CNC Cutting Processing Machine is an industrial-grade solution engineered for high-precision cutting, routing, profiling, and nesting of diverse panel materials. Combining a heavy-duty, stress-relieved steel gantry with an advanced industrial CNC controller and high-torque spindle options, this system delivers consistent dimensional accuracy for demanding production environments. Designed for seamless integration into woodworking, cabinetry, signage, and plastic fabrication workflows, the platform supports modular hardware configurations to meet specific factory throughput requirements.





Industrial-Grade CNC Cutting Performance
The rigid steel framework and synchronized motion control algorithms ensure precise tracking and minimal tool vibration during high-feed rate operations, enabling tight-tolerance nested cutting and detailing.

Multi-Material Processing Versatility
Engineered to process engineered wood, solid wood, MDF, plywood, structural acrylics, engineering plastics, and non-ferrous composite sheets with optimized surface finishes.

High-Throughput Workflow Efficiency
Synchronized drive systems and automated material alignment functions reduce cycle times, minimize manual handling, and maintain repeatable accuracy across multi-shift production cycles.

Modular Hardware Configuration
Configurable options include active processing envelopes, spindle power profiles, automatic tool changer capacities, dynamic multi-zone vacuum layouts, and material handling automation.





Item	Specification
Working Area	Tailored to custom dimensions and layout requirements
Spindle Power	Configurable from standard air-cooled to high-torque liquid-cooled options
Spindle Speed	Variable speed drive, adjustable up to material-specific limits
Drive System	High-resolution digital Servo or heavy-duty Stepper drive packages
Control System	Industrial multi-axis CNC controller
Table Type	Dynamic multi-zone high-flow vacuum adsorption table
Processing Materials	MDF, plywood, hardwood, acrylic, PVC, composite panels
Machine Structure	Thermal-stress-relieved heavy-duty welded steel frame
Positioning Accuracy	Defined by selected motion components and encoder feedback configurations
Voltage	Customized to standard industrial power grids of the destination region







CNC Control System
An industrial controller featuring real-time signal processing, look-ahead path planning, and direct compatibility with industry-standard G-code and CAD/CAM software.

Precision Spindle Unit
Industrial-grade spindle cartridge supported by high-precision ceramic bearings, engineered to withstand high radial and axial forces during continuous milling.

Dynamic Vacuum Workholding System
A high-volume vacuum matrix divided into independent zones, allowing operators to concentrate holding force directly under the workpiece for secure processing.

Precision Motion & Transmission Guide
High-precision helical rack-and-pinion drives on the X and Y axes, paired with pre-loaded ball screws on the Z-axis and heavy-duty linear profile guide rails.





We provide engineering and layout integration services to match specific manufacturing line workflows:





Every manufacturing run is subject to a rigorous factory acceptance testing protocol. This procedure covers geometrical alignment, electrical safety checks, CNC calibration, and actual test cuts to verify performance metrics.
● CE Certification Compliance
● ISO 9001 Quality Management System Standards





All machinery is prepared utilizing proven export preservation protocols to protect mechanical and electrical components from transit-related environmental exposure.





Remote Commissioning Guidance: Step-by-step assistance for mechanical leveling, electrical connection, and initial power-up.

Operational Training Resources: Structured manuals, wiring diagrams, and video modules covering software workflows and setup procedures.

Technical Consultation: Direct access to engineering support for application queries, feed/speed optimization, and tool selection.

Preventive Maintenance Programs: Detailed guidelines and schedules to assist maintenance crews in preserving machine longevity.

Spare Parts Logistics: Strategic inventory of wear parts and critical components to ensure rapid dispatch and minimize operational downtime.
