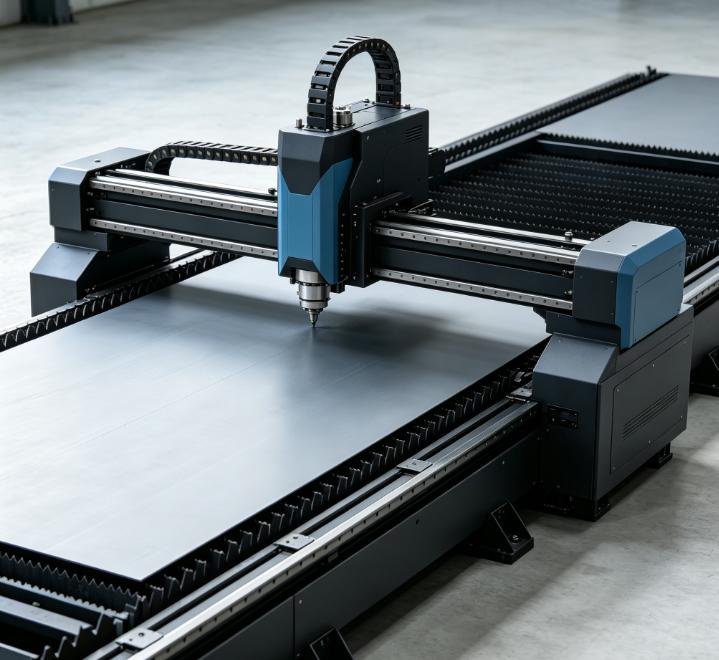

Precision Panel Cutting Machine
The Precision Panel Cutting Machine is engineered for heavy-duty cutting, profiling, and industrial panel processing. Built with a high-rigidity steel frame, precision transmission systems, and industrial CNC control technology, this machine delivers stable processing accuracy for furniture manufacturing, architectural panel processing, and signage fabrication.
Description
Product Overview
The Precision Panel Cutting Machine is engineered for heavy-duty cutting, profiling, and industrial panel processing. Built with a high-rigidity steel frame, precision transmission systems, and industrial CNC control technology, this machine delivers stable processing accuracy for furniture manufacturing, architectural panel processing, and signage fabrication. Custom system configurations are available to meet specific factory throughput requirements.
Product Advantages
Vibration-Dampening Frame: The stress-relieved, heavy-duty chassis minimizes resonance during high-speed cutting, protecting tool life and securing edge quality.
Modular Configurations: Flexible options for working dimensions, spindle power ratings, automatic tool changers, and multi-zone vacuum tables to align with specific manufacturing flows.
Simplified Maintenance: Built with standardized mechanical and electrical components, allowing straightforward routine servicing and minimal downtime.
Technical Specifications
|
Item |
Specification |
|
Machine Type |
Precision Panel Cutting Machine |
|
Working Area |
Customized based on production requirements |
|
Spindle Power |
Optional configurations (air/liquid-cooled) |
|
Spindle Speed |
Variable, adjustable per material requirements |
|
Drive System |
High-precision servo or stepper drive systems |
|
Control System |
Industrial CNC controller |
|
Table Type |
Multi-zone vacuum adsorption table |
|
Processing Materials |
MDF, plywood, solid wood, PVC, acrylic, composites |
|
Tool Magazine |
Optional linear or rotary automatic tool changer |
|
Positioning Accuracy |
Industrial-grade CNC positioning |
|
Software Compatibility |
Standard CAD/CAM post-processors supported |
Processing Materials
The machine is optimized for processing:
MDF, chipboard, and particle board
Solid wood, plywood, and blockboard
Acrylic (PMMA) sheets and polycarbonate
PVC, foam boards, and technical plastics
Aluminium composite panels (ACP)
High-pressure laminates (HPL) and cladding boards
Applications
Cabinetry & Furniture: Precision sizing, grooving, and shaping of cabinet carcasses and doors.
Custom Woodworking: High-yield production of bespoke architectural millwork.
Exhibition & Signage: Routing and cutting of dimensional lettering, displays, and promotional panels.
Plastic Fabrication: Processing of industrial plastic sheets and engineering components.
Interior Decoration: Automated nesting and profiling of decorative wall panels.
Machine Configuration & Customization
To match specific production environments, configurations can be selected for:
Table Dimensions: Scaled to match standard international sheet sizes.
Spindle Selection: Various power options and cooling types available.
Tool Management: Manual, semi-automatic, or fully automatic tool change systems.
Material Holding: Single or multi-zone vacuum pumps with high-flow hold-down performance.
Dust Extraction: High-capacity dust hoods and integrated collection systems.
Quality Control & Manufacturing Process
Every machine undergoes a rigorous validation process before shipment to ensure geometric alignment and functional stability. Our quality protocols focus on:
Laser interferometer calibration of linear axes
Dial indicator testing for frame flatness and alignment
Full-load electrical and safety system testing
Multi-hour dry-run testing of the CNC controller
Factory trial cuts on test materials to verify edge finish
Certifications & Compliance
The manufacturing processes and standard components comply with recognized international standards:
CE Declaration of Conformity (safety, health, and environmental requirements)
ISO 9001 Quality Management System standards
Installation & After-sales Support
Comprehensive technical support ensures smooth commissioning and stable ongoing operation:
Packaging & Global Delivery
Industrial-grade export packaging is utilized to protect the machine during sea, land, or air transit:
Anti-corrosion and moisture-barrier wrapping on all machined surfaces
Heavy-duty steel or timber skids for secure handling via forklift
Solid wooden crate enclosure with internal bracing to prevent movement
Clear compliance marking and shipping labels in accordance with international logistics standards
FAQ
Q: What materials can the Precision Panel Cutting Machine process?
A: The system processes MDF, plywood, solid wood, acrylic, PVC, and various composite sheets.
Q: Can the machine dimensions be customized?
A: Yes. Working areas, spindle capacities, and automation levels can be configured to match your factory floor plan and material dimensions.
Q: Is the machine suitable for multi-shift industrial production?
A: Yes. The heavy-duty welded frame and industrial-grade motion components are designed for continuous, multi-shift operation.
Q: What technical training is required to operate this machine?
A: The CNC controller features an intuitive interface. We provide structured training materials to help operators quickly master standard procedures.
Q: What after-sales support is provided for international buyers?
A: We offer technical support, troubleshooting, operational guidance, and spare parts supply to ensure minimal downtime.
Q: How is the machine protected during ocean freight?
A: Machines are treated with rust-preventative oil, wrapped in moisture-proof barrier film, and secured inside reinforced wooden crates designed for international sea shipping.
