Automatic Hot Wire Cutting Machine

Product Overview

This CNC hot wire foam cutting machine is professional thermal cutting equipment for foam materials. It uses heated metal wire to melt and cut foam blocks, controlled by an independent CNC control cabinet. It can process both 2D outlines and complex 3D foam shapes. The large worktable supports big‑size raw foam blocks, widely applied in architectural models, decoration, advertising signs, foam sculpture and EPS packaging industry.

Core Working Principle

It adopts hot‑wire thermal melting cutting technology. The metal wire is heated to constant high temperature. When the hot wire contacts foam material, it melts the foam instantly to finish cutting. No mechanical extrusion on workpiece, so there will be no material deformation. The CNC system drives the movement of hot wire to realize automatic profiling cutting according to imported drawing files.

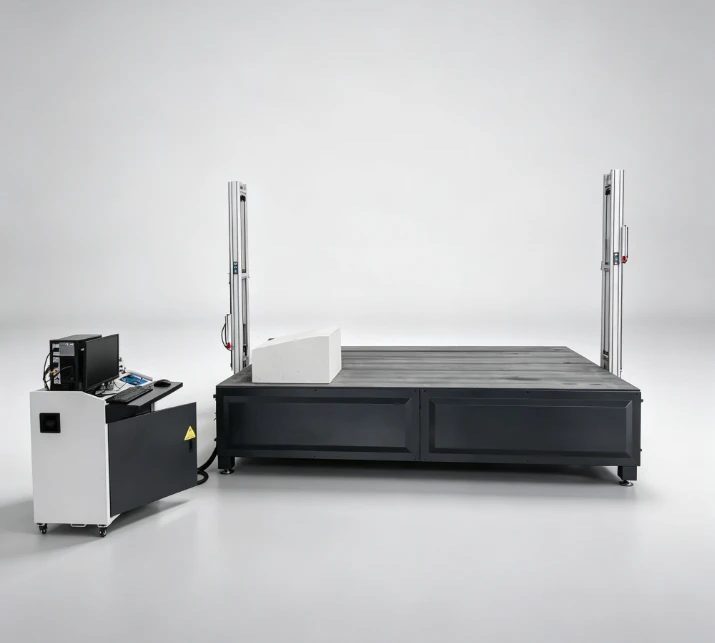

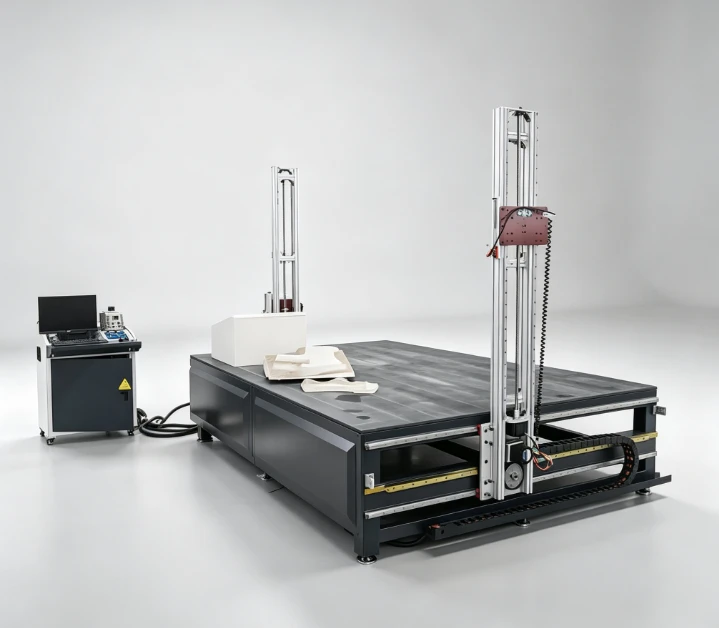

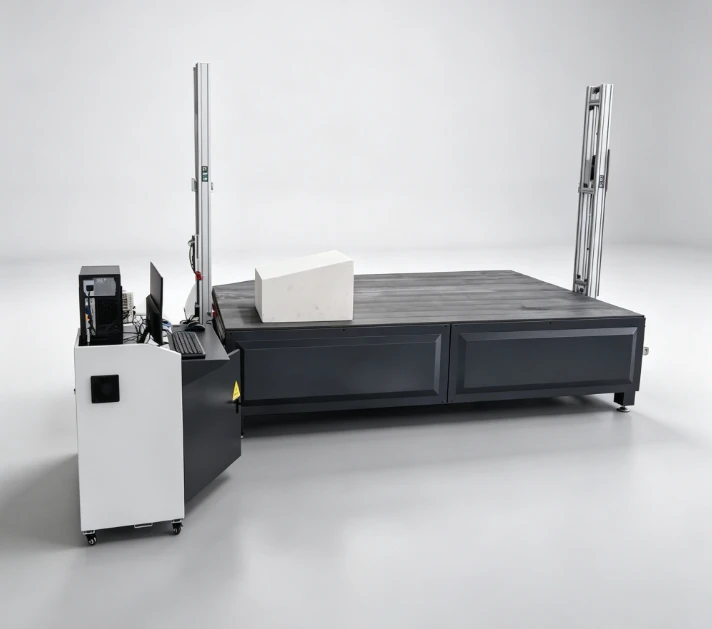

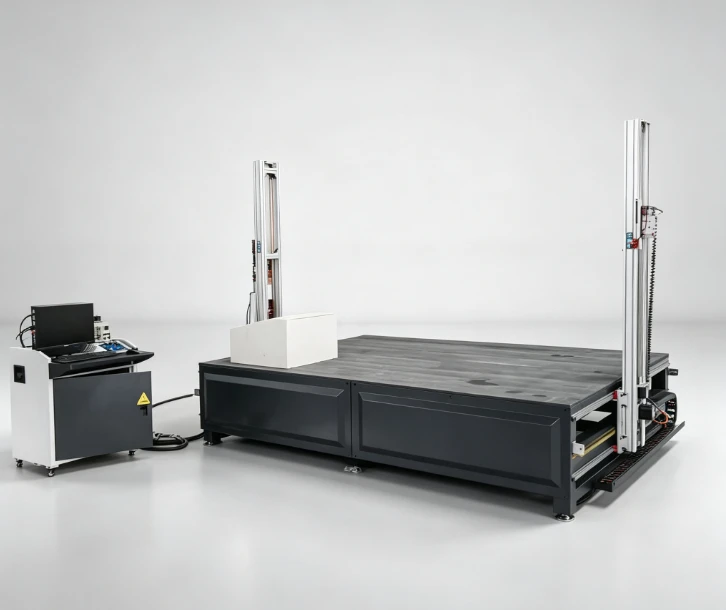

Main Structure

Large‑size processing table: Heavy‑duty platform, stable bearing capacity, suitable for large EPS foam blocks.

Dual vertical motion columns: Two high‑precision vertical columns drive hot‑wire frame to move steadily, guarantee cutting verticality.

Independent CNC control cabinet: Comes with industrial computer, keyboard and mouse. Operators import CAD drawing files directly to set cutting paths.

Stable electrical heating system: Constant‑temperature heating control, keeps wire temperature stable during long‑time continuous work.

Key Advantages & Features

✅ High cutting precision: Smooth, burr‑free cutting surface, no secondary polishing needed.

✅ Support 2D & 3D cutting: Realize various complex curved, special‑shaped foam profiles.

✅ Easy operation: Compatible with common CAD drawing formats. Simple programming for workers.

✅ Stable long‑time running: Heavy‑duty machine body, anti‑deformation, suitable for industrial mass production.

✅ Low material loss: Thermal melting cutting causes little foam waste.

Applicable Materials

EPS / Styrofoam (polystyrene foam)

EPP foam

Other thermoplastic foam materials

Application Fields

Building architectural model making

Foam decorative ornaments, sculpture crafts

Advertising 3D letter sign production

EPS foam packaging industry

Stage & exhibition foam props

Technical Highlights

Separate control cabinet design, reduce vibration interference for higher cutting accuracy.

Adjustable hot‑wire temperature for different foam density.

Large travel design for oversized foam workpiece processing.

Human‑friendly safety protection design for daily operation.
