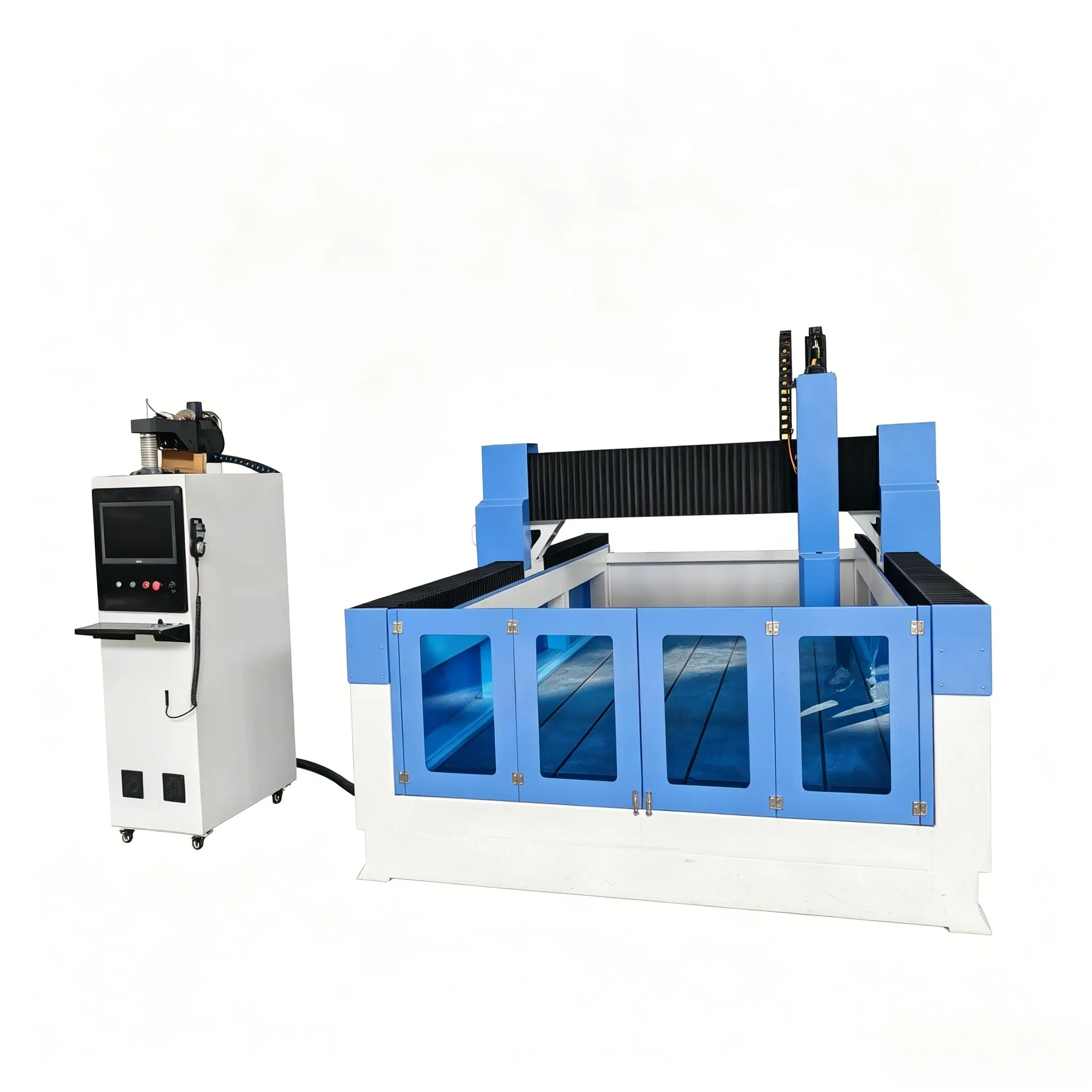

Foam Cnc Router For Engraving And Milling EPS Styrofoam

Feature

1 Enhanced multi angle machining capacity The swing spindle can tilt within a large angle range. It allows the cutting tool to approach workpieces from different directions. It can machine inclined planes bevels chamfers partial undercuts and complex continuous curved surfaces. Many complex angled structures cannot be completed or need heavy manual work on 3 axis machines. 3 axis equipment only supports vertical tool feeding and can mainly handle flat surfaces and simple 2.5D relief shapes.

2 Less workpiece re clamping and higher production efficiency Most multi side and multi angle features can be finished in one single clamping setup. Operators do not need to stop the machine to rotate or reposition foam blocks frequently. It saves plenty of auxiliary setup time especially for large size polystyrene molds and sculpture models. 3 axis machines require repeated disassembly and re clamping for multi face work which extends total processing cycle.

3 Better machining accuracy and stable surface quality Fewer manual re clamping steps greatly reduce cumulative positioning errors caused by repeated fixture adjustment. The cutting tool can keep proper contact angle with foam material during carving. It produces smoother curved surfaces and cleaner edge details. It avoids obvious joint traces brought by segmented processing on 3 axis machines for complex 3D models.

4 Wider application range for polystyrene projects Besides all jobs done by 3 axis machines such as flat cutting relief engraving and simple mold making this machine handles 3D sculptures casting lost foam patterns automobile foam molds large decorative art models and architectural prototype with complicated curved outlines. It supports EPS styrofoam PU foam and other similar foam materials for diversified model demandsAlibaba.co....

5 Optimized cutting performance for foam material The swing head adjusts tool posture freely. It makes full use of tool side edge for material removal. It improves foam cutting efficiency and reduces tool wear. For deep cavity and inclined feature carving it avoids the limitation that 3 axis tools can only cut straight downward. It delivers higher material removal rate for large foam blanks.

6 Balanced cost performance between 3 axis and full 5 axis equipment It realizes most complex angle processing requirements at lower investment than 5 axis machines. It is a cost effective solution for medium and high complexity polystyrene foam mold production. Compared with 3 axis machines it expands product capability without extremely sharp cost increase for foam pattern workshops.

7 Flexible tool path adaption It works with mainstream CAM software to generate 4 axis linkage tool paths. It can switch between 3 axis mode and 4 axis swing mode freely. Users can process simple flat work or complex angled 3D parts on the same machine to improve equipment utilization rate.

Technical Parameter

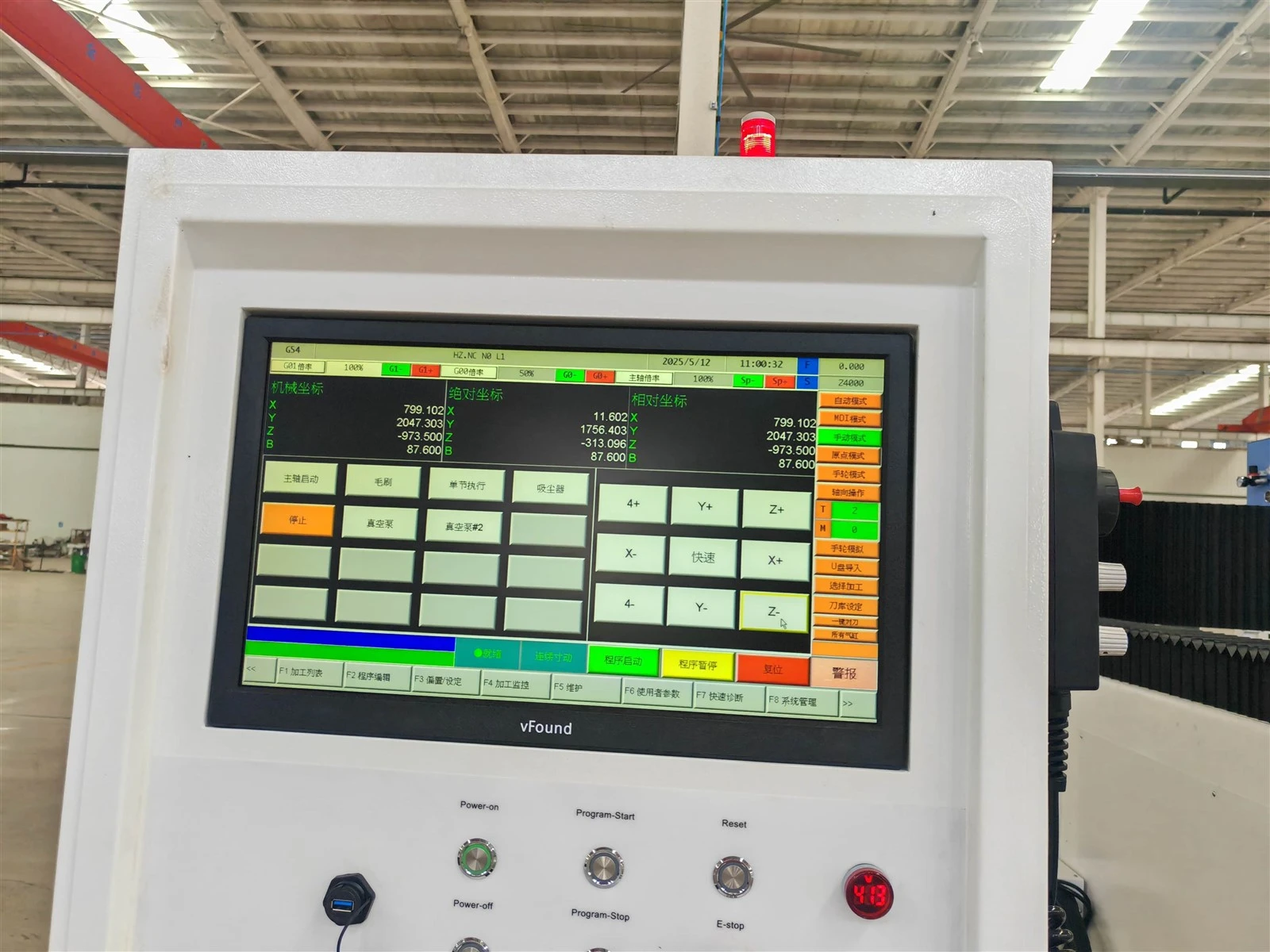

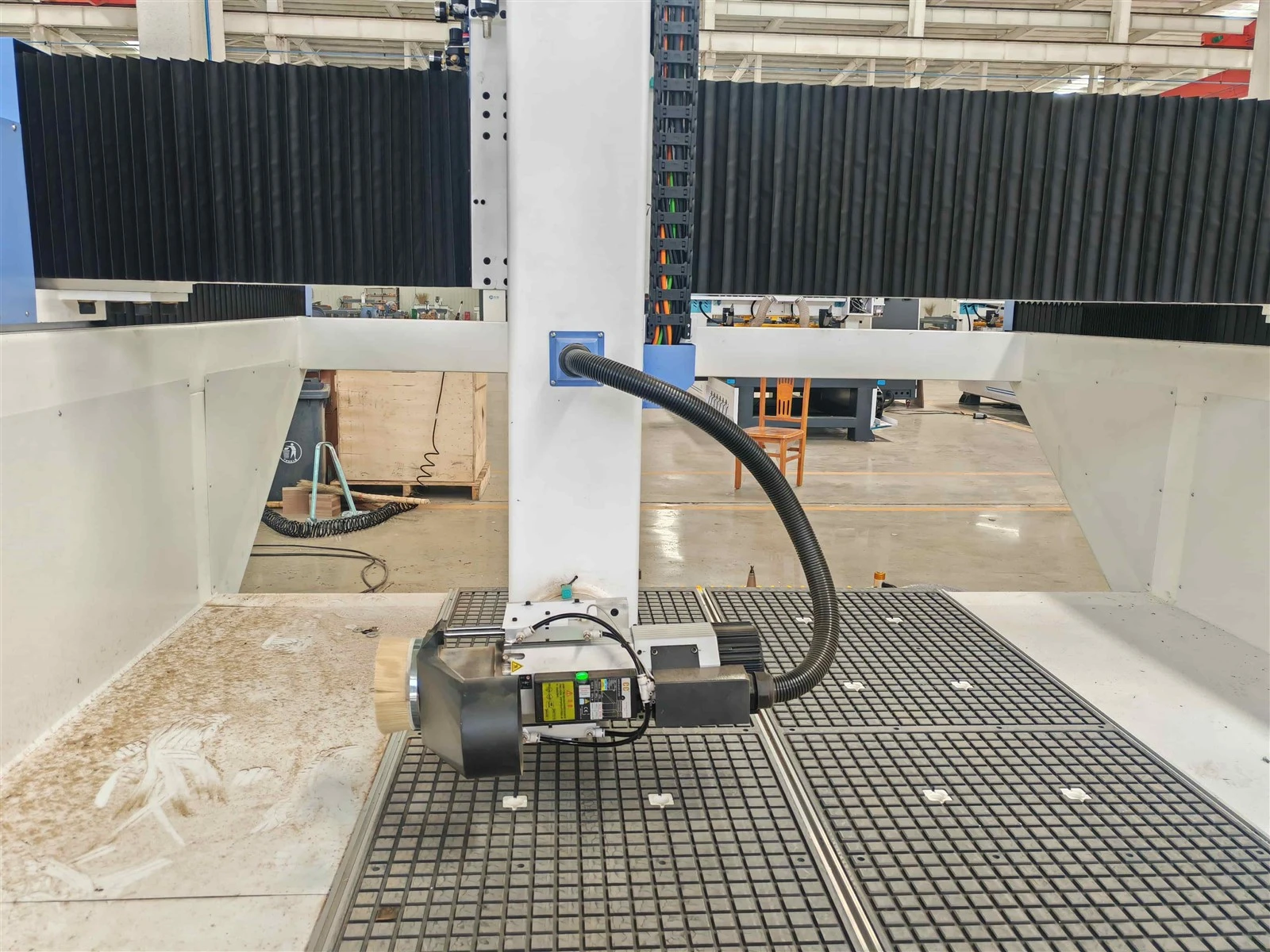

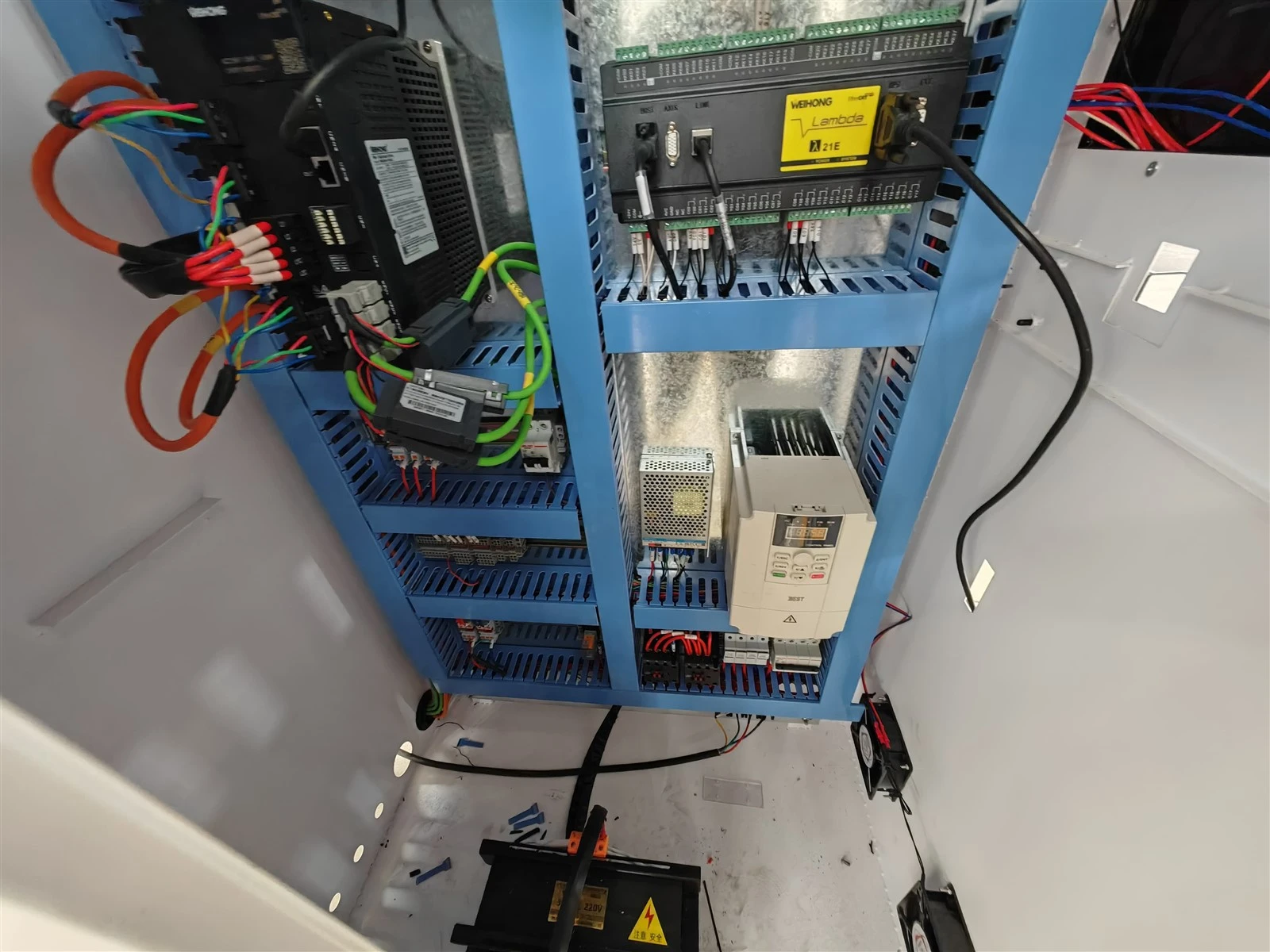

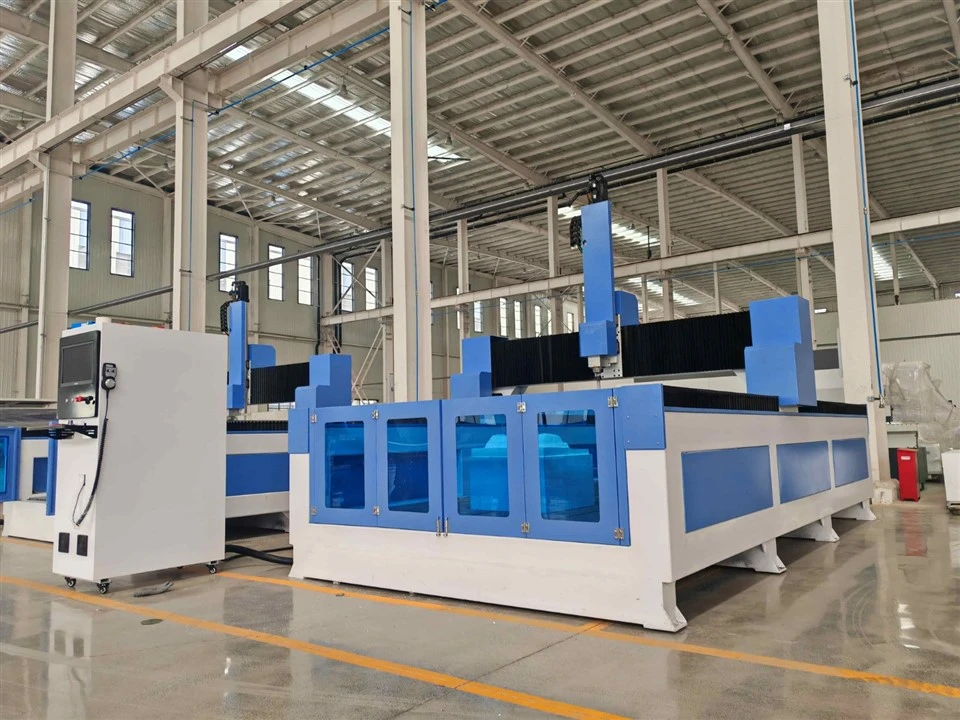

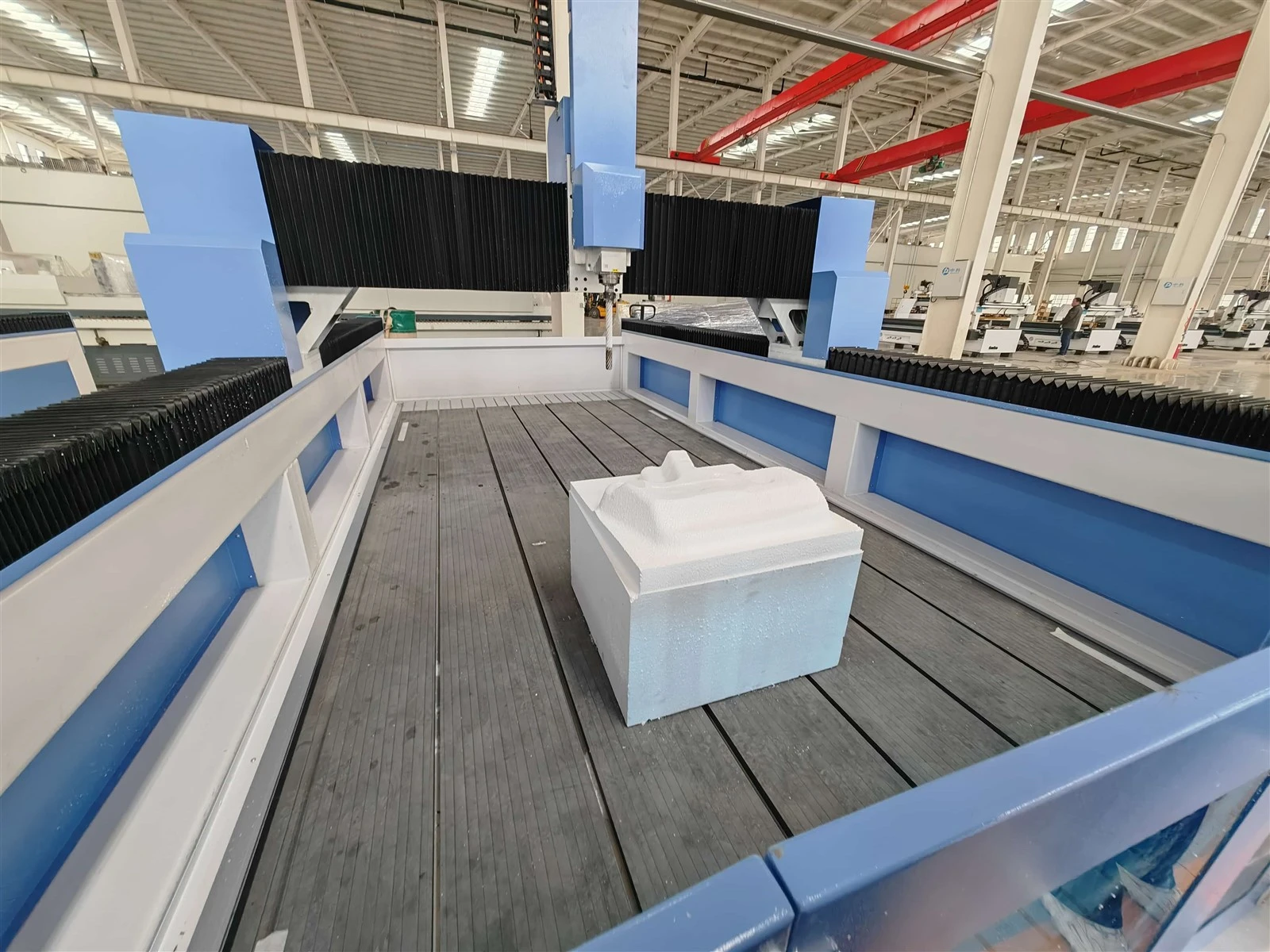

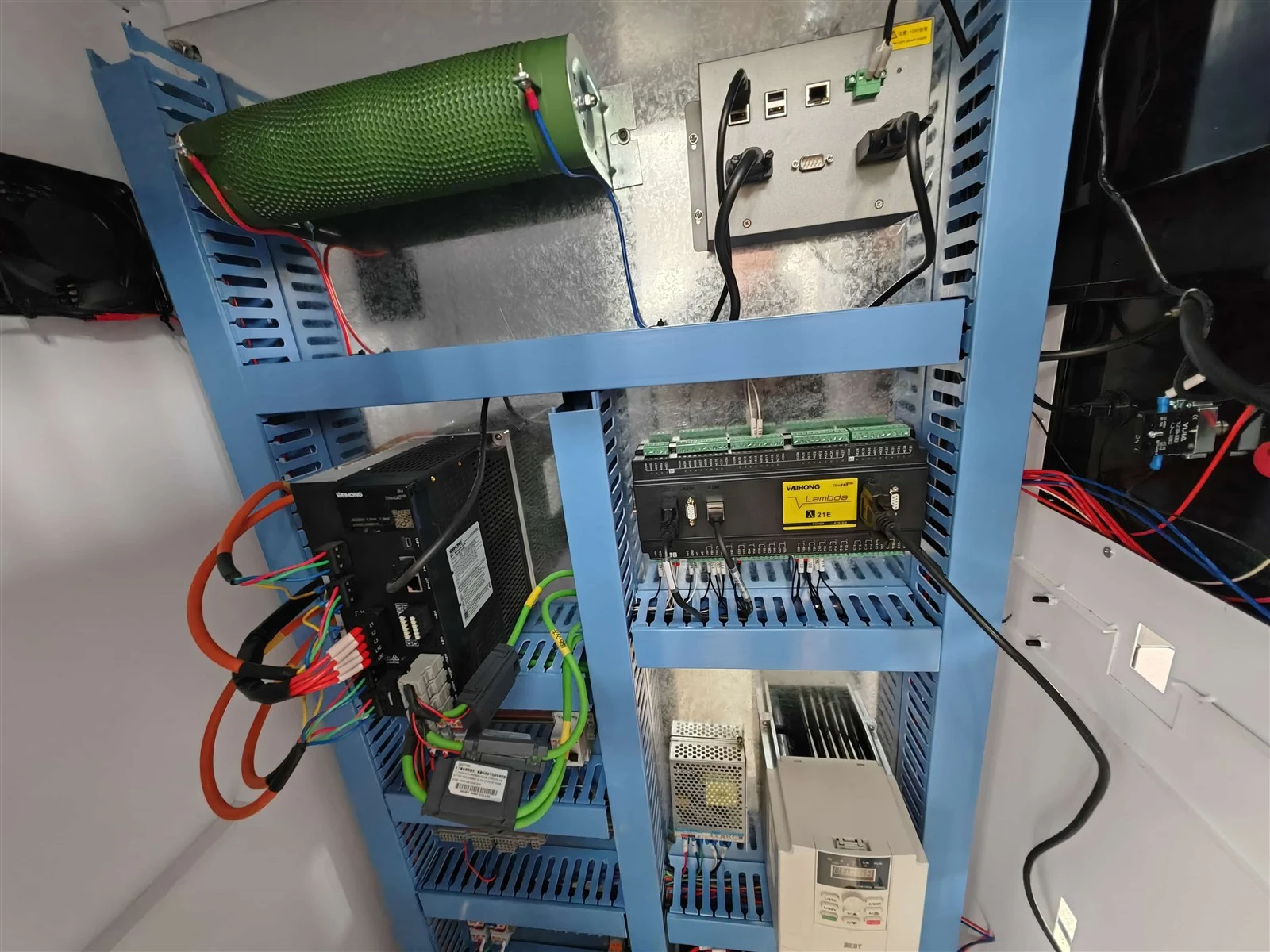

detail machine photos

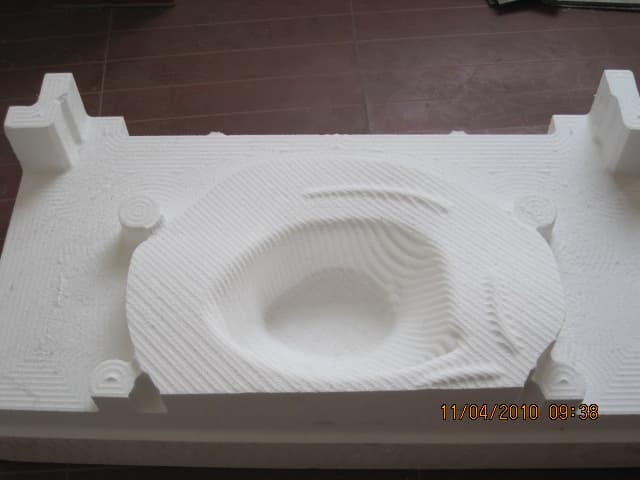

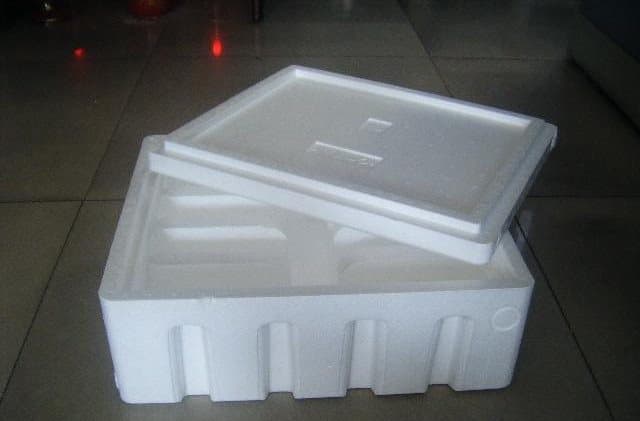

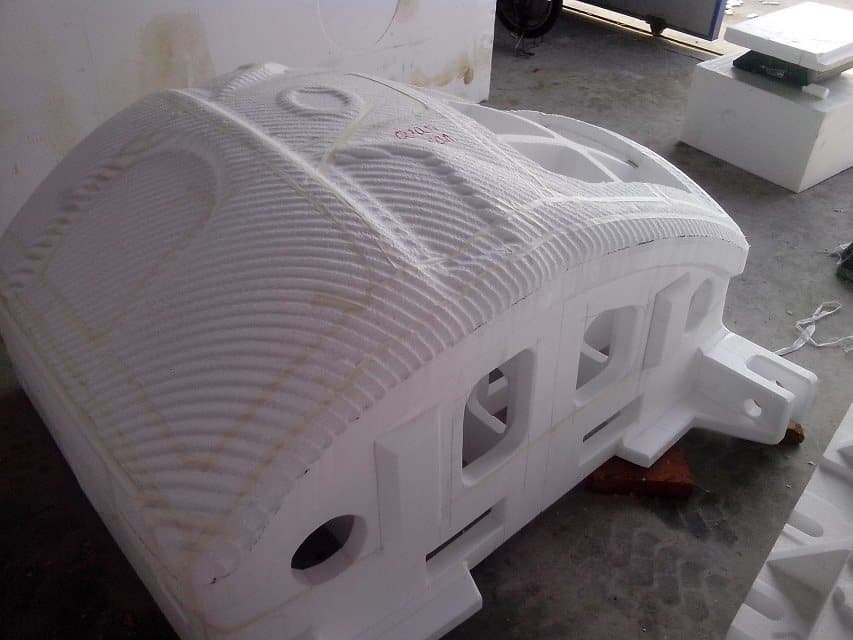

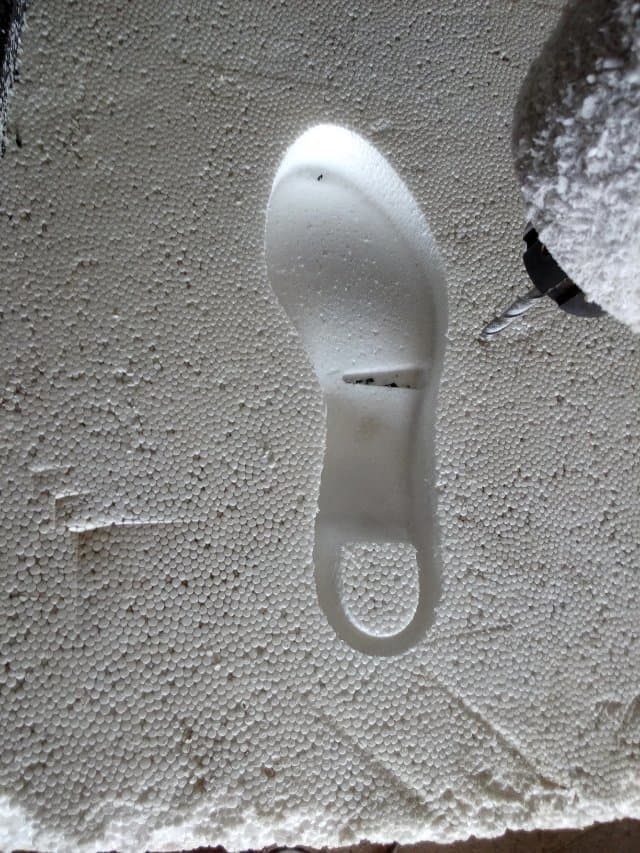

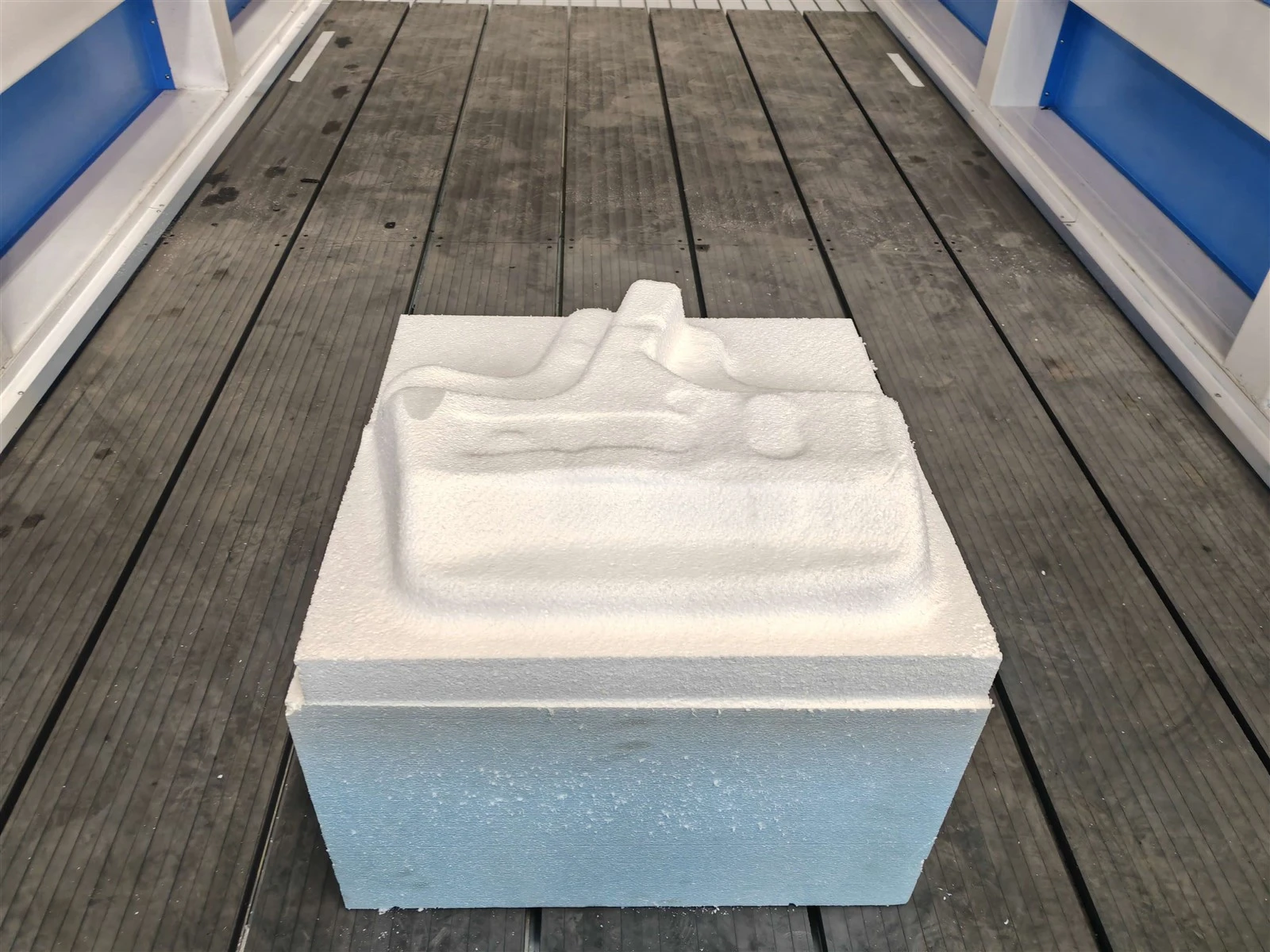

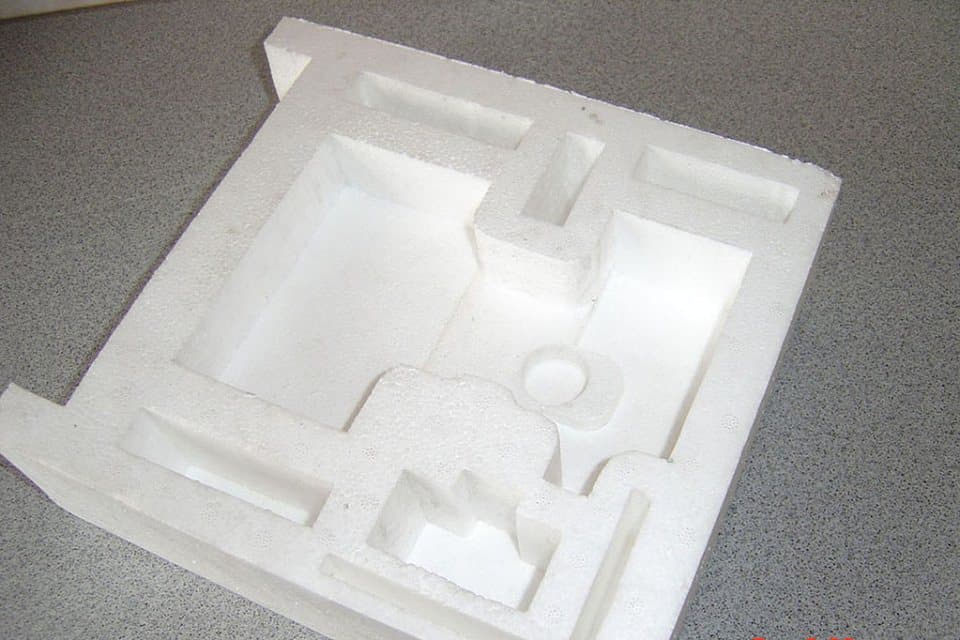

sample photos
