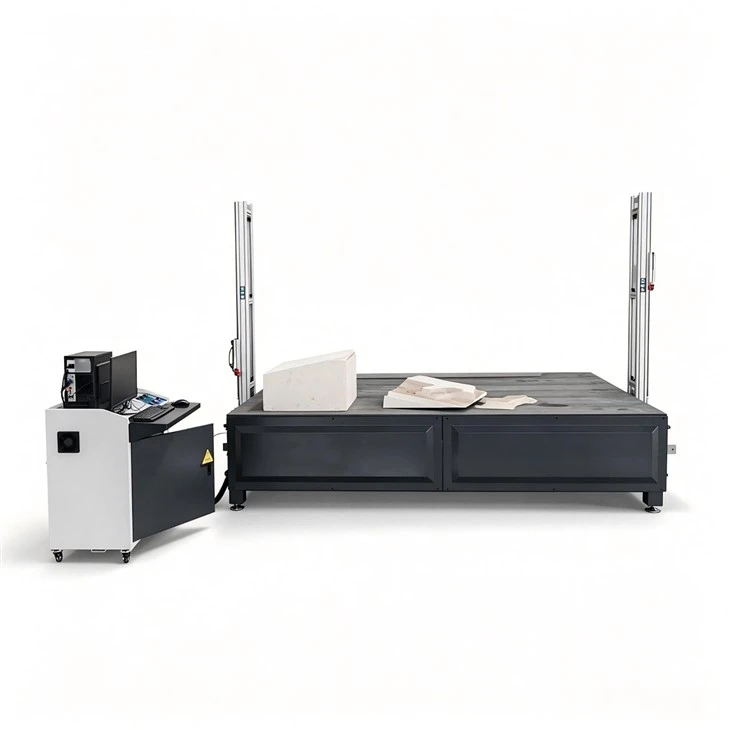

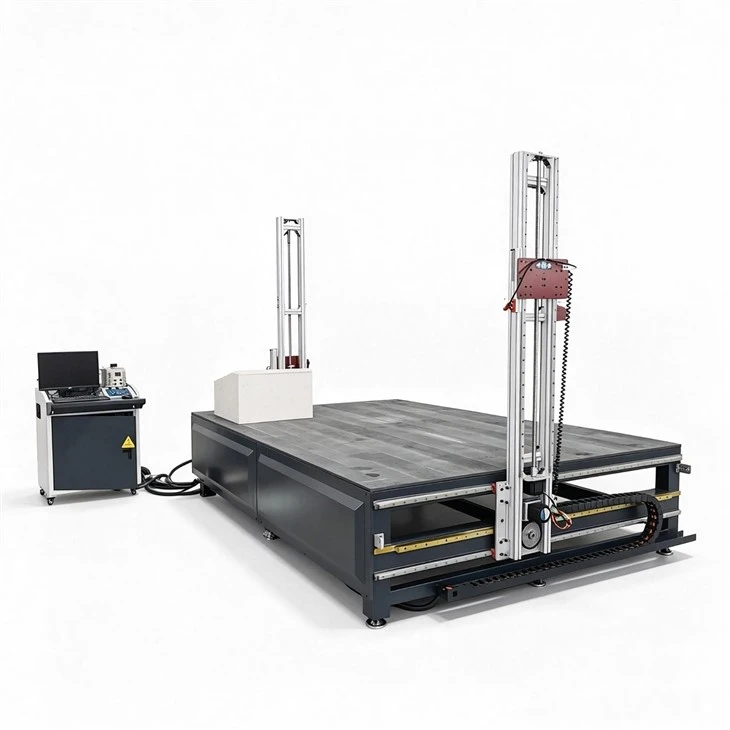

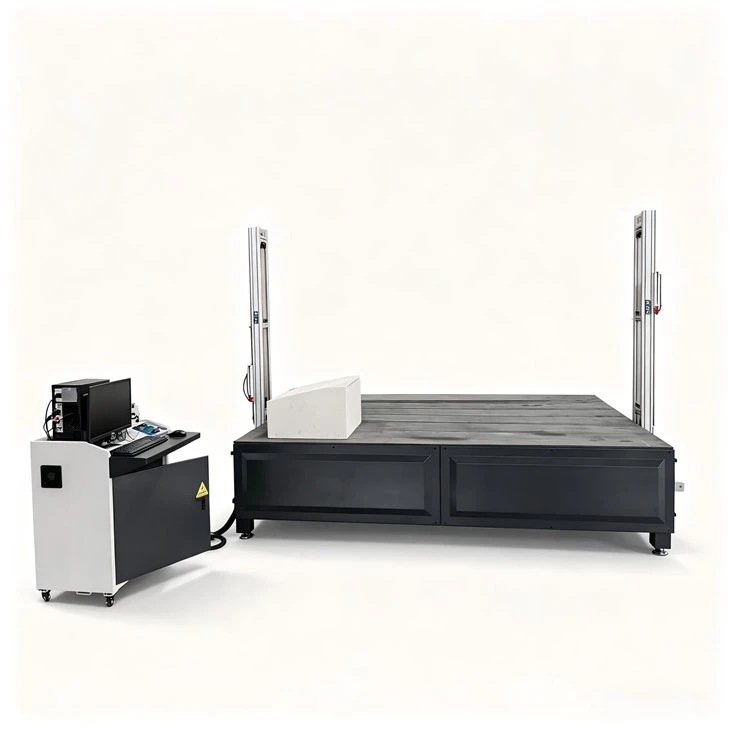

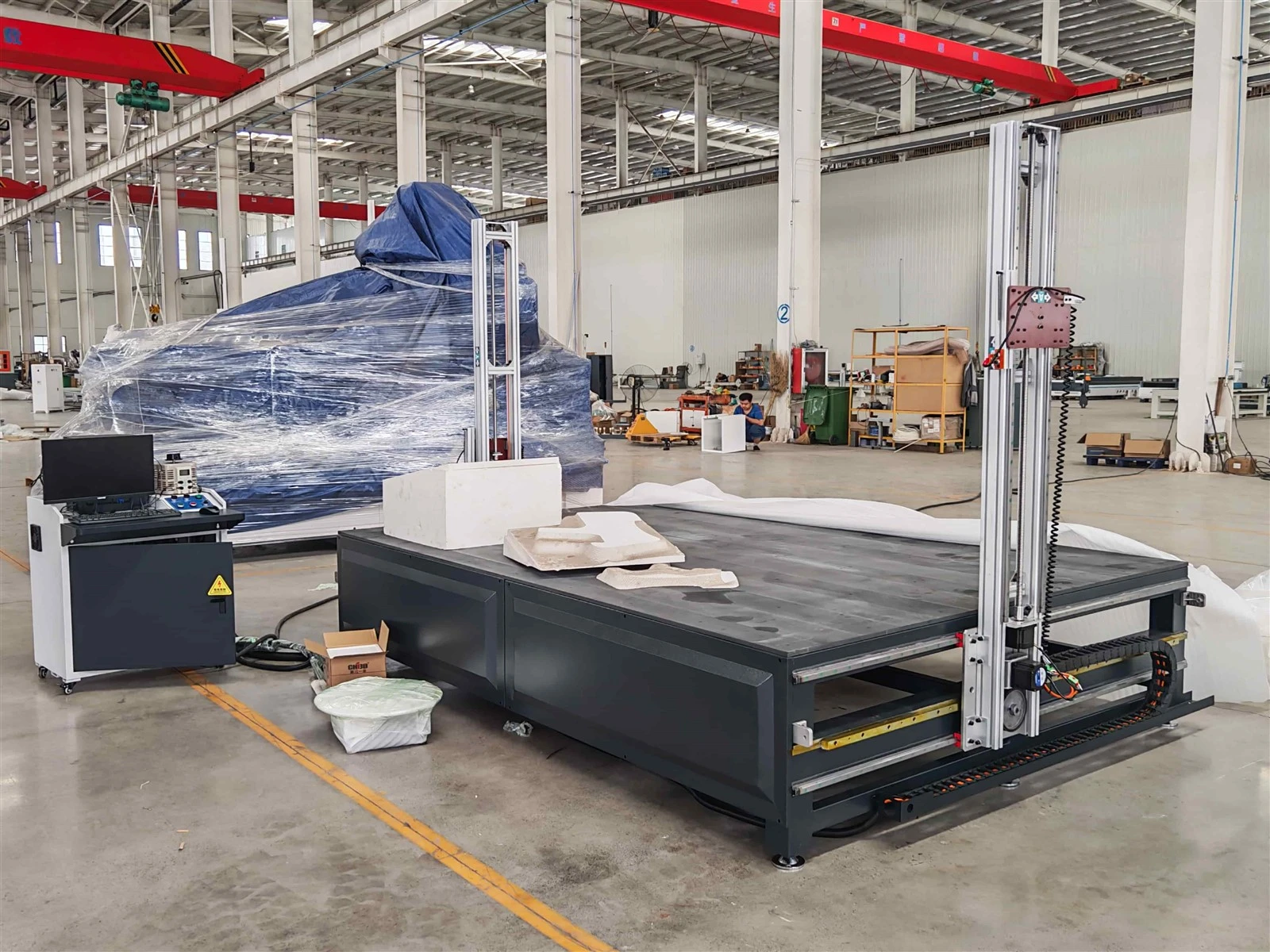

EPS Foam Hot Wire Cnc Cutting Machine

1. Effective cutting size of workbench: 3000mm * 1500mm * 1500mm (length * width * height)

2. X-axis cutting stroke: 3000mm

3. Y-axis stroke: 1500mm (height)

4. System resolution: ± 0.04

5. Cutting precision: ± 0.2mm (factors such as the material of heating wire, environment and the humidity of foam)

6. File format: G-code

7. Bed structure: Thickened square tube welding (precision milling and annealing treatment with five sided milling center)

8. Working voltage: AC220V50Hz

main components

1. Drawing software: AutoCAD/CAXA/programming software: 260 (one click path generation)

2. Control system: Mach3

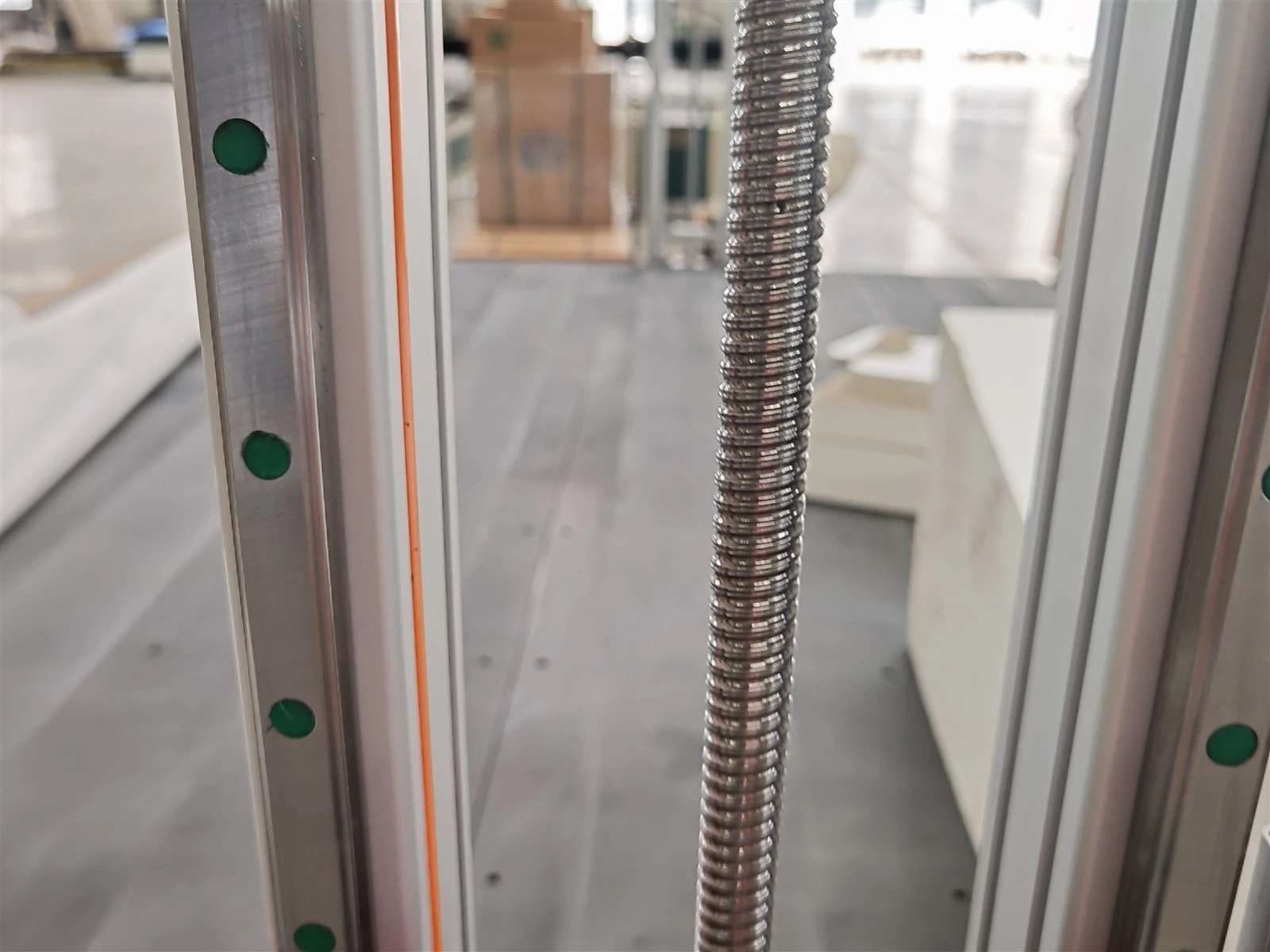

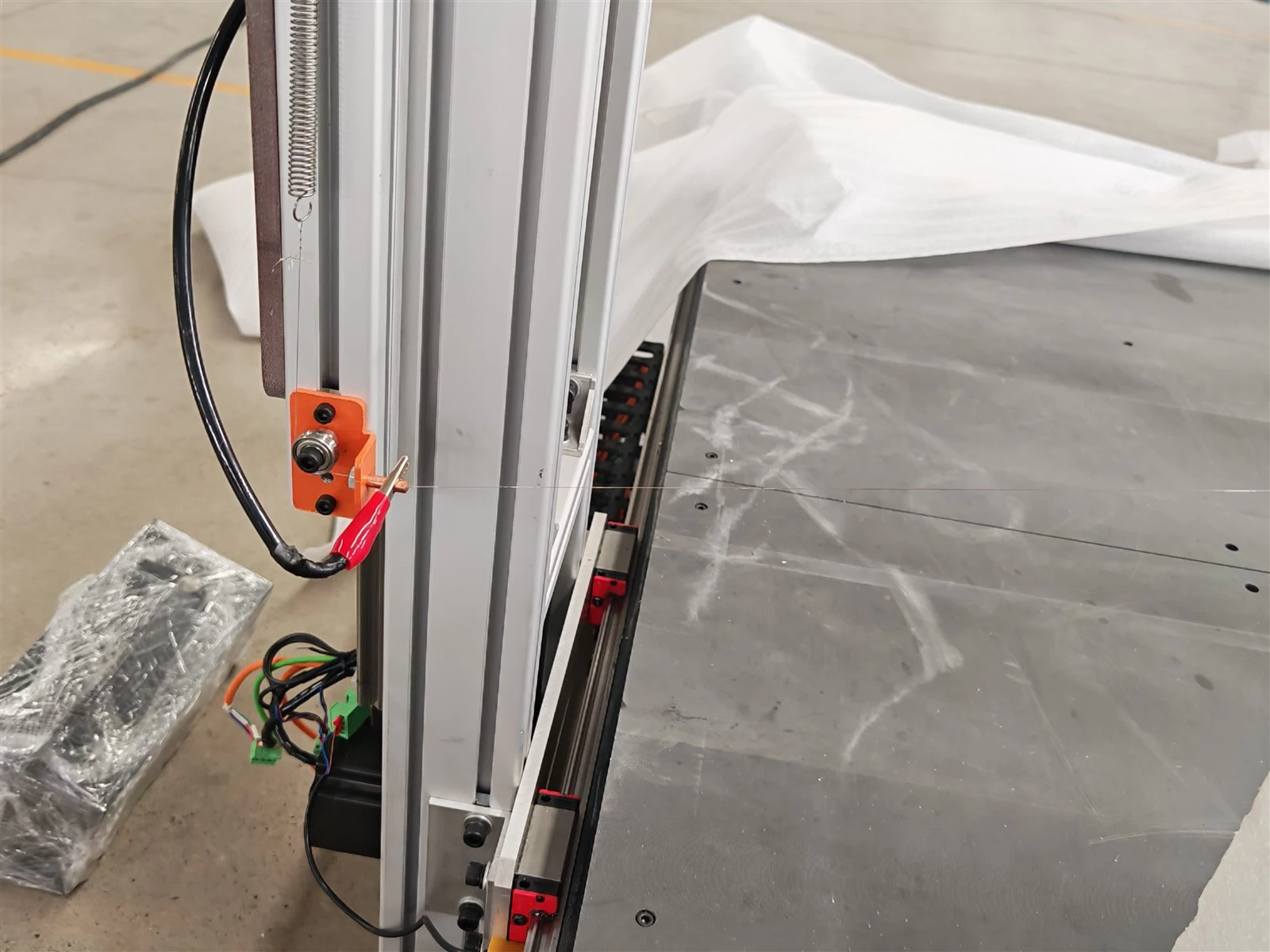

3. Supporting guide rail: high-precision 20 # straight square rail

4. Transmission screw: TBI ball screw

5. Transmission rack: Taiwan high-precision 1.25m helical rack, transmission screw: Taiwan TBI 16 # ball screw

6. Drive: 860 drives * 4

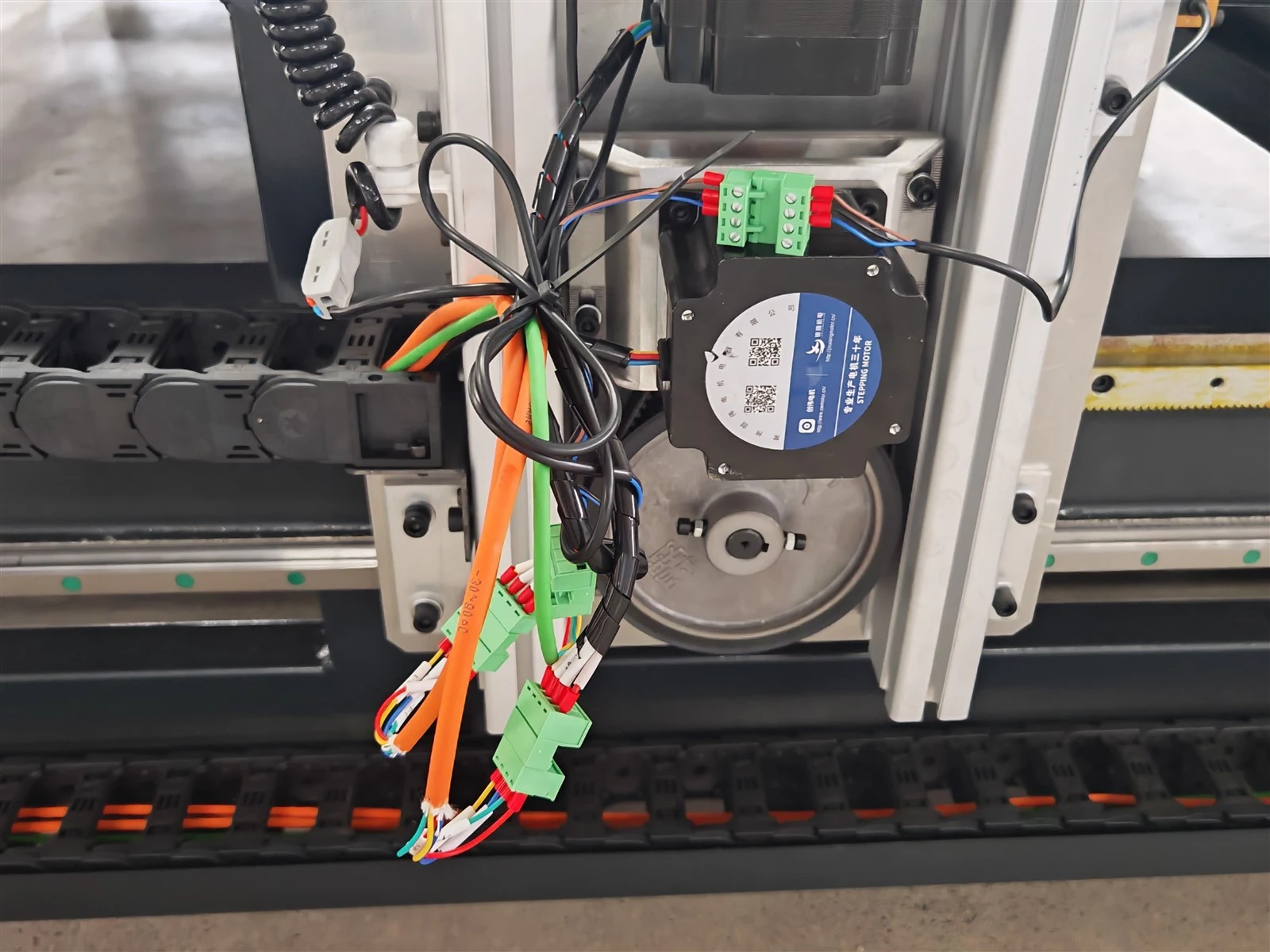

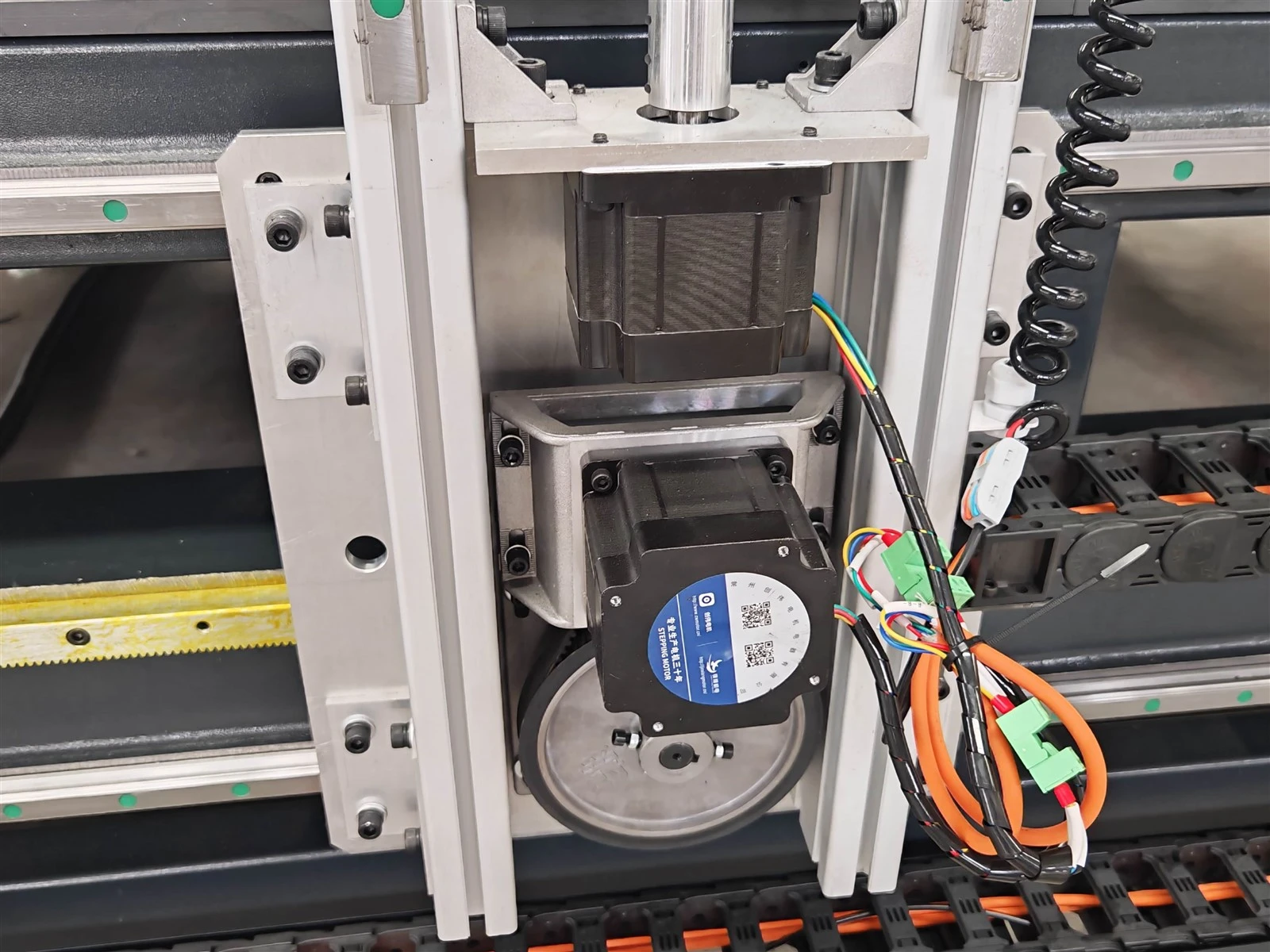

7. Drive motor: High speed stepper motor 450A (chuangwei brand * 4)

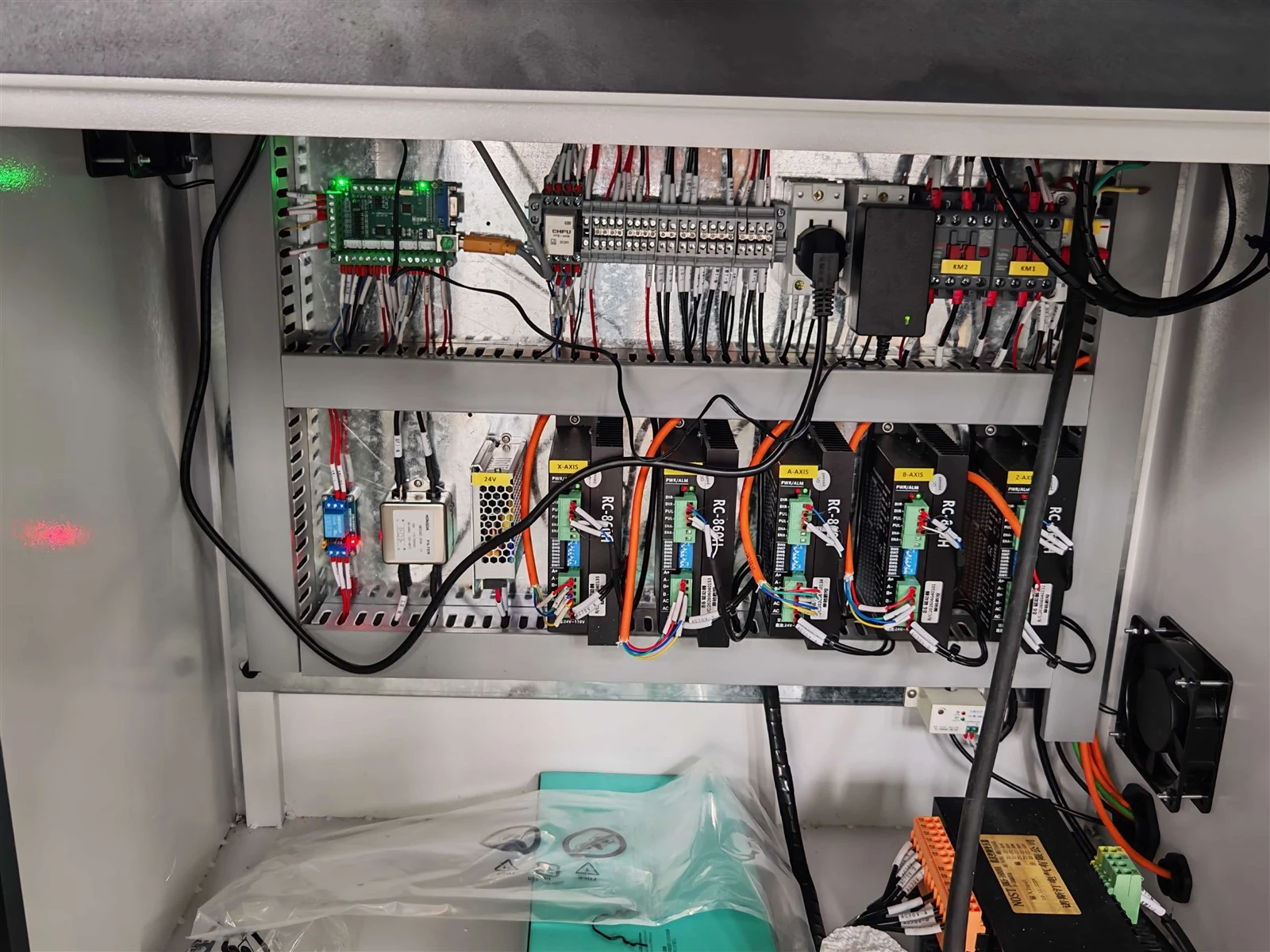

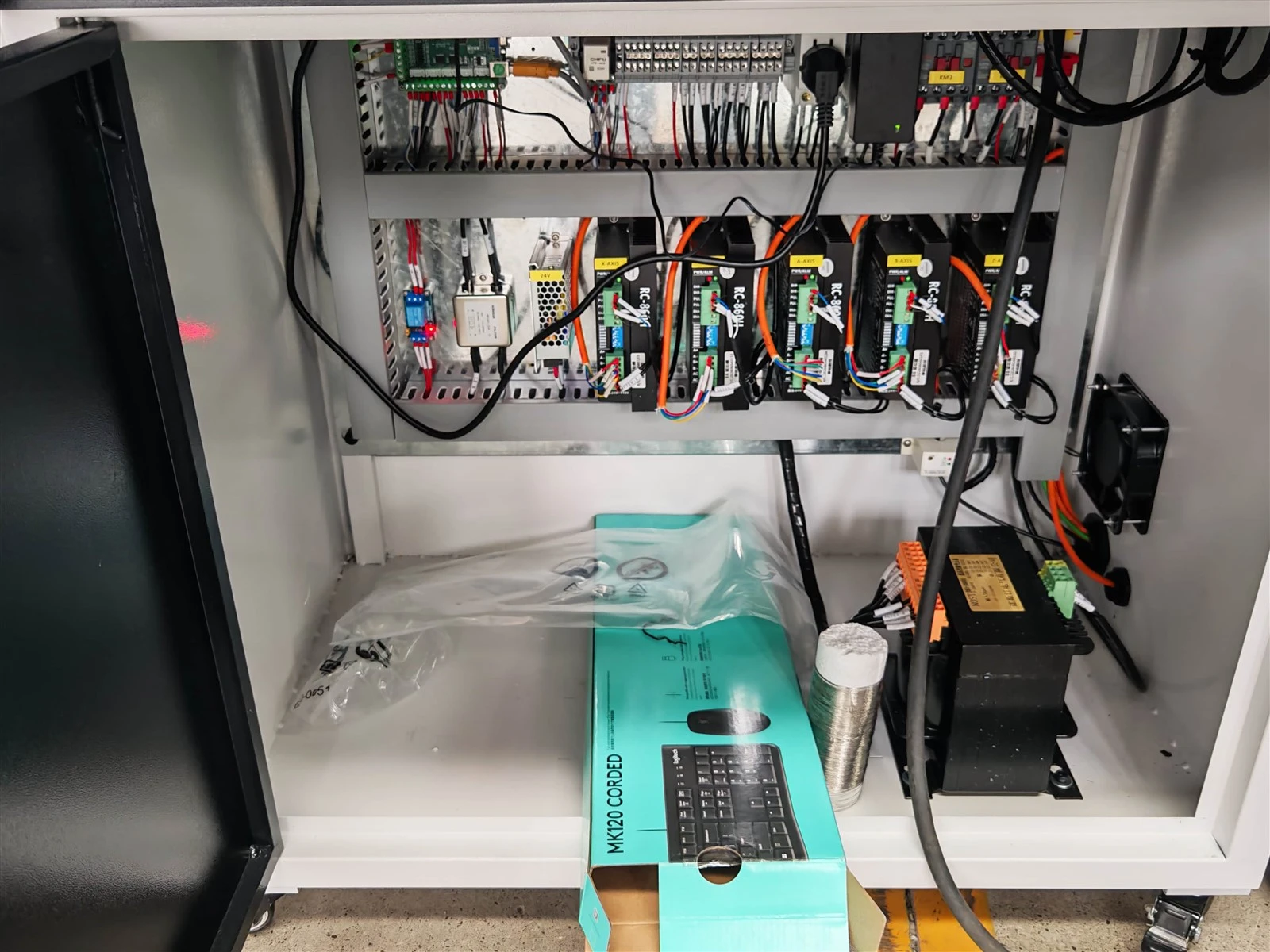

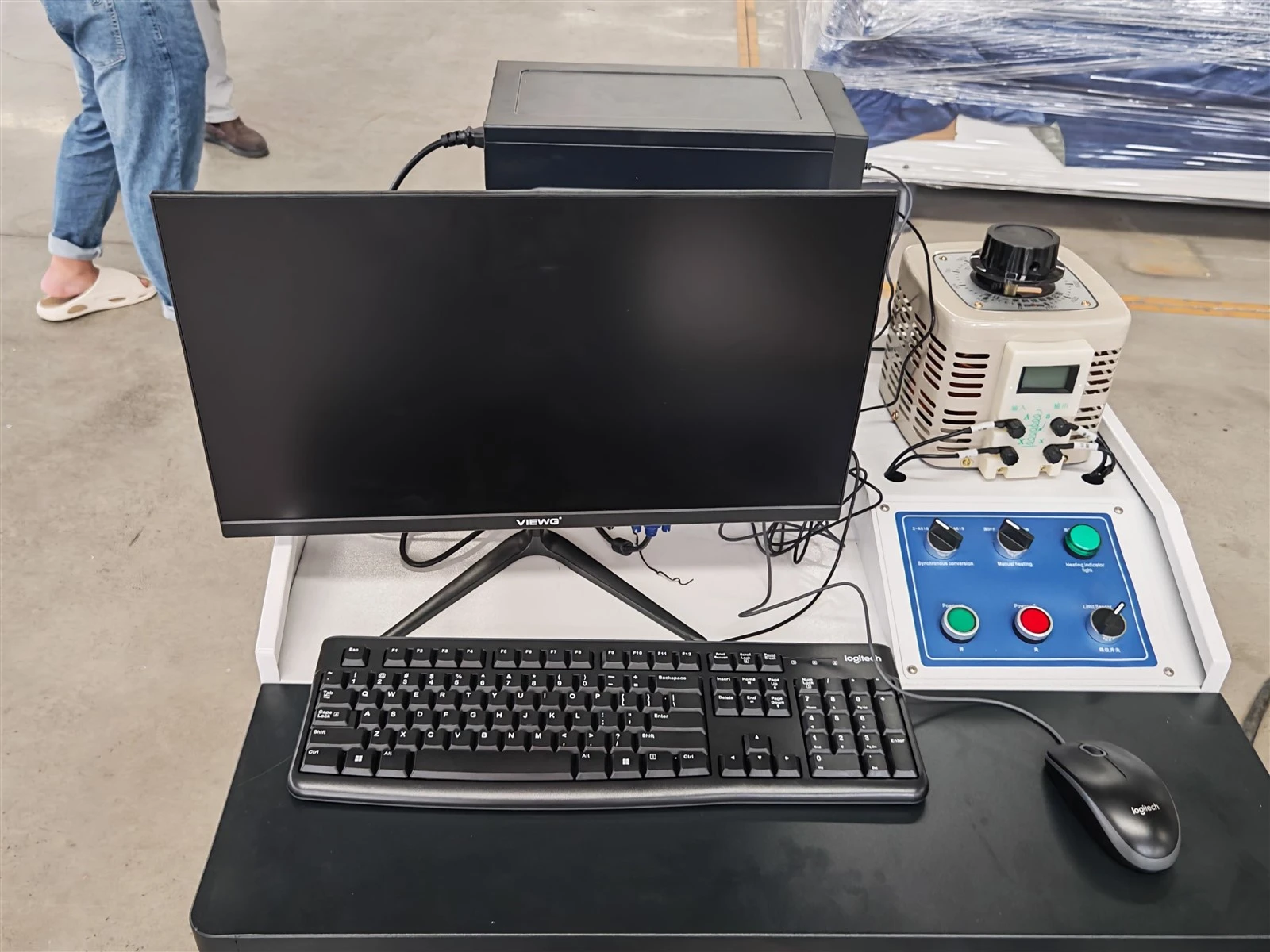

8. Control cabinet: independent computer cabinet

9. Workbench: 20mm high-density polyester board (milled flat on the machining center)

10. Control computer: Professional solid-state drive industrial control computer

11. Voltage regulator power: 1KVA

12. Cutting function: 2D plan cutting

13. Other accessories: well-known domestic brands

14. Voltage: 220V/± 50Hz

15. Total power: 2kW

16. Soft package size: 3600 * 2000 * 1100 (length, width, height)

17. Weight: 800KG

18. 1 roll of electric heating wire
