Tombstone Laser Engraving Machine
This machine is equipped with RUIDA Control System,supports CorelDraw and Auto CAD and other advance software. It must connect to computer with USB cable when you change the settings of files. You can transfer the file with USB memory stick to the machine, or download it to the machine directly with USB cable from computer.
Description
Machine Instruction
ZHONGKE-1390 engraving cutting machine supports multiple graphic formats, such as PLT, ,DXW,BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.
This machine is equipped with RUIDA Control System,supports CorelDraw and Auto CAD and other advance software. It must connect to computer with USB cable when you change the settings of files. You can transfer the file with USB memory stick to the machine, or download it to the machine directly with USB cable from computer. The machine front and back doors can open to accommodate larger materials.
Optional parts
Red-dot Pointer for Laser Head, marking the laser shooting position on the marking materials during the laser engraving or cutting.
2.Industrial water chiller, has a better working performance than water pump.
3.Air Filter Cleaner to help clean the dusts, ashes and smells produced in laser engraving or cutting.
4.Rotary Attachment for working on Round or Cylinder materials as Wine Bottles, Beer Cups, etc.
5.Lifting platform. Lifting platform can help when carve objects within 5cm height. Platform can be adjusted according to the height of the object height in order to make sure the focal length from the laser head to the object without lifting platform.
6.Automatic blowing flame retardant can prevent laser tube from overheating. Adding a switch at the point of water entering in the laser tube to make sure a good security.
Red dot pointer
Water chiller
Air pump
Rotary attachment

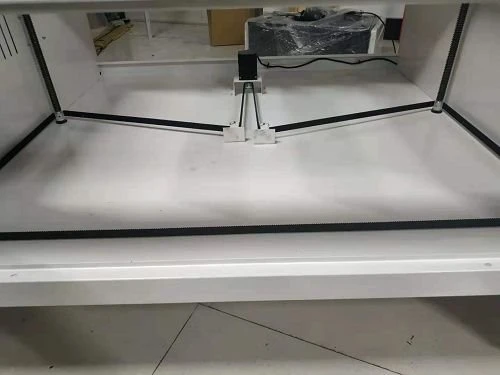

Lifting platform
Machine Specification
Model | ZK-1390 |
Working Table Size | 900mm *1300mm |
Laser Tube brand | YONGLI |
Warranty of Laser tube | for Global Warranty |
Lifetime of Laser tube | 10000 Hours |
Control System | RUIDA |
Working Table | Thickened honeycomb platform or blade platform |
Long material pass through front and back | Support |
Laser Power | All can choose |
Cutting Speed | 1-10000mm/min |
Engraving Speed | 1-60000mm/min |
Resolution | ±0.05mm/1000DPI |
Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) |
Support Files | BMP,HPGL,PLT,DST and AI |
Interface | USB2.0 |
Software | RD works |
Computer system | Windows XP/win7/ win8/win10 |
Motor | Stepper Motor |
Power Voltage | AC 110 or 220V±10%,50-60Hz |
Power cable | European Type/China Type/America Type/UK Type |
Working Environment | 0-45℃(temperature) 5-95%(humidity) |
Power consumption | <2000W (Total) |
Position system | Red-light pointer |
Cooling way | Water cooling and protection system |
Package | Standard plywood case for export |
Warranty | All life free tech support, one year warranty, except consumables |
Optional parts | Spare focus lens |
