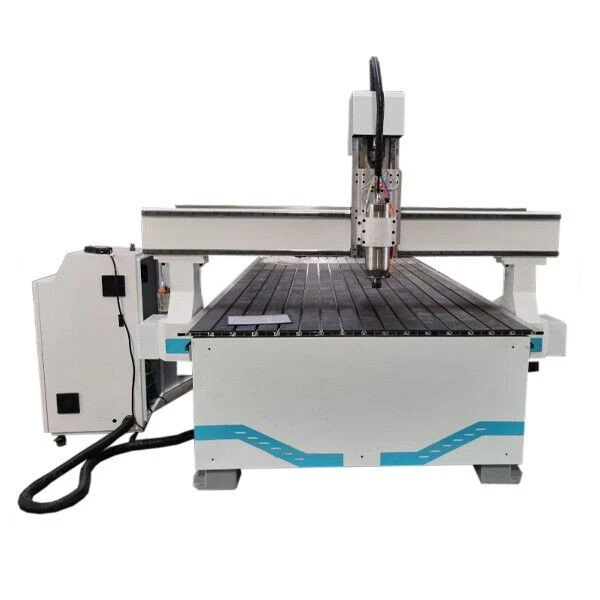

1325 Economic Cnc Router Engraving Machine

Products Description CNC router machine 1325 is an efficient and cost-effective solution for engraving wood doors, wood furniture, and other related products. This machine offers high-precision carving and cutting capabilities to meet the specific requirements of wood-based products. The machine...

Send Inquiry

Description

Product instruction

1. Imported linear square rails, double four ball slider, loading capacity, smooth operation,high precision, long life. Imported high precision ball screws, with high-precision when cut.

2. Vacuum table using high-density material with great suction strength, comfortably accommodating all sizes of work piece.

3. The machine body adopts the overall thick-walled all-steel structure design, and is tempered and tempered by welding. The long-term high-speed operation does not deform and does not shake.

4. The frame adopts the gantry column structure, the machine parts are produced and assembled with extremely high precision to ensure the high performance and stability of the machine, excellent quality and tolerance.

5. Equipped with automatic lubrication system, just push the button simultaneously for all.

Product applications

1. Woodworking Processing of various furniture such as door, window, cabinet, craft wood door, screen, etc.

2. Advertisement Engraving and cutting various labels and number plates.

3. Art craft Engraving characters of any language and graphics on gifts and souvenirs. Balustrade, furniture legs st-air railing, cylinder items, handrail, desk or chair legs, the human body, avatar, 3D cylinder mold, and a variety of rotational symmetry.

Product Specification

Working area	13002500200mm
Spindle power	3.2KW (optional)
Spindle speed	24000RPM
X,Y,Z Traveling Positioning Accuracy	±0.01/2000mm
MAX. Traveling Speed	≥40000mm/min
MAX. Working Speed	≥20000mm/min
Commend Code	G Code
N.W./G.W.	1500kg/1600kg
Package size	3.2m2.2m2.2m
Diameter of tools	3.175, 4, 6, 8, 10, 12.7mm
Runing environment	Temperature:0℃~45℃ Relative Humidity: 30%~75%
Working voltage	220V/380V(customer demand)
