6090 CO2 Laser Engraving Machine
6090 CO2 Laser Engraving Machine
6090 CO2 Laser Engraving Machine

6090 CO2 Laser Engraving Machine

6090 laser engraving machine Feature The 6090 CO2 laser engraving machine is a type of laser engraving machine that uses a high-powered CO2 laser to etch or engrave various materials such as wood, acrylic, leather, glass, and more. The 6090 refers to the size of the machine's processing area,...

Send Inquiry

Description

Products Description

1. Control cabinet

2. Laser tube

3. Laser head

4. knife table

5. RDC 6445G control system

6. water chiller

7. exhaust fan

8.air pump

9.Tool box

Laser cutting processing replaces traditional mechanical knives with invisible beams of light. It has the characteristics of high accuracy, fast cutting, not limited to cutting pattern limitations, automatic layout saving materials, smooth cuts, and low processing costs. It will gradually improve or replace traditional metal cutting process equipment. The mechanical part of the laser blade does not come into contact with the workpiece, and will not cause scratches on the surface of the workpiece during operation; Laser cutting speed is fast, and the incision is smooth and flat, generally without the need for subsequent processing; The cutting heat affected zone is small, the plate deformation is small, and the cutting seam is narrow (0.1mm~0.3mm); The incision is free of mechanical stress and shear burrs; High machining accuracy, good repeatability, and no damage to the material surface; CNC programming, capable of processing any flat plan, capable of cutting large entire boards without the need for mold opening, economical and time-saving.

Products Specification

Power:	AC220±10%, 60Hz
Laser power:	80W
Laser type:	CO2 gas Engraving area: 900x600 mm
Motor type:	Stepper motor
Power consumption:	300W Free speed: 1-200 mm/s (0.04-7.87 inch/s)
Engraving speed:	1-300 mm/s (0.04-11.81 inch/s)
Cutting speed:	1-10 mm/s (0.04-0.39 inch/s)
Engraving cutting precision:	2500dpi
Positioning accuracy:	0.01mm (0.0004 inch)
Minimum forming text:	2x2 mm (0.08x0.08 inch)
Minimum forming letter:	1x1 mm (0.04x0.04 inch)
Material requirements:	Non-metal material
Interface to Computer:	USB Port
Software name:	Shenzhou easy to engrave
Software support:	CorelDraw output
Software environment:	Windows XP, WIN7, WIN8, WIN10 Graphic formats supported: All formats recognized by
CorelDraw	such as JPG, BMP, AI, PLT, etc.
Operating temperature:	5-50℃ (41-122℉)
Cooling way:	Water cooling (water pump include)
Package size:	92x62x40 cm (36.22x24.41x15.75 inch) Gross weight: 25.65 kg (56.55 lbs)

Products Description

Laser head

Laser head

Control mainboard

Control panel

knife table

stepepr motor

up and down table

smoking machine

air pump

water chillers

electric parts

exporting plywood pacakge

Products Sample Photos

tombstone engraving

acrylic cutting

MDF cutting

acrylic cutting

honeycomb table

Up and down table

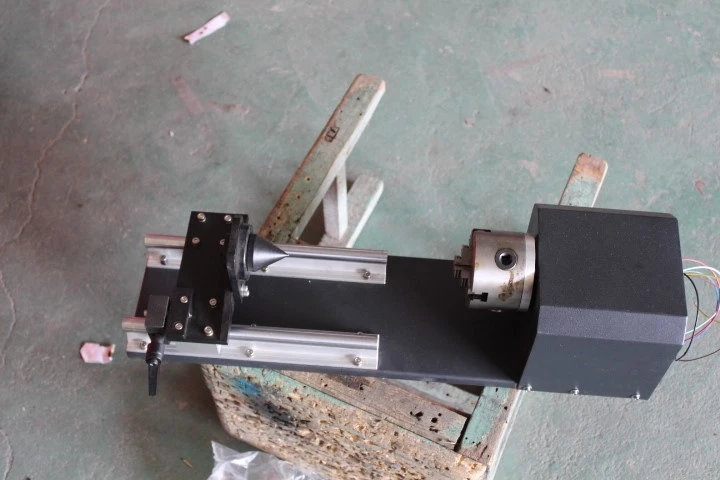

Rotary attachment

honeycomb table

up and down table

rotary attachment

Products Application

CO2 laser cutting machines can also cut non-metallic materials, such as acrylic, acrylic, wood, fiberglass, leather, etc.CO2 laser cutting machines also have applications in the production of decorative products, toys, jewelry and other industries.

Textile processing field: Textile production often requires cutting and cutting, and CO2 laser cutting machines can help enterprises improve production efficiency and product quality. Widely used in industries such as clothing and home fabric.
