Description
Products Specification
|
TYPE
|
ZK-9060
|
ZK- 1390
|
|
Machine size
|
900*600MM
|
1300*900MM
|
|
Machine color
|
white and black, blue and white color, can be optional
|
|
|
Working area
|
900*600mm
|
1300*900mm
|
|
Engraving thickness
|
2mm(depends on material)
|
2mm(depends on material)
|
|
Cutting thickness
|
2cm(depends on material)
|
2cm(depends on material)
|
|
Engraving speed
|
1-1000mm/s
|
1-1000mm/s
|
|
Cutting speed
|
1-500mm/s
|
1-500mm/s
|
|
Laser power
|
60w/80w/100w
|
60w/80w/100w/1350w/150w
|
|

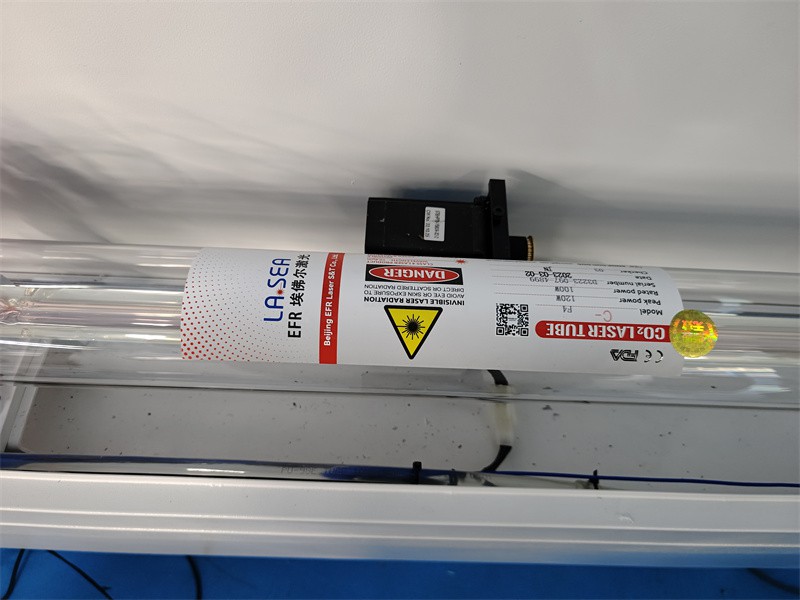

Laser type
|
sealed CO2 laser tube
|
sealed CO2 laser tube
|
|
Cooling mode
|
water cooling protection system
|
water cooling protection system
|
|
Water protection
|
yes
|
yes
|
|
Positioning way
|
red light positioning
|
red light positioning
|
|
Locating precision
|
<=0.01mm
|
<=0.01mm
|
|
Working platform
|
Honeycomb/Blade platform
|
Honeycomb/Blade platform
|
|
Lift range
|
0-250mm
|
0-250mm
|
|
Power supply
|
AC220V/110V 50HZ
|
AC220V/110V 50HZ
|
|
Net weight
|
180kg
|
380kg/420kg
|
|
Package
|
Standard plywood case
|
Standard plywood case
|
|
System environment
|
WindowXP/win7/8/10
|
WindowXP/win7/8/10
|
|
Control software
|
Coreldraw/RUIDA V8
|
Coreldraw/RUIDA V8
|
Products Description

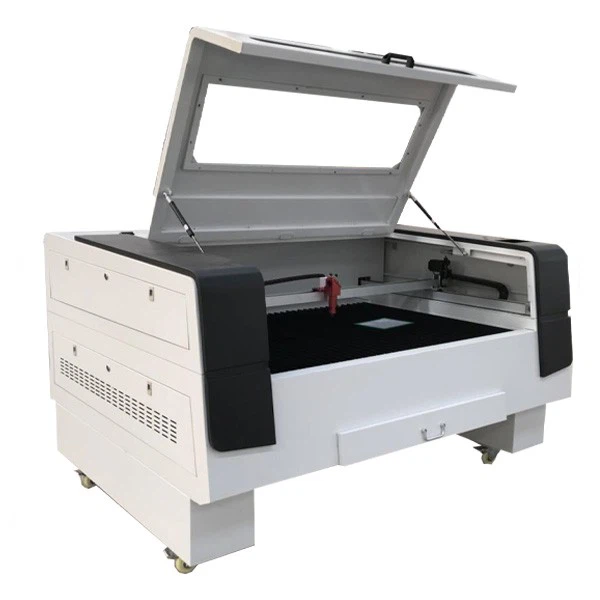

The 1390 CO2 Laser Engraving Cutting Machine is a high-precision medium-to-large-scale laser device suitable for cutting and engraving non-metallic materials. It is widely used in advertising, furniture, handicrafts, packaging and other industries.
Advantages
High-Precision Cutting
The equipment utilizes imported laser lenses and a stable optical system, achieving a cutting accuracy of ±0.1mm.
Large-Format Processing
The 1390 worktable measures 1300 x 900mm, capable of cutting large-sized panels in one go.
Intelligent Control System
The machine utilizes a DSP CNC control system, supports multiple formats (AI, DXF, and PLT), and features an intuitive user interface.
Environmentally Friendly Design
Equipped with an industrial-grade fume exhaust system and dual-circulation cooling system, it effectively reduces smoke and dust pollution and extends equipment life.
Products Detail Photos
Products Application
Advertising: Cutting acrylic, PVC, and two-color boards for billboards and light boxes.
Furniture Decoration: Cutting wood and bamboo boards for hollowing and decorative panels.
Crafts and Gifts: Cutting and engraving paper, fabric, and leather.
Packaging: Die-cutting and proofing cartons and films.
Sample Photos
MDF engraving and cutting
![200862616491868950[1].jpg](/Content/uploads/2023228065/20230901144808b777effd4ad5404ba27f964ad719e5bc.jpg "product-1-1")
plastic cutting
![20111219133914335[1].jpg](/Content/uploads/2023228065/20230901144844322a9d59668d441abf9a95e06b546ecc.jpg "product-254-168")
acrylic engraving and cutting
PVC cutting
Spare parts Photos

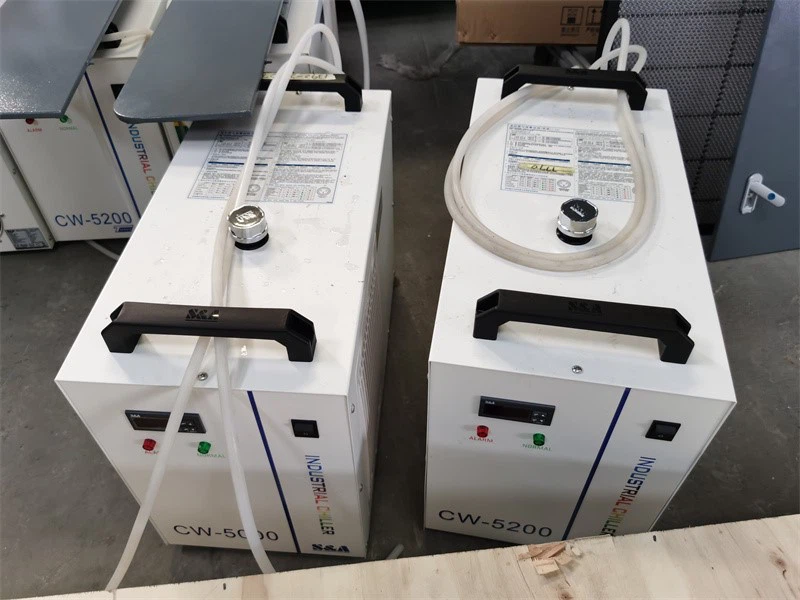

Water chiller

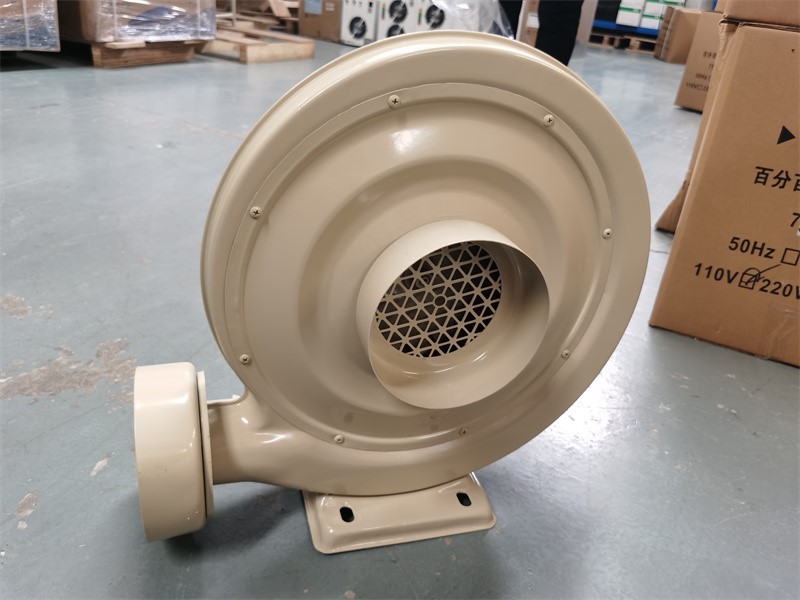

Smoking machine
Air pump
FAQ
Company Overview
Production and Product Lines
The company's 20,000-square-meter factory focuses on the research and development and production of panel furniture production lines, CNC machine tools, woodworking and quartz stone processing centers, laser side hole drilling, six-sided drilling, and automated production lines.
Quality Certification
We have registered the "Zhongke" trademark, established a quality management system, and obtained ISO9000 and CE certifications to ensure product quality and export compliance.
Market Layout
Our products are exported to Southeast Asia, the Middle East, Africa, Europe, and the United States, with foreign trade accounting for 40%. Customer repurchase rate and export volume are steadily increasing.
FAQ
Q: What materials can this machine cut?
A: It is suitable for non-metallic materials such as wood, acrylic, leather, fabric, paper, rubber, and plastic, but not suitable for cutting metal.
Q: What is the lifespan of the laser tube? Is the replacement cost high?
A: The normal lifespan of a laser tube is over 8,000 hours, and the replacement cost accounts for approximately 10% of the total machine cost. Maintenance is simple.
Q: How fast does the machine cut?
A: Depending on the material thickness, the cutting speed can reach 0-500mm/s, and the engraving speed can reach up to 600mm/s, meeting the needs of mass production.
Q: Does wholesale purchase offer OEM customization?
A: Customer branding, color customization, and feature upgrades are supported, and the minimum order quantity can be flexibly adjusted according to customer needs.
Q: Is transportation and installation convenient?
A: The machine comes in shockproof packaging and can be shipped by sea or land. Upon arrival, we support remote video installation guidance, and we can also dispatch engineers for on-site commissioning.
Q: What is the after-sales service for wholesale customers?
A: The entire machine is under warranty for 12 months, excluding the laser tube and lens. We provide 24/7 technical support, and overseas customers can enjoy local agency services.
