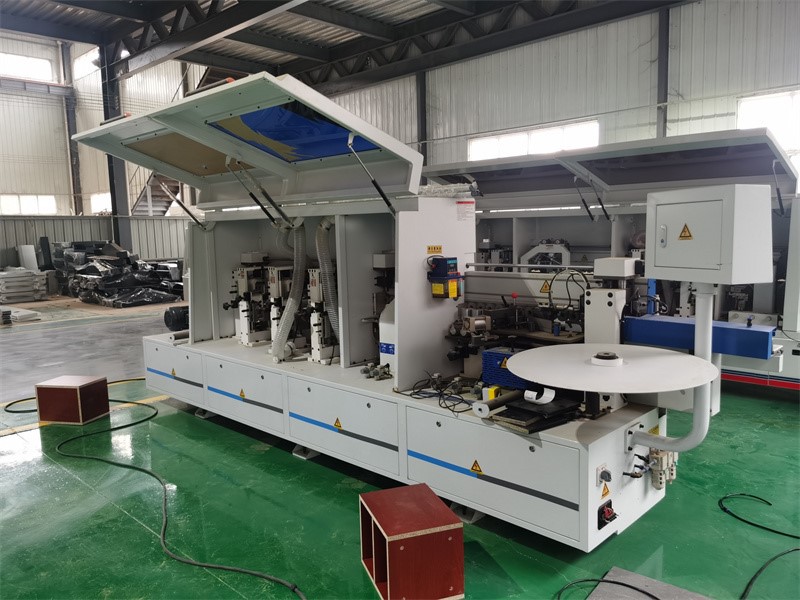

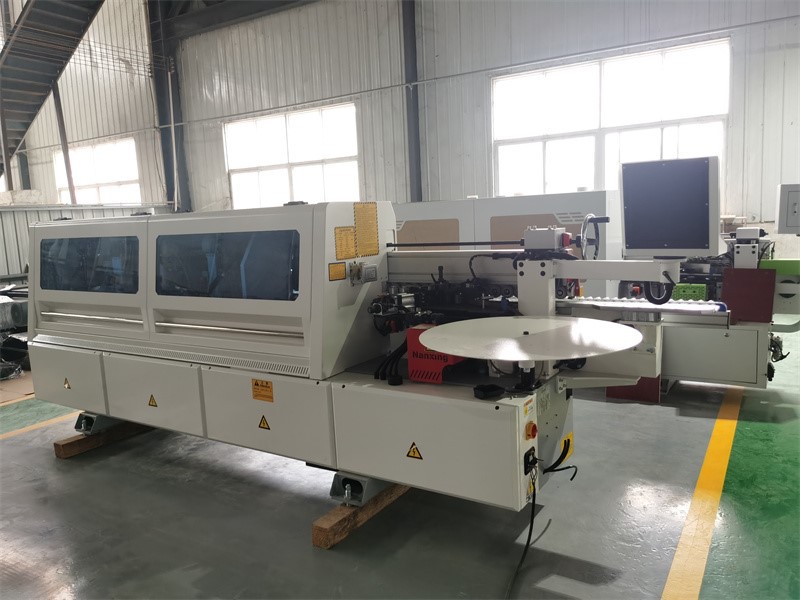

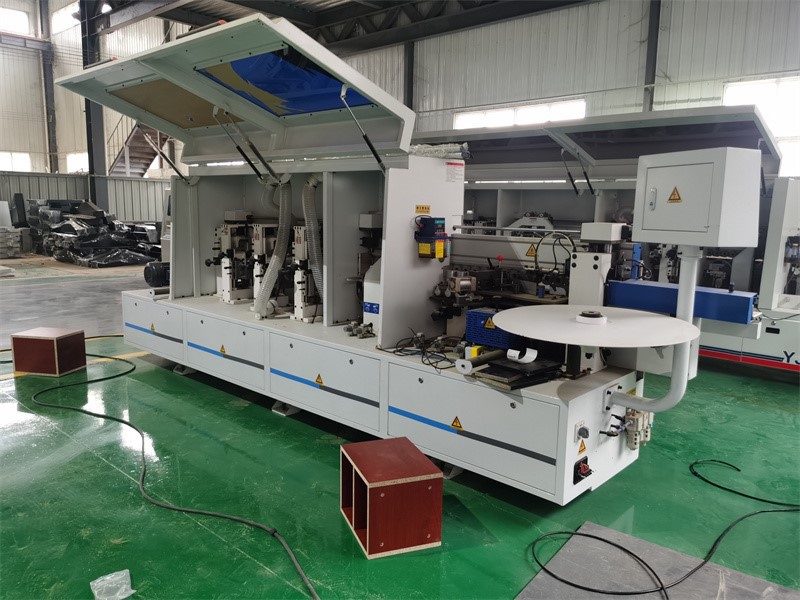

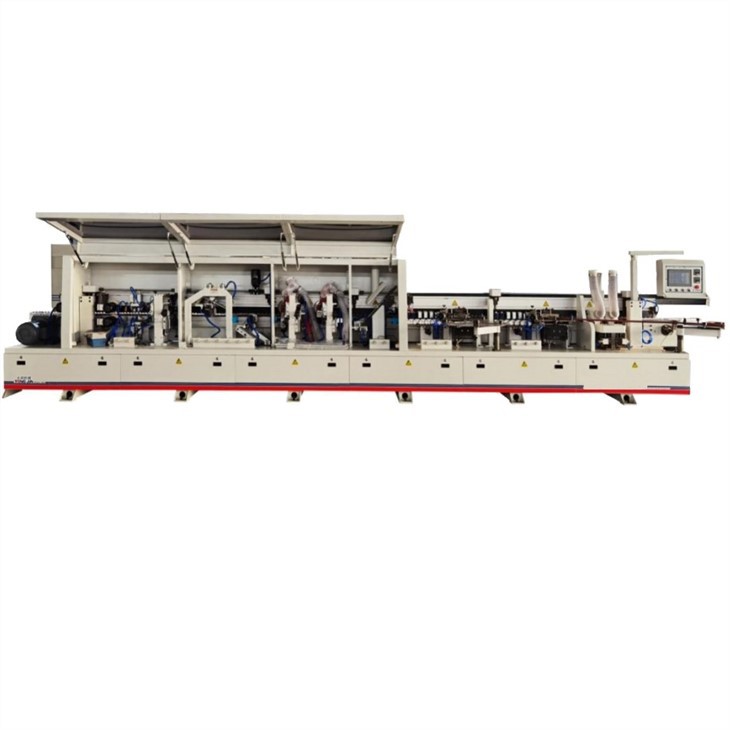

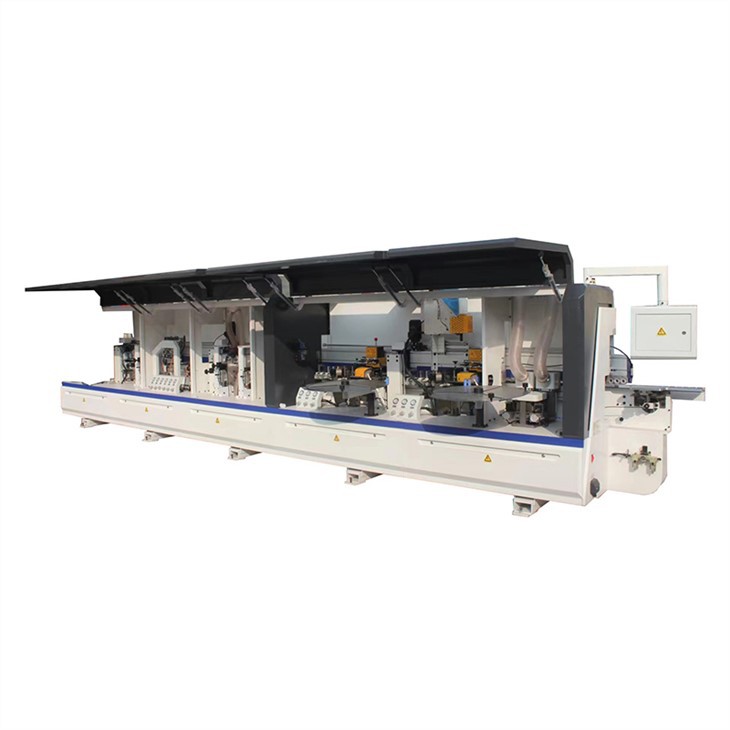

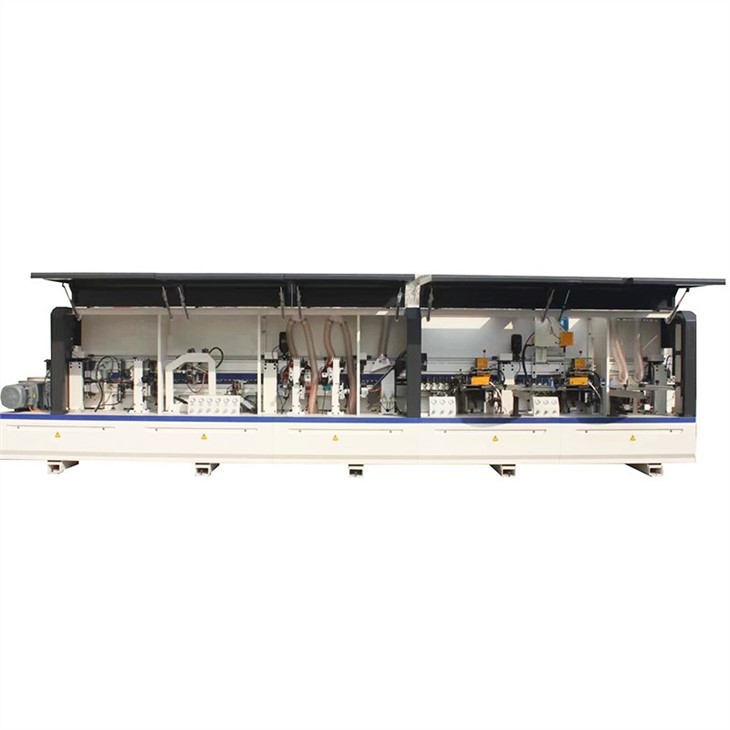

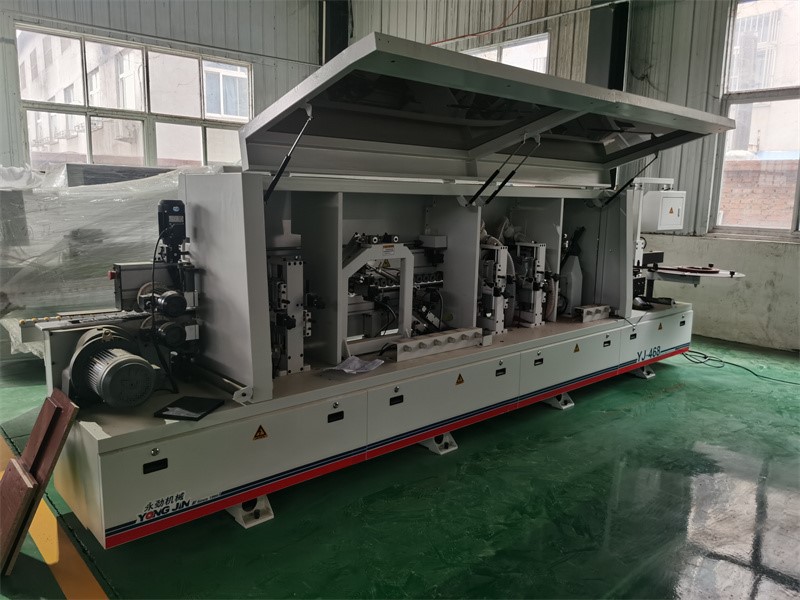

Automatic Edge Banding Machine

 This machine is suitable for linear edge banding and trimming of MDF, blockboard, solid wood board, particle board, polymer door board, plywood, etc. It can be provided with double-sided adhesive edge banding belt cutting edge banding belt bonding and pressing, end trimming, chamfering, rough trimming and fine trimming at one time

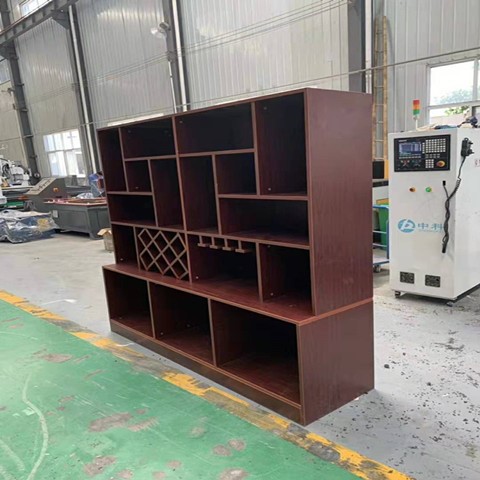

With the functions of scraping and polishing, the edge sealing is fine, smooth, and has a good feel, and the sealing line is straight and smooth. The equipment is stable, reliable and affordable, especially suitable for manufacturers of large and medium-sized furniture, cabinets and other panel furniture.

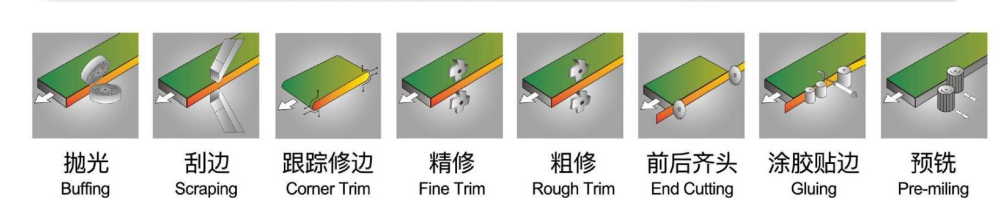

Pre-milling: double milling cutters are used to modify the ripple marks, burr or non-vertical phenomenon caused by the cutting saw after cutting, so as to achieve better edge sealing effect. It makes the binding between the edge banding strip and the plate more close, and the integrity and aesthetics are better.

Gluing and edge sealing: through the  structure, the edge sealing plate and edge sealing material are evenly glued on both sides, and the * * * bonding force is stronger.

End trimming: through the linear guide rail movement the profiling automatic tracking and high frequency high-speed motor fast cutting structure are adopted, and the cutting section is flat and smooth.

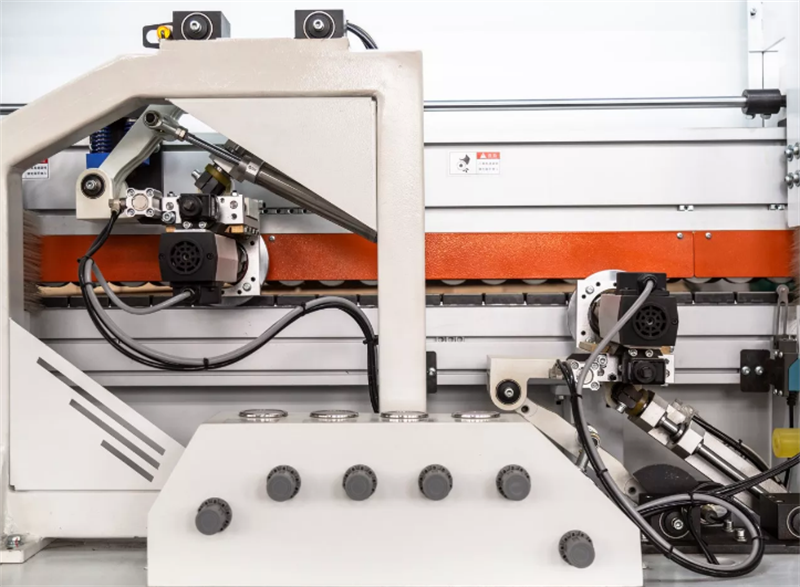

Fine trimming: all adopt profiling automatic tracking and high-frequency high-speed motor structure, and the upper and lower parts of the * * trimmed plate are flat and smooth. It is used to repair the excess edge banding material on and off the edge banding strip of the processed plate. The finishing knife is R-shaped. It is mainly used for PVC and acrylic edge banding of panel furniture, and the edge banding with thickness of more than 0.8mm is preferred.

Edge scraping: It is used to eliminate the ripple marks caused by the cutting process of the non-linear movement of the edge trimming, so as to make the upper and lower parts of the plate more smooth and tidy.

Polishing: clean the processed plate with a cotton polishing wheel, and make the edge sealing end face more smooth through polishing.

Slotting: It is used for direct slotting of the side plate and bottom plate of the wardrobe, so as to reduce the process of panel sawing and make it more convenient and fast; It can also be used for slotting the aluminum edge of the door panel.

detailed description

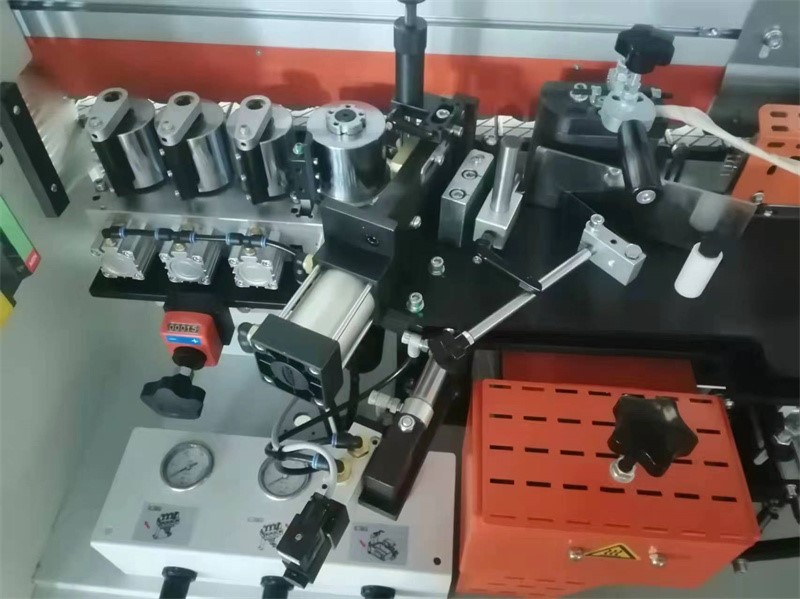

Double-sided gluing, the edge banding belt and the base material are uniformly glued at the same time, and the stepless speed regulation is straight and irregular, and the electronic time control and travel control are accurate in the length of belt feeding and cutting.

There are different types of automatic edge banding machines that are available in the market. The most common ones are:

1. Single-sided edge banding machine - This machine can edge band only one side of the panel at a time. It is the most basic type of edge banding and is suitable for small scale production or home workshops.

2. Double-sided edge banding machine - This machine is equipped with two working units that enable simultaneous processing of both sides of the panel, significantly increasing productivity.

3. Contour edge banding machine - This machine is designed for edge banding irregularly shaped workpieces, including curved and rounded edges.

Conclusion

In summary, Automatic edge banding machines are an essential tool for the manufacturing industry, enabling fast, efficient, and high-quality edge banding. The choice of the right machine will depend on the intended use, size of production, and the size and type of materials that need edge banding. With their features and benefits, automatic edge banding machines are a valuable investment that saves time, money, and energy while producing a consistent and aesthetically appealing finish.
