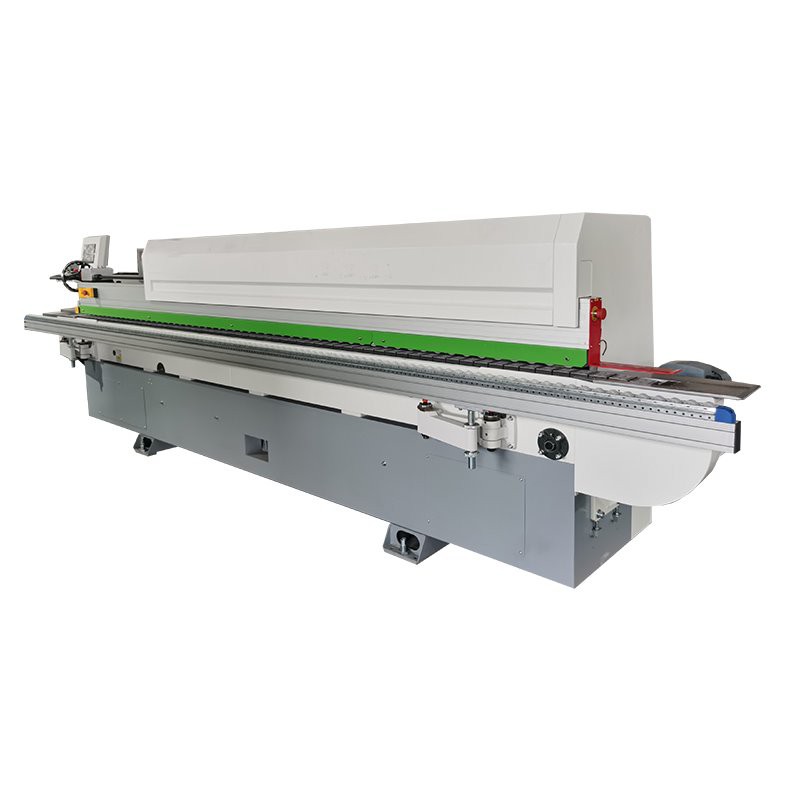

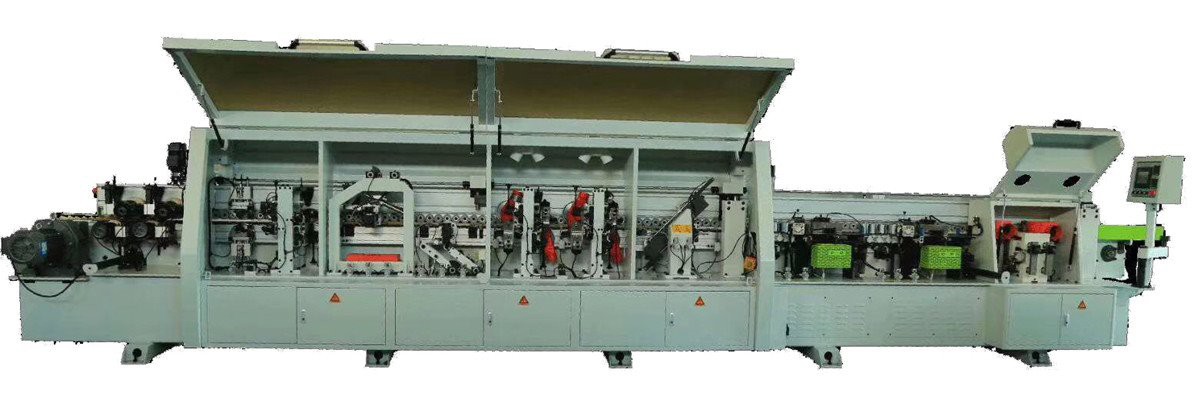

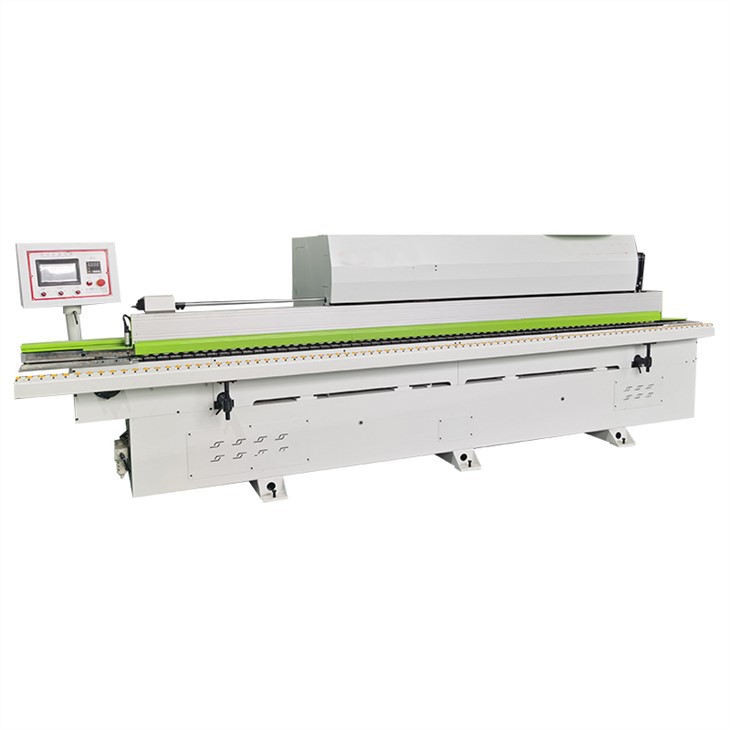

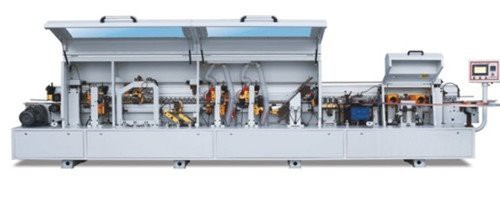

Semi Automatic Edge Banding Machine

Name: China Semi Automatic Edge Banding Machine Manufacturers Suppliers Factory - Good Price
Brand: ZHONGKE
SKU: 193008905

Send Inquiry

Description

Function configuration：

Premilling → End trimming → rough trimming → fine trimming → Corner trimming → scraping 1 → scraping 2 → Buffing 1 → Buffing 2

Technical Data：

Feed Speed：12-23mm/min
Panel Thickness：10-60mm
Edge Thickness:0.4-3mm
Panel Width ：≧80mm
Working Pressure ：0.6Mpa
Overall Size(l*W*H)：8000*1000*1600mm
Net Weight：2000kg

Cutters configuration:

Pre-milling cutter 1 set;
Strip cutter 1 set;
Uniform saw blade 1 set;
Rough cutter 1 set;
Fine cutter 1 set;
Tracking cutter 1 set;
Scraper 1 set;
Flat scraper 1 set

Main configuration for this machine:

DELTA display screen	1 piece
Schneider AC contactor	8 pieces
LS/LG PLC	1 set
Korea KAIKUN tour switch	5 pieces
YIRI brand approaching switch	1 piece
SUPAI brand solenoid valves	6 pieces
YIRI brand cylinder	4 pieces
Pre-milling motor, trimming motor (0.75KW), alignment motor (0.37KW), tracking motor are all produced in Changchuan.
SHENGBANG brand conveyor motor 2.2KW
lifting motor and polishing motor are all produced in Tengwan, Guangzhou
Qitou Wire German Import (Igus) Other Wires for the Great Wall and Pearl River brand
bearing	Imported Japan brand
Guide rails	Imported brand guide rails

Application:

Major production board furniture edge sealing workpiece, suitable for melamine board, medium density board, plywood (plywood). Various types of rolled edge-sealing tapes can be used, including PVC/ABS/acrylic edge-sealing materials, pressing system, to ensure the smooth conveying of sheet metal in the process of edge-sealing, and the maximum speed can reach: 24m/min. It is equipped with double-knife tracking copying mechanism to avoid manual chamfering, improve production efficiency and product quality.

Machine Feature:
Unilateral machine is suitable for all kinds of rolled PVC, ABS, acrylic and other edge-sealing bands with unilateral edge-sealing. It can complete the straight edge-sealing and subsequent processing of the workpiece at one time. Laser cutting of steel plate, welded in one time, eliminating internal stress by natural aging
Safety Device: All equipment conforms to relevant national standards. Cylinder limits the distance between feeding plates to protect the normal operation of each component.

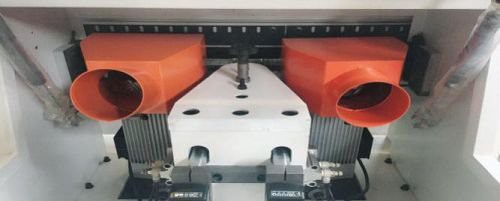

Pre-milling device:
Two motors, each with a power of 3.7KW, 170Hz and 1200rpm/min, are used to finish and trim the edges of the workpiece before gluing. Two motors adopt electronic pneumatic control for indirect milling Feeding guide plate adjusts the pre-milling quantity. Two diamond pre-milling cutters, specifications: 1253530 Z3+3 Plate Cleaning and Blowing Device Independent vacuum cover

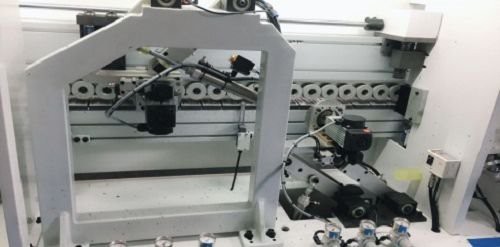

Front and rear alignment device:
45 Degree Precision Linear Guide Structure Two 0.37KW motors, frequency 200Hz, speed 1200rpm/min Two blade saw blade
Roughening device:
Two motors, each 0.75KW, frequency 200Hz, speed: 1200rpm/min Two roughing knives Equipped with Independent Vacuum Cleaning
Refinement device:
Two motors, each 0.75KW, frequency 200Hz, speed: 1200rpm/min two finishing knives Equipped with Independent Vacuum Cleaning

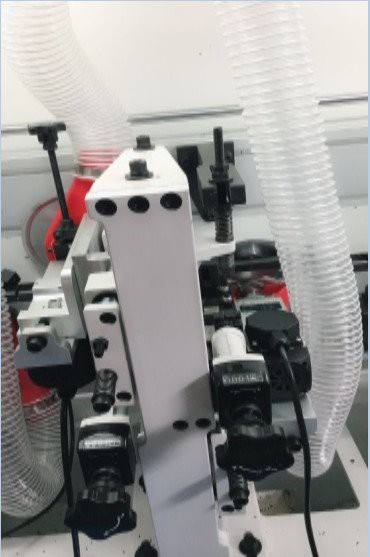

Tracking trimming device:
Repairable rounded corners on both sides Double motor trimming profile, each motor power 0.3 KW, frequency 200 Hz, speed 1200 rpm/min Two profiling knives
Edge scraper:
Scraper blade radius R2 Equipped with electronic pneumatic control blowing

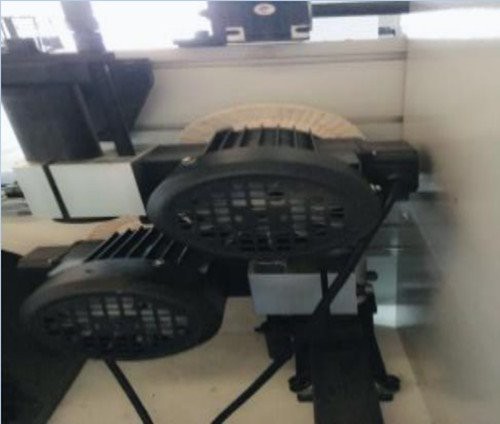

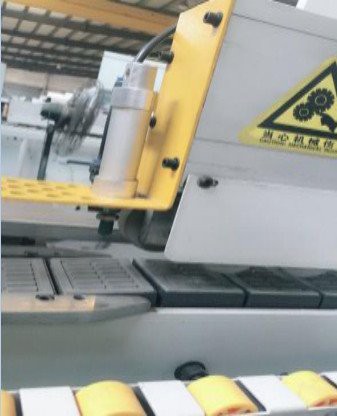

Polishing device:
Polishing of Longitudinal Edge of Workpiece Good effect of debris removal and dust removal

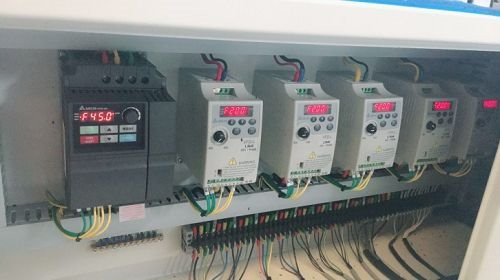

Electrical apparatus:
Input Voltage 3-220 V, 50 Hz Independent frequency converter control with motor braking function; Phase sequence protection device; It meets the national standards for customs clearance.
Control system
Overall Setup Control of PLC 7-inch Industrial Touch Screen Display One key start, energy saving and environmental protection, and various safety warnings.
