3d 4040 Cnc Router Machine With Rotary
Products Description # High accuracy Taiwan TBI ball screw is more stable and has much higher precision than the common screw. # X Y Z high quality Taiwan Hiwin linear rail has much longer life 10 times of life-time than round guide; It is stable and hard to distort. # Chinese top brand HQD...
Description
product Instruction
3d 4040 Cnc Router Machine With Rotary is a small CNC router designed for precision engraving and cutting of metal, wood, acrylic and other materials.
Advantages
High-Precision Machining
The 4040 structural design and high-rigidity cast iron bed, along with ball screws and linear guides, ensure repeatability of ±0.02mm.

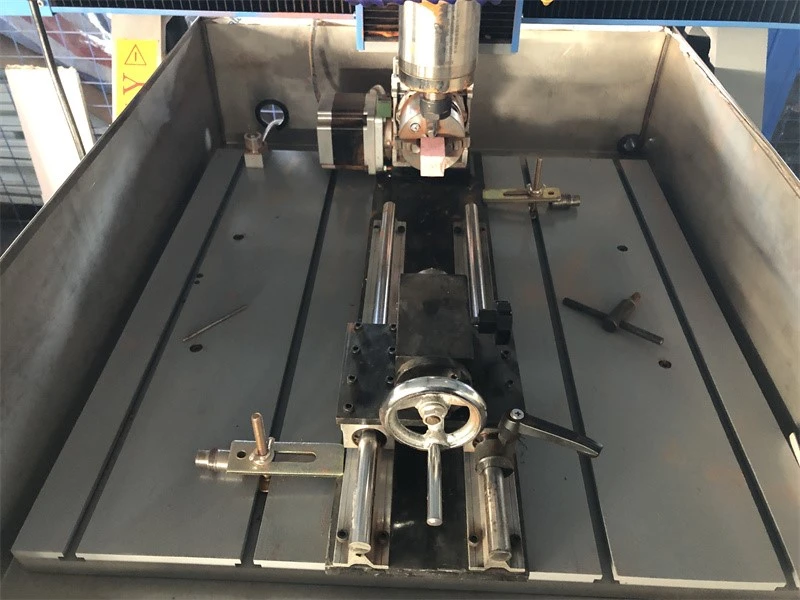

Rotary Axis 3D Engraving
Equipped with a fourth-axis rotary mechanism, it enables 3D engraving of cylindrical and special-shaped workpieces.
High-Efficiency Spindle
Equipped with a 1.5–2.2kW high-frequency water-cooled spindle, it achieves speeds up to 24,000 rpm and is compatible with a wide range of tools.
Safe and Easy Maintenance
Equipped with limit switches and an emergency stop button for safe operation.
Product Applications
Crafts and Gifts: Woodcarvings, 3D Decorative Objects, Artistic Sculptures
Advertising: Acrylic Signs, 3D Signs, Advertising Displays
Furniture Manufacturing: 3D Sculptures for Table and Chair Columns, Carved Panels, and Handrails
Model Manufacturing: Architectural Models, Mold Samples, Teaching Experimental Components
Metal Parts: Small-batch Precision Machining of Aluminum and Copper Parts
Product Specification
|
Machine model
|
4040 CNC Router
|
6060 CNC Router
|
6090 CNC Router
|
|
Working area
|
400*400mm
|
600*600mm
|
600*900mm
|
|
Machine structure
|
Cast iron structure, table move on Y axis
|
||
|
Feeding height
|
150/200/300mm
|
||
|
Spindle
|
2.2kW water cooling spindle
|
||
|
Spindle speed
|
0~24000rpm
|
||
|
Control system
|
Weihong / DSP
|
||
|
Drive and motor
|
Leadshine stepper / servo driver and motor
|
||
|
X Y Z axis guide rail
|
Taiwan square linear rails
|
||
|
Transmission
|
X Y Z axis TBI ball screw driver
|
||
|
Coolant system
|
Including water sink and pump to cool down tool bits and working materials
|
||
|
Working voltage
|
AC220V/380V±10% / 50~60Hz
|
||
|
Working precision
|
0.05mm
|
||
|
Repeatability precision
|
0.01mm
|
||
|
Command code
|
G code
|
||
|
Compatible software
|
Type3/Artcam//Mastercam/Ucancam etc
|
||
|
Machine tool work light
|
LED machine light
|
||
|
*The size, color, configuration and design can all be customized according to customer's requirements.
|
|||
Product photos
sample photos
Company Strength
Production and Product Lines
The company's 20,000-square-meter factory focuses on the research and development and production of panel furniture production lines, CNC machine tools, woodworking and quartz stone processing centers, laser side hole drilling, hexagonal drilling, and automated production lines.
Quality Certification
We have registered the "Zhongke" trademark, established a quality system, and obtained ISO9000 and CE certifications to ensure product quality and export compliance.
Qualifications and Honors
We have been designated as a "Specialized, Advanced, and Innovative" "Technology-Based Small and Medium-Sized Enterprise" (2024), a "High-Tech Enterprise" (2024), and a "Gazelle Enterprise" (2025).
Market Position
Our products are exported to Southeast Asia, the Middle East, Africa, Europe, and the United States, with foreign trade accounting for 40%. Our customer repurchase rate and export volume have steadily increased.
FAQ
Q: What materials is this machine suitable for?
A: It can process wood, acrylic, PVC, MDF, soft metals such as aluminum and copper, and composite materials, with both engraving and cutting capabilities.
Q: What support is available for wholesale purchases?
A: We sell directly from the factory, support OEM/ODM, and offer complete machine customization, discounted bulk pricing, and a stock of accessories. We guarantee delivery and after-sales service.
Q: Is it easy to transport and install?
A: The machine is packaged in reinforced wooden boxes and can be shipped by sea or air. Installation videos and remote technical guidance are provided to help customers quickly get started.
Q: What are the advantages of a rotary axis compared to a standard three-axis machine?
A: The rotary axis can process cylindrical and three-dimensional workpieces, expanding the processing range and enabling the machine to not only cut flat surfaces but also perform three-dimensional engraving.
Q: Is the machine complex to maintain?
A: Daily maintenance requires only keeping the guide rails clean and regularly lubricating the lead screw. The electrical system is well-protected, making maintenance simple and easy for an average operator.
