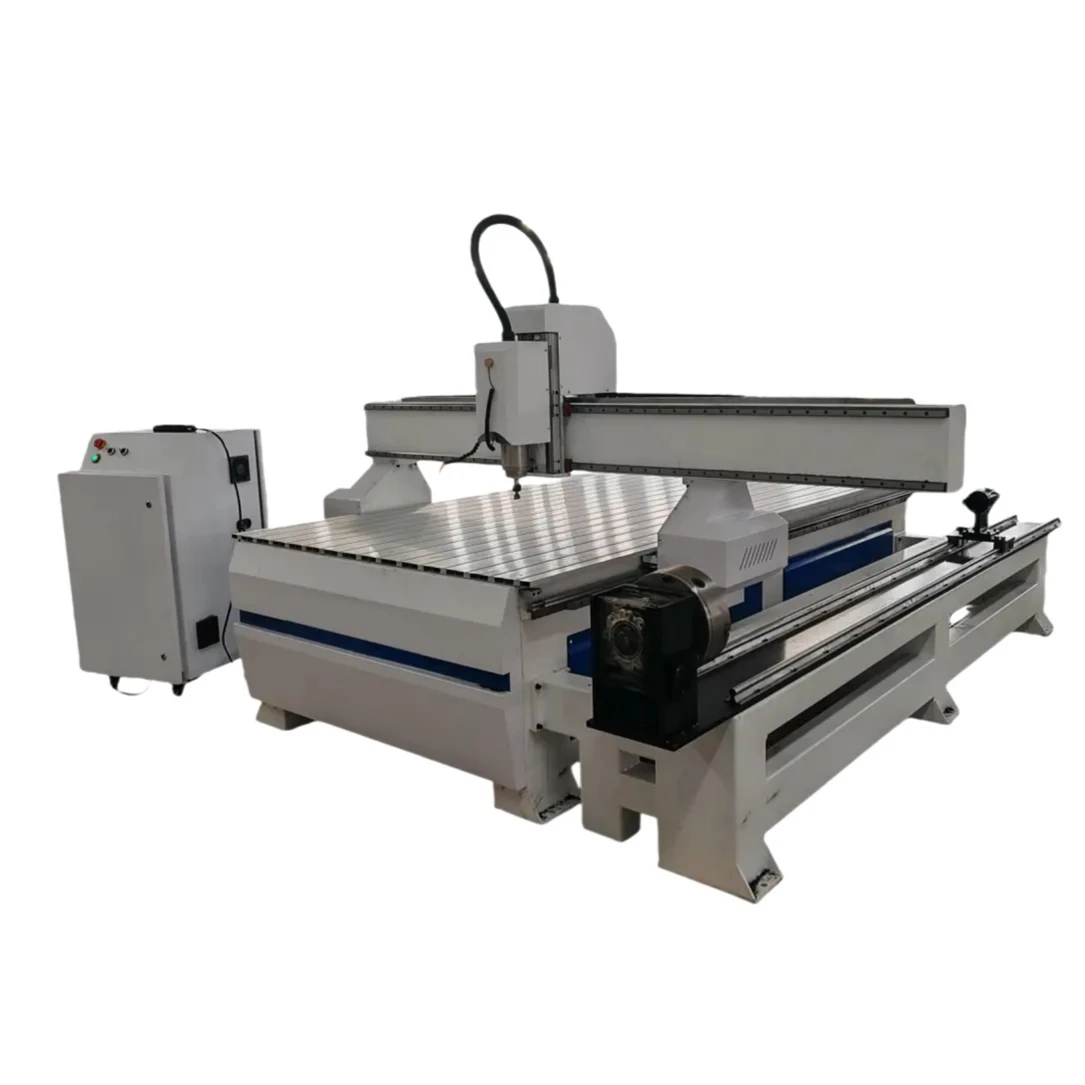

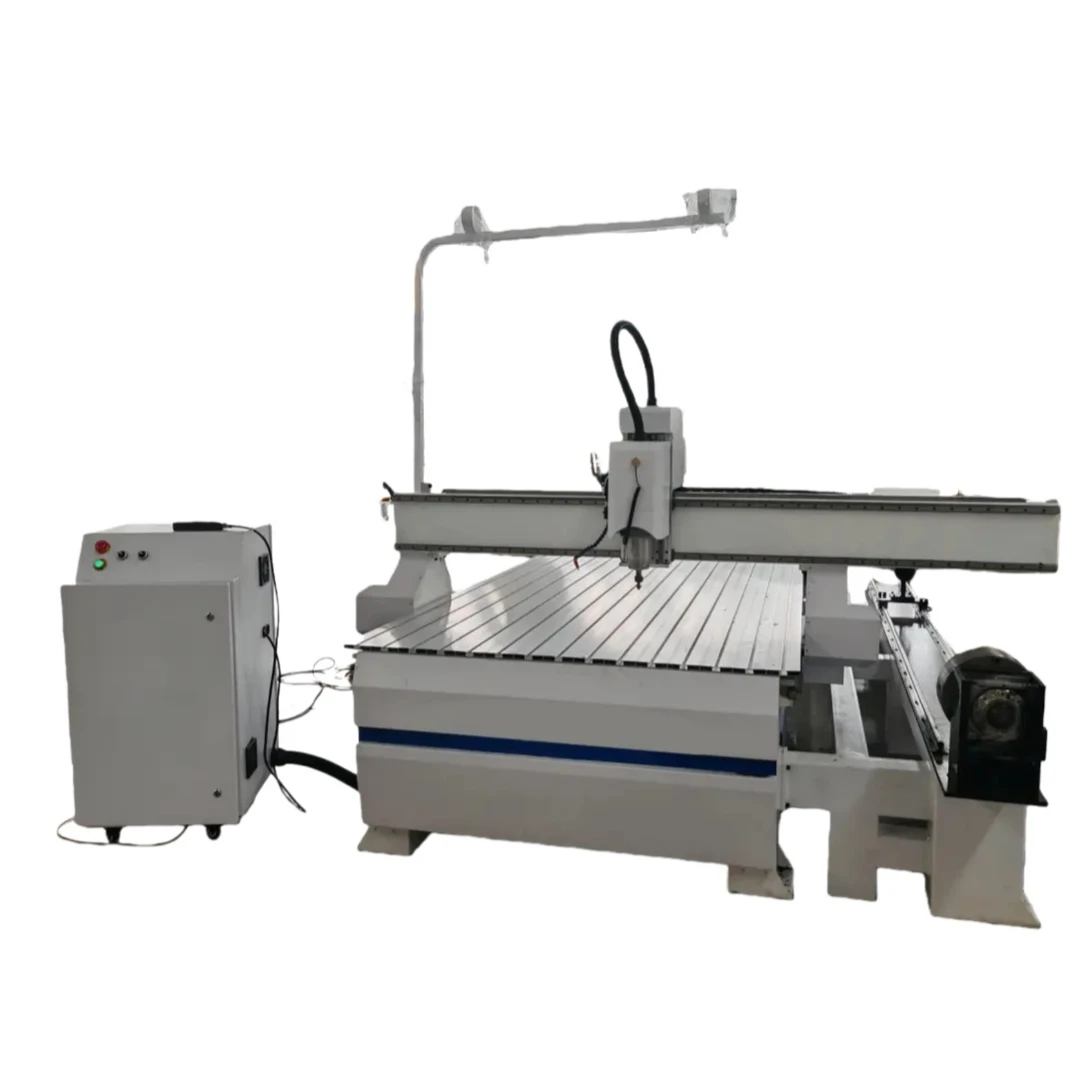

4 Axis 3d Rotary Cnc Engraving Machine For Engraving Handrails
4 axis 3d cnc router with rotary attachment, for 3d buddha engraving, chair legs, bed legs, sofa legs, handrails, etc engraing and carving, also can be used for engraving flat wood sheet
Description
Feature

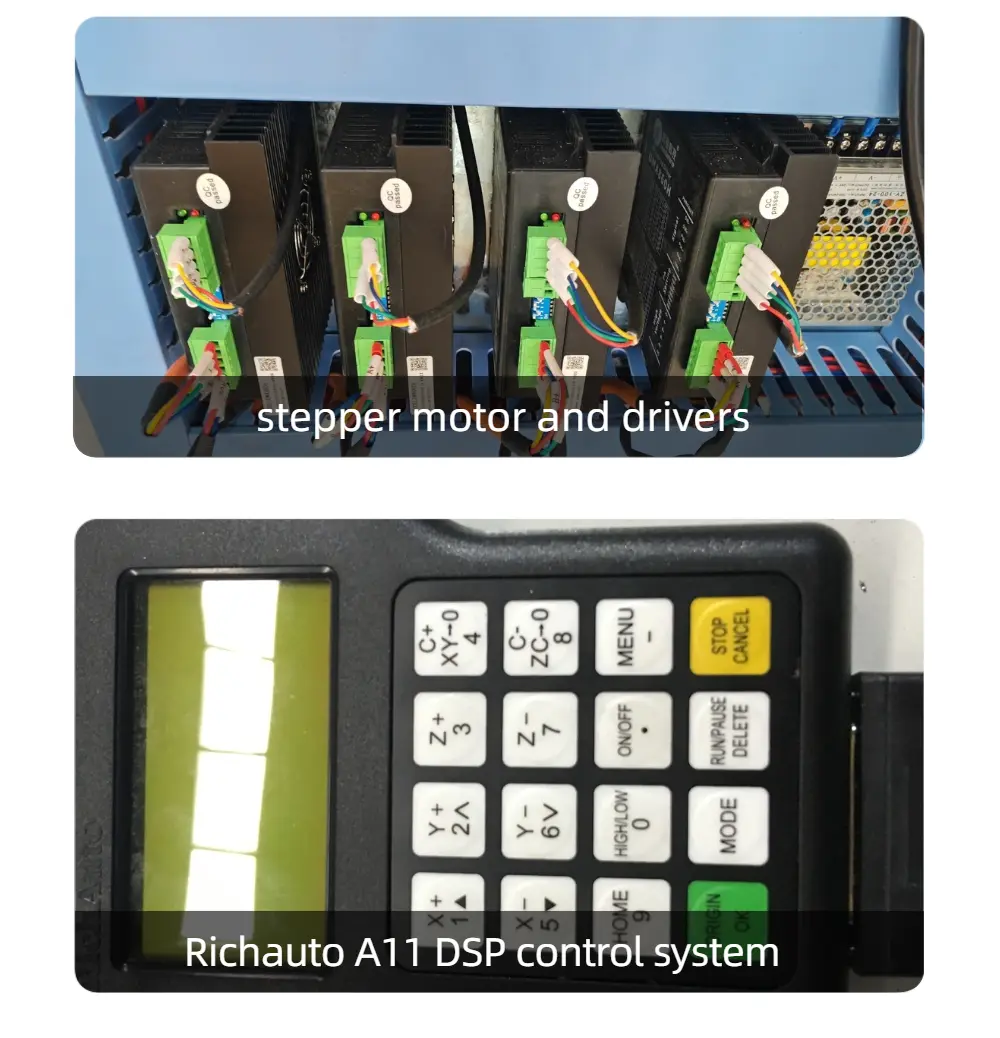

* DSP control system
* Heavy duty machine bed and large steel gantry, stable and high precision
* 6.0kw air cooling or air cooling spindle
* Vacuum with T-slot working table.
* Y-axis dual servo motor drive, provide a strong impetus to ensure stable work
* Perfect oil lubrication system makes maintenance much easier
* Tool sensor to adjust the distance from materials to cutter automatically.
* Breakpoint memory, can continue to work after power off & breaking knife.
* And electric limit switch on all axis, make sure machine running well.
Specification
|
Model |
ZK-1325-R |
|
X, Y Working size |
1300*2500mm |
|
Z feed Height |
300mm |
|
Table Surface |
Vacuum table with T-slot table, 7.5kw vacuum pump |
|
Vacuum pump |
7.5kw |
|
X, Y Structure |
Rack and Pinion, Taiwan Linear Square Guide Rail |
|
Z Structure |
20mm Linear Square Guide Rail and Ball Screw |
|
Max. Power Consumption |
(Without spindle) 2.0Kw |
|
Max. Rapid Travel Rate |
33000mm/min |
|
Max. Working Speed |
25000mm/min |
|
Spindle Power |
6kw air cooling spindle |
|
Spindle Speed |
0-24000RPM |
|
Drive Motors |
AC Servo motor and driver with reducer |
|
Working Voltage |
AC380V 50/60Hz |
|
Command Language |
G code |
|
Control System |
DSP A18 |
|
X,Y,Z repositioning Accuracy |
±0.01mm |
|
X,Y Resolution |
<0.01mm |
|
Software |
Artcam |
|
Running Temperature |
0 degree - 45 degree |
|
Relative Humidity |
30% - 75% |
|
Optional Parts |
Rotary |
|
Warranty |
1 year |

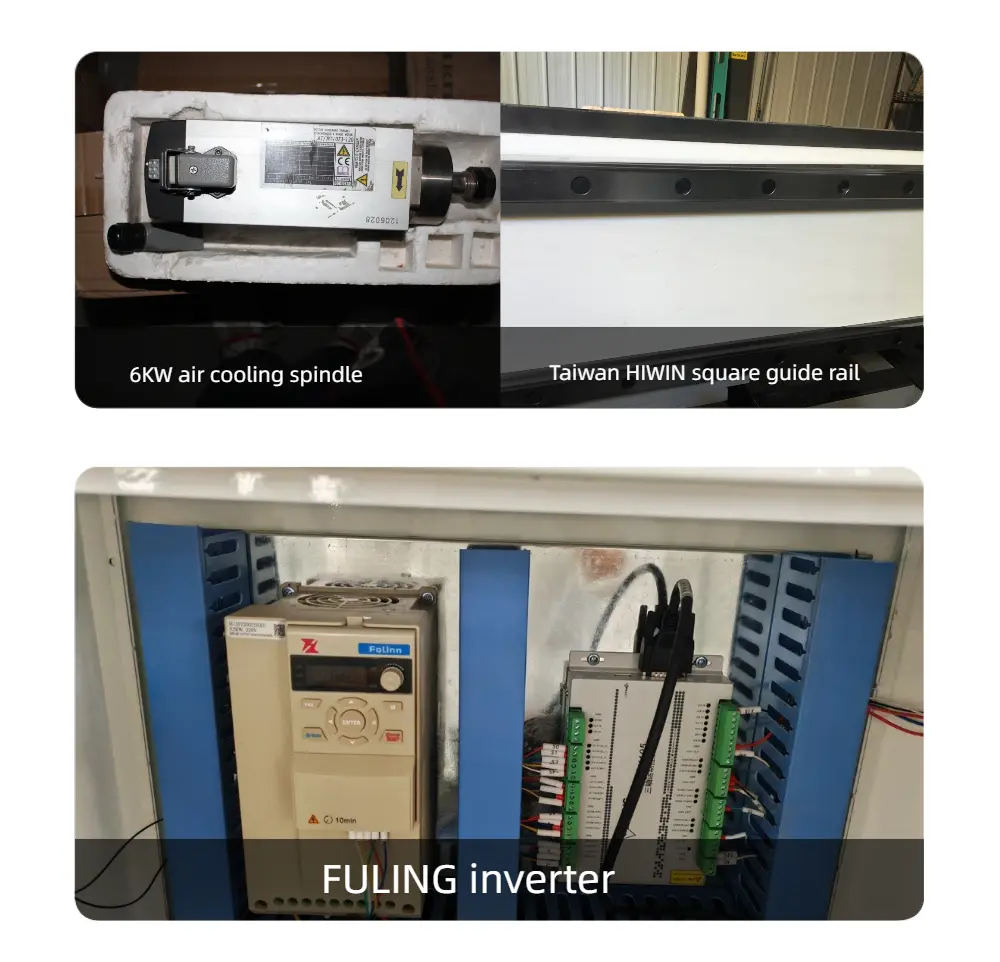

main configuration
