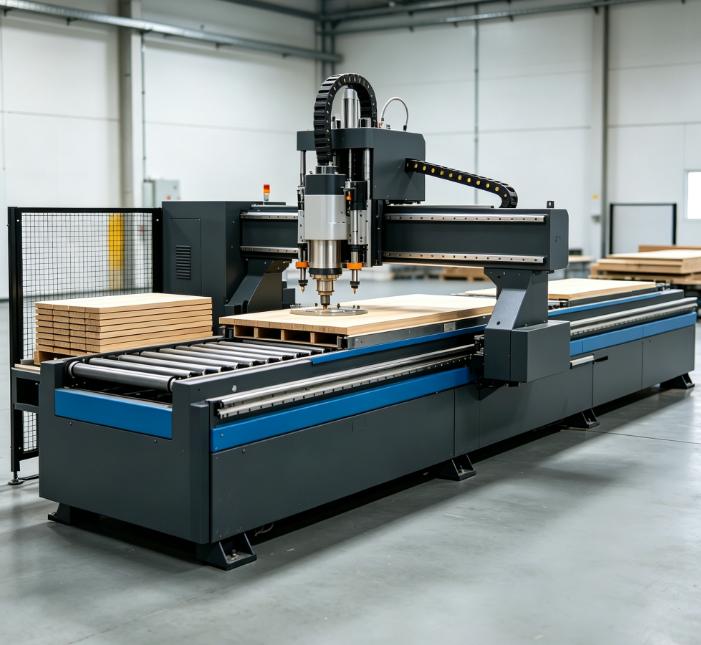

Automatic Feeding Processing Center
The Automatic Feeding Processing Center is a high-duty industrial CNC solution engineered for continuous, automated panel fabrication. By integrating automatic loading, precise panel alignment, routing, vertical drilling, grooving, and nesting into a single, synchronized workflow, this system minimizes manual material handling between operations.
Description
Product Overview
The Automatic Feeding Processing Center is a high-duty industrial CNC solution engineered for continuous, automated panel fabrication. By integrating automatic loading, precise panel alignment, routing, vertical drilling, grooving, and nesting into a single, synchronized workflow, this system minimizes manual material handling between operations. The design focuses on stable material throughput, consistent processing tolerances, and reliable cycle times during extended production runs. This processing center is engineered for volume manufacturers of cabinetry, custom closets, commercial furniture, and engineered wood components.
Key Advantages
Continuous Material Flow: The integrated automated loading system transfers raw panels directly to the working area, minimizing manual handling and idle time between cycles.
Optimized Spindle Duty Cycle: Synchronized loading and machining sequences reduce idle time, increasing daily output compared to manual-loading systems.
Mechanical Positioning Precision: Industrial-grade alignment pins and referencing systems ensure repeatable accuracy for multi-sided drilling and routing operations.
Single-Pass Workflow Integration: Performs vertical drilling, grooving, profiling, and nesting in one program cycle, maintaining workpiece reference and reducing transit handling.
Rigid Structural Base: The stress-relieved steel frame and gantry absorb structural vibrations, maintaining edge finish quality and geometric accuracy over long operating hours.
Broad Substrate Compatibility: Effectively processes a wide range of materials, including MDF, plywood, particleboard, laminated panels, solid wood, PVC, acrylics, and technical composites.
Technical Specifications
|
Item |
Specification |
|
Working Area |
1300 × 2500 mm (Custom sizes available) |
|
Feeding System |
Automated panel loading and positioning |
|
Spindle Power |
9 kW high-speed spindle (Optional configurations available) |
|
Spindle Speed |
Up to 24,000 rpm |
|
Tool Changer |
Automatic Tool Changer (ATC) |
|
Drive System |
High-precision Servo Motors and Drives |
|
Positioning Accuracy |
±0.05 mm |
|
Repeat Positioning Accuracy |
±0.03 mm |
|
Maximum Working Speed |
Up to 60 m/min |
|
Table Structure |
Multi-zone vacuum adsorption table |
|
Control System |
Industrial CNC controller |
|
Supported Materials |
MDF, Particleboard, Plywood, Solid Wood, PVC, Acrylic, Composites |
|
Operating Voltage |
Custom configurations matching local industrial standards |
Typical Applications
This automated CNC processing system is applied across professional manufacturing sectors for:
Kitchen and vanity cabinet nesting
Wardrobe and closet system fabrication
Custom residential furniture components
Commercial and office workstation manufacturing
Acoustic and decorative wall panel processing
Wooden door and entry frame component machining
Retail shelving and display fixtures
Architectural millwork and cladding
Composite panel sizing and routing
Optional Customization
To align with specific factory layouts and production goals, the platform can be configured with the following technical options:
Working Dimensions
Expanded table configurations for larger sheet materials.
Spindle Configurations
Alternative power ratings and cooling systems.
Tool Capacity
Rotary or linear tool magazines with expanded tool slots.
Infeed and Outfeed Automation
Automatic material sorting, outfeed conveyor belts, and labeling stations.
Drilling Units
Multi-spindle vertical and horizontal boring blocks.
Dust Extraction
Heavy-duty extraction hoods matched to factory filtration capacities.
Vacuum Hold-Down
Variable displacement vacuum pumps to suit specific material porousness.
Safety Integration
Light curtains, safety barriers, and physical enclosures.
Electrical Compliance
Tailored voltage, frequency, and safety cabinet standards.
Quality Control & Certifications
To ensure immediate operational integration upon delivery, every processing center undergoes rigorous validation protocols.
Factory Inspection Protocols:
● Laser interferometer measurement of linear axis alignment and positioning accuracy.
● Continuous dry-run cycles to verify mechanical, pneumatic, and electronic stability.
● Full-load cutting tests to verify spindle performance, edge quality, and dimensional tolerances.
● Dynamic testing of the automatic tool-changing mechanism under full load.
● Comprehensive electrical safety, grounding, and insulation resistance testing.
International Compliance Standards:
● CE Certification
● ISO 9001 Quality Management System compliance
● SGS inspection support and documentation on request
Packaging & Shipping
All units are prepared for international transport to prevent structural deflection or environmental damage.
Corrosion Prevention: Application of protective grease and moisture-barrier coatings on all precision guide rails.
Sealed Barrier: Sealed moisture-resistant wrapping and thick protective film covering.
Structural Enclosure: Securely anchored within heavy-duty, reinforced wooden export crates.
Internal Stabilization: Mechanical tie-downs and heavy bracing to prevent movement within the crate during maritime transit.
Identification: Clear marking of center of gravity, hoisting points, and international handling symbols.
Logistics Support: Complete documentation and container loading support for safe shipping.
Frequently Asked Questions
Q: Which materials can this machine process?
A: The system processes engineered wood panels such as MDF, plywood, particleboard, and laminated boards, alongside solid timber, PVC, acrylic sheets, and non-abrasive composite materials.
Q: Can the machine perform multiple operations in a single cycle?
A: Yes. The industrial control system coordinates the automatic tool changer to transition between vertical drilling, grooving, pocketing, and nesting operations within a single program run.
Q: Is this equipment engineered for multi-shift production environments?
A: Yes. The structural steel frame and high-duty drive components are designed to maintain dimensional tolerances during continuous industrial operation.
Q: What customization options are available for specific factory lines?
A: We provide tailorable configurations covering working dimensions, spindle capacities, auxiliary boring blocks, outfeed conveyor integration, and localized voltage setups.
