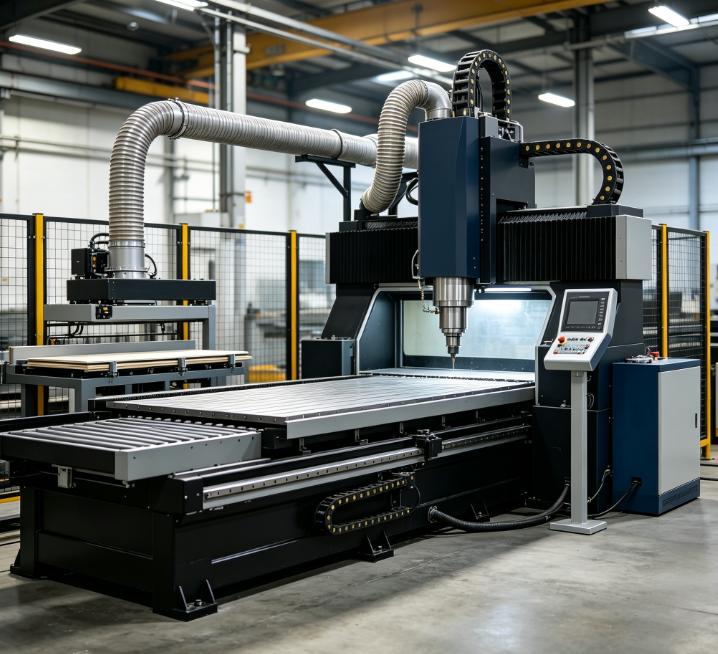

Intelligent Loading Production Machine



The Intelligent Loading Production Machine is a heavy-duty, automated CNC processing cell engineered for continuous, high-capacity panel nesting, routing, and drilling. By synchronizing automatic raw material loading, heavy-duty sheet positioning, and multi-axis CNC machining into a single, unattended workflow, this system maximizes spindle duty cycles and delivers precise part geometries for industrial panel-furniture and architectural millwork manufacturers.





Maximization of Spindle Duty Cycles: Eliminates idle times associated with manual forklift loading and panel alignment, maintaining high machine utilization rates.

High-Fidelity Repeatability: CNC-controlled axes combined with rigid structural components prevent positional drift, ensuring identical dimensional tolerance across large-batch production runs.

Optimized Resource Allocation: Minimizes physical labor requirements for heavy material handling, allowing operators to focus on programming, quality control, and shop-floor logistics.

Modular Plant Integration: The flexible system architecture adapts to varying floor layouts, material flow directions, and automated dust extraction systems.





Item	Specification
Machine Type	Automated CNC Nesting and Loading Production Cell
Working Area	Configurable sizes (such as 1300 mm x 2500 mm, 2100 mm x 3100 mm, or custom layouts)
Spindle Power	9.0 kW / 12.0 kW high-frequency air-cooled electrospindle
Loading Method	Automated vacuum-cup overhead loading system with integrated pre-labeling options
Processing Functions	Multi-axis routing, vertical drilling, grooving, profiling, and nesting
Control System	Industrial-grade multi-axis CNC controller with graphical user interface
Drive System	High-resolution AC brushless servo motors and planetary gearboxes
Table Structure	Phenolic matrix vacuum table with multi-zone control and pneumatic positioning pins
Material Compatibility	MDF, MFC, plywood, particleboard, solid wood, and engineering plastics
Application	Continuous, multi-shift industrial woodworking and panel processing





This automated CNC cell is designed for industrial-scale processing of wood-based panels in the following sectors:





The manufacturing sequence is engineered to run in a continuous, optimized loop:

Automatic Panel Loading: The overhead vacuum gantry picks a single sheet from the raw material stack and places it onto the machine table.

Material Positioning and Alignment: Integrated pneumatic reference stops deploy automatically to push the panel into the zero-point datum.

CNC Machining Operations: The vacuum table activates, and the CNC spindle and drill block execute nesting, drilling, and routing paths.

Finished Panel Unloading or Transfer: A pusher rake discharges the finished nested parts onto an outfeed conveyor while simultaneously cleaning the vacuum bed for the next cycle.





To align with specific factory footprints and production metrics, we offer engineered customization options:





Each machine undergoes rigorous testing protocols to verify structural integrity and kinematic performance before dispatch:

Structural Geometry Verification: Coordinate measuring machines and laser interferometers verify the flatness, perpendicularity, and alignment of the gantry.

Kinematic and Drive Diagnostics: Continuous run-in testing of servo drives and spindles to ensure thermal stability and dynamic accuracy.

Operational Validation: Full load-cycle testing on industrial panel materials to verify edge quality and dimensional precision under load.

Compliance Standards
● CE Declaration of Conformity
● ISO 9001 Quality Management System Certification





Machinery is packaged to withstand maritime, overland, and intermodal freight transport:

Anti-Moisture Protection: Heavy-duty vapor corrosion inhibitor vacuum sealing to prevent oxidation.

Fixed Mechanical Components: Structural gantries, heads, and control cabinets are mechanically anchored to steel transport skids.

Protective Wrapping: High-density foam padding protects precise linear guide rails and ball screws.

Reinforced Export Packaging: ISPM 15-compliant, heavy-duty wooden crates designed for overhead crane and forklift handling.
