Automatic Loading Woodworking Machine

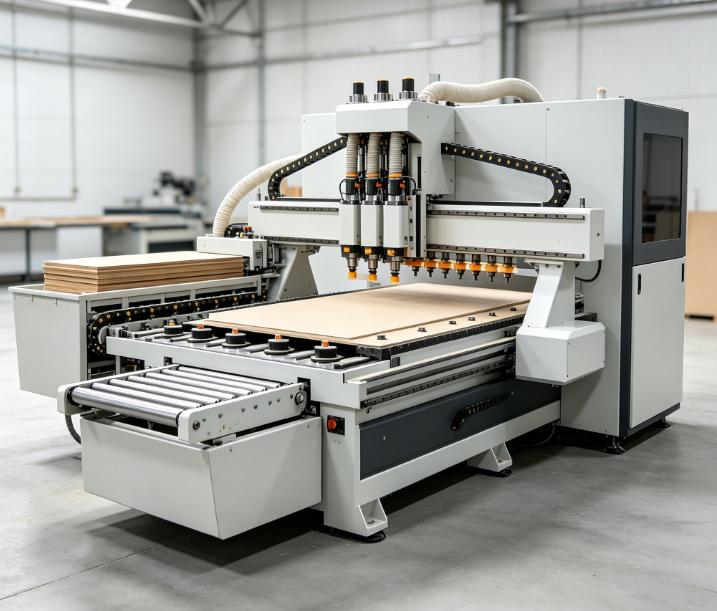

The Automatic Loading Woodworking Machine is an industrial CNC processing center engineered for automated panel nesting, routing, and drilling. By integrating vacuum-assisted material loading, multi-axis machining, and precision positioning into a single managed cycle, the system optimizes spindle utilization and standardizes component output.
Description
Product Overview
The Automatic Loading Woodworking Machine is an industrial CNC processing center engineered for automated panel nesting, routing, and drilling. By integrating vacuum-assisted material loading, multi-axis machining, and precision positioning into a single managed cycle, the system optimizes spindle utilization and standardizes component output.
The automated handling system mechanicalizes panel transfer directly from the loading bay to the multi-zone vacuum matrix, maintaining continuous operation throughout high-volume cabinetry, millwork, and furniture component manufacturing. Designed for multi-shift production environments, the system handles medium-density fiberboard (MDF), engineered plywood, particle board, melamine-faced panels, solid wood elements, and industrial plastics.
Product Advantages
Mechanicalized Sheet Loading: Vacuum-pad lifting gantry automates material retrieval and table placement, reducing handling time and material scuffing.
Synchronized Process Flow: Integration of material positioning, multi-tool machining, and cleaning cycles minimizes non-cutting intervals.
Zoned Vacuum Retention: High-flow matrix bed provides independent suction sectors to hold varied panel geometry without mechanical fixtures.
Rigid Structural Engineering: Stress-relieved, heavy-gauge steel frame eliminates deflection under dynamic acceleration, securing long-term geometric precision.
Integrated Multi-Task Processing: Performs nesting, vertical boring, pocketing, and profiling within a single program file to prevent cumulative alignment errors.
High-Volume Production Capacity: Component selection and structural thermal stability support consistent output during extended operations.
Technical Specifications
|
Item |
Specification |
|
Working Area |
1300 x 2500 mm (Standard footprint) |
|
Loading System |
Automated Overhead Vacuum Suction Gantry |
|
Processing Functions |
Nesting, Routing, Vertical Boring, Grooving, Engraving |
|
Table Type |
High-Flow Multi-Zone Grid Vacuum Table |
|
Drive System |
Synchronized High-Torque AC Servo Drive Motors |
|
Positioning Accuracy |
±0.05 mm |
|
Repeat Positioning Accuracy |
±0.03 mm |
|
Maximum Travel Speed |
60 m/min |
|
Control System |
Multi-Axis Industrial CNC Microprocessor |
|
Power Supply |
220V / 380V / 415V (3-Phase, 50/60Hz) |
Applications
● Frameless and modular kitchen cabinet production
● Commercial architectural millwork and wall paneling
● Residential wardrobe and closet system manufacturing
● Office furniture and workstation components
● Retail store fixtures and display cabinetry
● Passage doors and interior wooden frames
● Perforated acoustic ceiling and wall panels
● Pre-machined components for flat-pack furniture
Material Compatibility
● Medium-Density Fiberboard (MDF) and High-Density Fiberboard (HDF)
● Multi-layered plywood and marine-grade veneered sheets
● Raw and melamine-faced particle board (MFC)
● High-Pressure Laminate (HPL) composite panels
● Hardwood and softwood timber panels
● Expanded Polyvinyl Chloride (PVC) sheets
● Cast and extruded acrylic substrates
● Wood-plastic composite (WPC) materials6. Customization Options
Customization Options
Dimensional Capacities: Expanded processing envelopes up to 2100 x 4000 mm.
Spindle Power Ratings: Electrospindles from 9.0 kW to 12.0 kW with air or liquid cooling.
Tool Management: Linear or rotary Automatic Tool Changer (ATC) up to 24 slots.
Boring Configurations: Multi-spindle vertical and horizontal drilling blocks.
Material Offloading: Automated pusher bars paired with synchronized outfeed conveyor belts.
Vacuum Systems: High-capacity rotary claw or liquid ring vacuum pumps.
Safety Systems: Multi-zone optical light curtains and physical perimeter fencing.
Interface Localization: Regional language packages and specific electrical compliance builds.
Certifications
CE Declaration of Conformity
Certified under Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU.
ISO 9001 Quality Management
Manufactured within production facilities adhering to international quality control workflows.
Global Export Documentation
Certificate of Origin, specialized custom clearance paperwork, and safety data sheets provided.
Packaging & Shipping
Anti-Corrosion Treatment
Application of protective oil on linear guide rails and machined surfaces.
01
Vapor Barrier Protection
Hermetically sealed vacuum foil wrapping to isolate equipment from maritime humidity.
02
Impact Mitigation
High-density foam dampening applied to structural extensions and sensitive electronics.
03
Structural Shipping Crating
Bolted steel-base framing enclosed within ISPM-15 compliant wooden export crates.
04
Container Security
Heavy-duty tie-down anchoring designed for standardized maritime container transport.
05
Frequently Asked Questions
Q: What materials can the machine process?
A: The system processes standard sheet goods including MDF, plywood, particle board, melamine-faced substrates, solid wood, and machinable plastics such as PVC and acrylic.
Q: How does the automatic loading system improve production?
A: The overhead vacuum gantry automates sheet collection and table alignment, which limits manual lifting, standardizes cycle duration, and protects panels from surface scratching.
Q: Can the machine be customized?
A: Yes. Configurations for axis travel, spindle capacities, drilling blocks, vacuum hold-down zones, and outfeed automation are tailored to factory output specifications.
