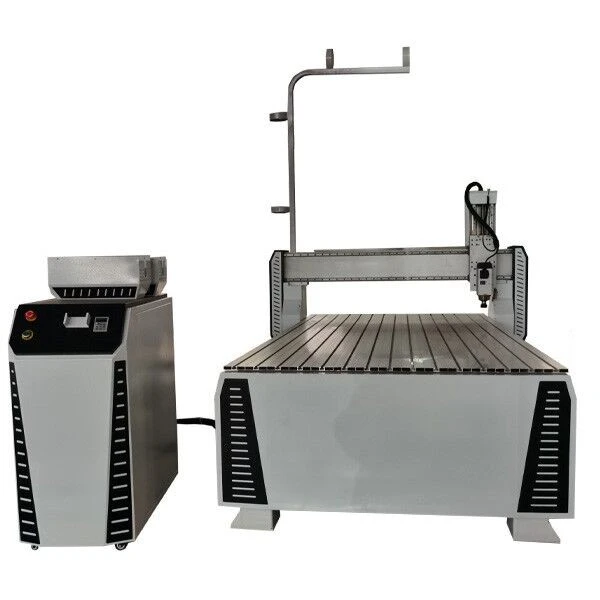

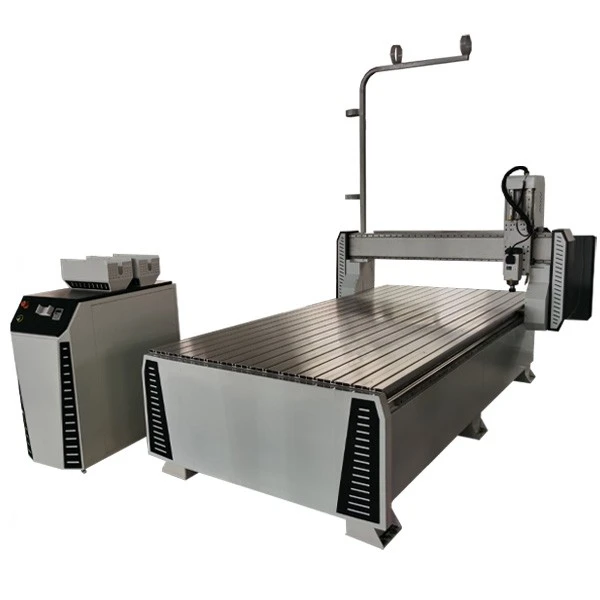

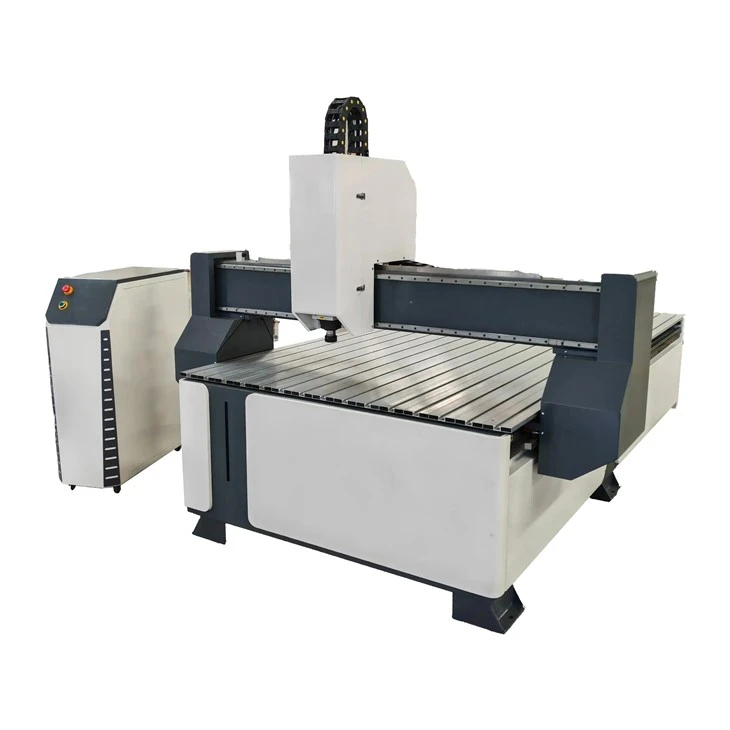

1325 Model Cnc Router For Wood MDF Engraving And Cutting
1325 model cnc router with T-slot table for MDF acrylic PVC engraving and cutting, also can be used for wood door engraving and carving
Description
Feature

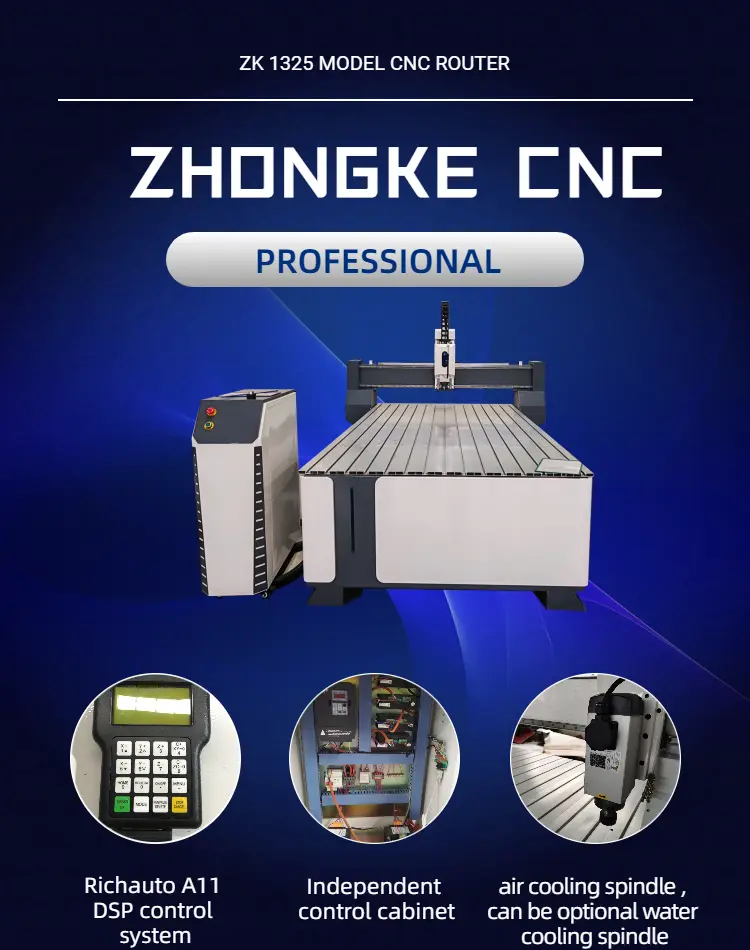

The 1325 wood engraving machine is a widely used CNC router for woodworking. Its effective working size is 1300mm (width) × 2500mm (length). Equipped with a high-power spindle, it realizes automatic engraving, cutting, milling and hollowing processing. Controlled by CNC system, the machine features stable operation, high machining precision and simple operation.

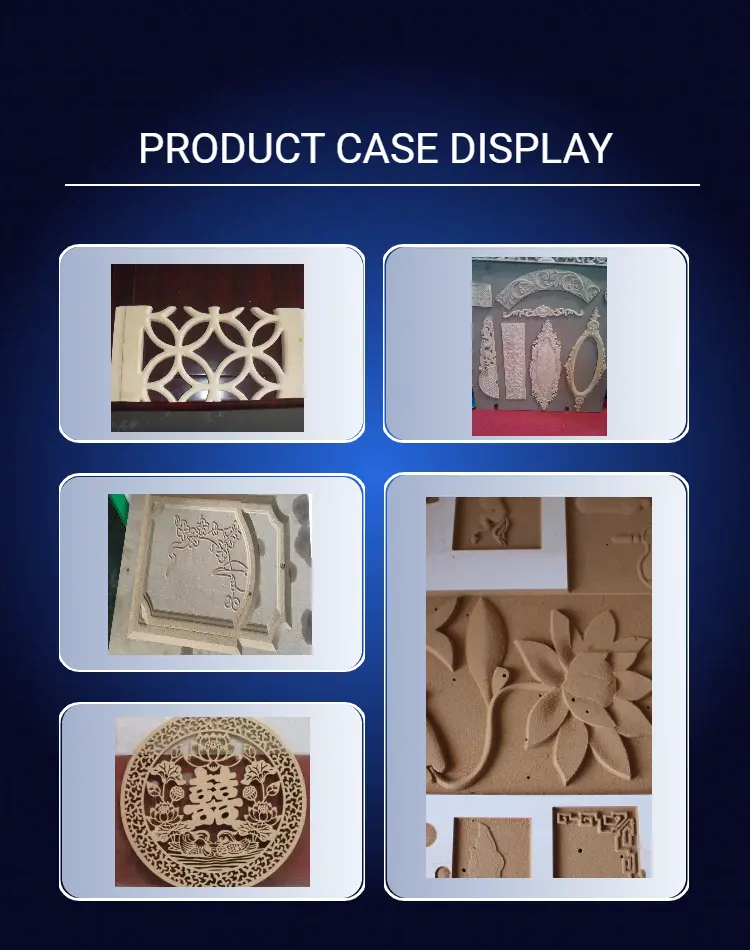

It is mainly applied to solid wood furniture, cabinet door carving, wooden crafts, acrylic cutting, MDF plate processing, advertising signs and other industries. This CNC router can process wood, MDF, acrylic, PVC, plywood and other non-metallic materials. It is a preferred equipment for woodworking workshops and advertising factories.
Specification
|
Model |
1325 |
|
X,Y,Z axis working area |
1300*2500*200mm Rotary diameter working diameter is 30cm, working length is 1.2m. |
|
Whole structure |
Welded Steel bed structure with gantry structure |
|
Table surface |
T-slot table with PVC |
|
X,Y,Z structure |
Taiwan HIWIN Square guide rails 20 size |
|
X,Y structure |
Rack and pinion transmission, high speed and more stable; Y -double motor drive |
|
Z structure |
Imported ball screw, high precision |
|
Max. idling speed |
25m/min |
|
Max. working speed |
15m/min |
|
Repositioning Accuracy |
±0.05mm |
|
X Y Z working Accuracy |
< 0.02mm |
|
Spindle |
China CC brand 6KW air cooling spindle |
|
Spindle rotating speed |
0-18000rpm/min |
|
Collect size |
ER 25 |
|
Operation language |
G code (plt, mmg, uoo, bmp) |
|
Driving system |
450B stepper motor and Leadshine 860H driver |
|
Operating system |
Richauto A11 3 axis DSP control system |
|
warranty |
1 year |
|
Delivery time |
20 working days |
