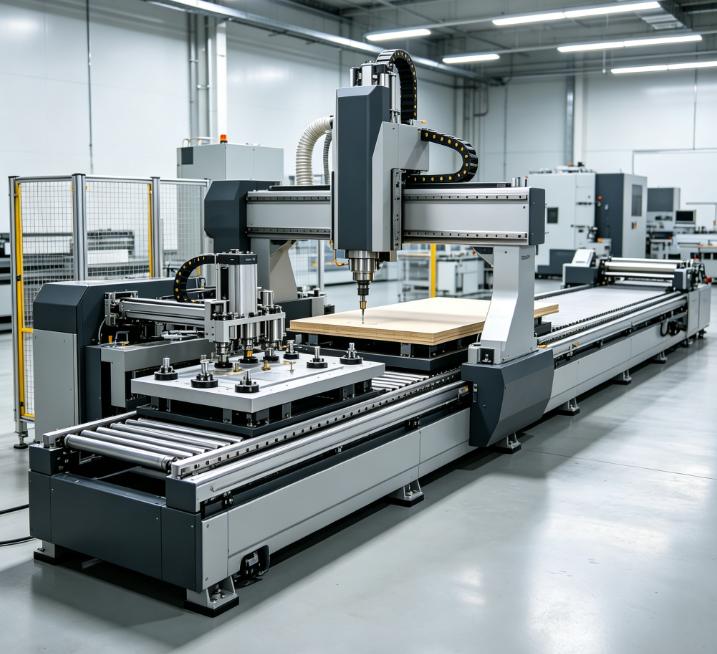

Intelligent Processing Production Line
The Intelligent Processing Production Line is an automated CNC manufacturing system designed for continuous, industrial-scale panel processing.
Description
Product Overview
The Intelligent Processing Production Line is an automated CNC manufacturing system designed for continuous, industrial-scale panel processing. The system synchronizes automatic material loading, precision alignment, multi-axis CNC routing, vertical drilling, nesting, and motorized unloading into a single, automated workflow. Engineered specifically for furniture, cabinet, and architectural panel manufacturers, this production line optimizes material yield, minimizes manual handling, and ensures uniform machining quality across high-volume production schedules.
Product Advantages
Continuous Production Efficiency: The automated loading and positioning mechanisms eliminate manual alignment setup times. The industrial CNC controller manages feed rates and cutting speeds dynamically, ensuring uniform cycle times for both individual custom orders and batch runs.
Engineered Material Handling: Automated vacuum lifters and integrated outfeed pushers manage heavy panel stock safely, reducing operator physical fatigue, minimizing workplace hazards, and organizing material flow.
Footprint Optimization: Consolidating loading, multi-axis routing, drilling, and unloading into a unified inline system reduces total factory floor space requirements and simplifies workshop logistics.
Technical Specifications
|
Item |
Specification |
|
Machine Type |
Intelligent Processing Production Line |
|
Processing Function |
Routing, Drilling, Cutting, Nesting |
|
Loading System |
Automatic Vacuum Loading System with Alignment |
|
Unloading System |
Automatic Outfeed Pusher with Belt Conveyor |
|
Control System |
Industrial CNC Control System |
|
Spindle Power |
High-Frequency Spindle (Configurable options) |
|
Working Area |
Customizable to standard international panel sizes |
|
Tool Magazine |
Automatic Tool Changer (Linear or Rotary carousel) |
|
Material Type |
MDF, Plywood, Particle Board, Solid Wood, Composite Panels |
|
Application |
Cabinetry, Wardrobes, Custom Furniture, Architectural Panels |
Intelligent Processing System Structure
The production line utilizes a coordinated mechanical sequence managed by a central CNC unit:

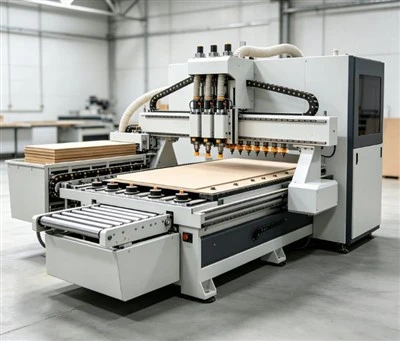

Automatic Loading Unit
High-vacuum suction cups lift raw panels from the lift table and position them onto the machine bed.
01
Material Positioning System
Pneumatic reference stops align the panel along the precision X and Y axes.
02
CNC Machining Center
Performs high-speed routing, shaping, and nesting operations with synchronized dust extraction.
03
Tool Changing System
Executes automatic tool transitions without pausing the production cycle.
04
Unloading Section
Cleans dust from both sides of the machined parts and transfers them to the outfeed conveyor.
05
Applications
This automated production line is configured for high-throughput environments including:
Industrial cabinet and wardrobe manufacturing
Customized flat-pack furniture production
Architectural wall panel and interior door fabrication
Commercial millwork and decorative component processing
High-volume woodworking and panel-processing facilities
Customization Capability
The system configuration can be engineered to match specific factory floor plans and output targets:
Table Dimensions: Customizable working areas designed for regional panel standards.
Spindle and Drill Blocks: Scalable spindle configurations and multi-spindle drilling heads.
Tool Capacity: Expandable tool changer carousels to accommodate complex tooling profiles.
Handling Automation: Modular roller conveyors, hydraulic lifting platforms, and protective fencing.
Software Compatibility: Seamless integration with leading design, nesting, and ERP platforms.
Manufacturing Process & Quality Control
Every production line undergoes systematic testing protocols to guarantee field reliability:
Geometrical Calibration
Laser interferometer testing to verify guide rail straightness and axis positioning accuracy.
Electrical Safety
Insulation, ground resistance, and voltage stability testing on all control cabinets.
Mechanical Run-In
Continuous dry-run operation of all axes to monitor thermal stability and motion control.
Machining Validation
Test cuts on various wood panels to verify dimensional tolerances and edge finish quality.
Certifications & Compliance
The equipment is designed and manufactured in compliance with international industrial safety standards:
CE Certification
Fully compliant with relevant European machinery, electrical, and safety directives.
ISO 9001 Certification
Manufactured under a certified quality management system to ensure process consistency.
Packaging & Global Delivery
We apply heavy-duty, export-grade packaging to protect the equipment during international transit:
Corrosion Prevention
Machine surfaces are treated with protective anti-rust coatings.
Vapor Barrier Packaging
Electronic cabinets and precise mechanical parts are sealed in vacuum barrier foil with moisture absorbents.
Structural Anchoring
Heavy mechanical frame assemblies are bolted directly to steel-reinforced shipping skids.
Logistics Documentation
Complete installation drawings, connection diagrams, and unpacking instructions accompany every shipment.
FAQ
Q: What materials can the Intelligent Processing Production Line process?
A: The system is engineered to process wood-based materials including MDF, plywood, particle board, OSB, and solid wood panels.
Q: Can the production line be customized?
A: Yes. The machine footprint, working dimensions, tooling options, and automation configurations are customizable to fit specific workshop layouts.
Q: Does the system include automatic loading and unloading?
A: Yes. The system is equipped with fully automated vacuum loading and outfeed conveyor systems for continuous, touch-free material handling.
Q: What industries use this production line?
A: It is widely utilized in professional cabinet manufacturing, panel furniture production, interior door fabrication, and high-volume woodworking facilities.
