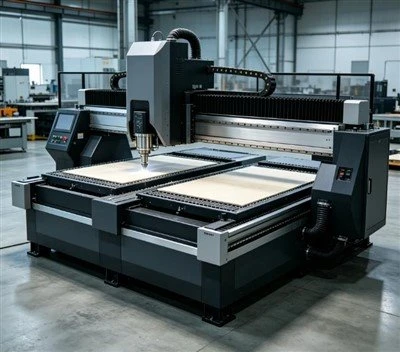

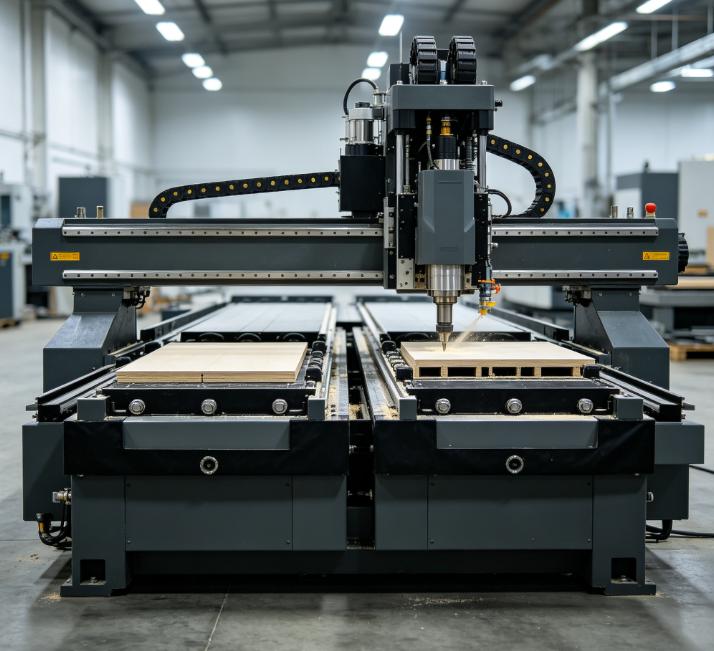

Dual Workstation Intelligent Processing Center
The Dual Workstation Intelligent Processing Center is a heavy-duty CNC router engineered for high-capacity panel processing and continuous industrial manufacturing. Featuring two independent vacuum work zones, the system utilizes a high-efficiency pendular processing workflow. This design enables operators to perform material loading and unloading on one station while active CNC machining continues on the other, eliminating idle spindle time.
Description
Product Overview
The Dual Workstation Intelligent Processing Center is a heavy-duty CNC router engineered for high-capacity panel processing and continuous industrial manufacturing. Featuring two independent vacuum work zones, the system utilizes a high-efficiency pendular processing workflow. This design enables operators to perform material loading and unloading on one station while active CNC machining continues on the other, eliminating idle spindle time.
Constructed on a stress-relieved steel frame, the machine integrates precision routing, vertical drilling, horizontal grooving, profiling, and nesting into a single automated platform. It is designed to optimize cycle times for cabinet manufacturing, panel-based furniture production, architectural millwork, and high-volume woodworking.
Key Features
Dual Workstation Alternating Processing: The independent twin-table layout supports simultaneous machining and panel preparation. Spindle utilization is maximized through continuous pendular operation, increasing daily throughput.
Integrated CNC Machining Capability: A multi-functional machining platform that executes routing, multi-spindle drilling, slotting, and profiling in a single setup, reducing material handling and improving part accuracy.
Heavy-Duty Machine Structure: The machine frame is fabricated from thick-walled, welded steel tubing, thermal-tempered to eliminate internal stress. The rigid gantry ensures geometric stability, minimal vibration, and long-term calibration accuracy under high dynamic loads.
Flexible Production Configuration: Designed with a modular architecture, the system can be tailored to specific manufacturing layouts, offering custom table sizes, spindle capacities, specialized drilling blocks, and vacuum zoning configurations.
Technical Specifications
|
Item |
Specification |
|
Machine Type |
Dual Workstation Industrial CNC Router |
|
Working Area |
Configurable (standard and oversized formats available) |
|
Spindle Power |
High-torque air-cooled or liquid-cooled spindles (9.0 kW to 12.0 kW) |
|
Spindle Speed |
Variable, up to 24,000 RPM via digital inverter |
|
Tool Magazine |
Rotary or linear Automatic Tool Changer (ATC), 8 to 24 positions |
|
Processing Functions |
High-speed nesting, vertical drilling, grooving, profiling, routing |
|
Table Structure |
Dual independent matrix vacuum tables with localized zoning |
|
Machine Frame |
Heat-treated, heavy-duty welded steel gantry and bed |
|
Control System |
Industrial-grade open architecture CNC control system |
|
Drive System |
High-precision closed-loop AC servo motors with helical rack and pinion |
|
Applicable Materials |
MDF, plywood, solid wood, particleboard, composites, engineering plastics |
Applications
- Panel furniture manufacturing (frameless cabinets, modular wardrobes, shelving systems)
- Kitchen cabinet production (nested carcass parts, grooved cabinet backs, door profiles)
- Office furniture processing (ergonomic desks, partition panels, conference tables)
- Wooden door manufacturing (hinge recessing, lockset routing, decorative face profiling)
- Interior decoration panel processing (acoustic wood panels, textured wall cladding)
- Custom woodworking production (curved solid wood parts, specialized panel components)
- Batch CNC nesting operations (optimized material yield sheet cutting)
Customization Capability
To seamlessly integrate into existing smart factory layouts, the platform supports several engineering options:
Working table dimensions matched to regional sheet standards.
Spindle configurations including aggregate head compatibility for horizontal machining.
Tool changing capacity scaled to process complexity.
Vacuum table configurations with automated zone selection.
CNC control functions with direct integration for major design-to-manufacture CAD/CAM software.
Quality Control & Testing
Every CNC processing center undergoes a standardized, multi-phase verification protocol before shipment:
Mechanical structure inspection using laser interferometers to verify positioning accuracy and repeatability.
Electrical system testing for voltage load capacity and electromagnetic compatibility.
Spindle operation testing with thermal profiling and dynamic balancing analysis.
Precision machining verification through test-cutting standard patterns to verify dimensional tolerances.
Safety function inspection including verification of safety mats, emergency stops, and interlock systems.
Continuous operation testing (a minimum of 48 hours of continuous dry-run execution).
Certifications & Compliance
The manufacturing processes conform to international industrial safety and quality standards:
CE Certification for conformity with applicable European safety directives.
ISO Quality Management System Certification ensuring standardized production workflows.
Packaging & Global Delivery
The equipment is prepared with specialized packaging designed to withstand environmental factors during international transit:
Anti-rust coating applied to all ground metal surfaces and linear guides.
Moisture-barrier vacuum packaging to prevent humidity exposure during maritime shipping.
Heavy-duty export wooden cases with structural steel skids.
Internal chassis anchoring to eliminate movement inside the shipping container.
FAQ
Q: What is the advantage of a dual workstation CNC router?
A: The dual-station configuration utilizes a pendular workflow. While the machine processes a workpiece on one station, the operator safely unloads the finished part and loads a new panel on the other station, maximizing spindle runtime.
Q: What materials can this processing center machine?
A: The system processes wood panels, MDF, plywood, particleboard, solid wood, high-pressure laminates (HPL), composites, and acrylics.
Q: Can the machine configuration be customized?
A: Yes. Spindle power, vacuum pump capacity, table size, tool changer capacity, and automated loading/unloading configurations can be customized to match specific production workflows.
Q: Is this machine suitable for furniture production?
A: Yes. The machine is optimized for nested-based manufacturing of cabinet components, panel furniture, and custom architectural woodwork.
Q: Does the machine support automatic tool changing?
A: Yes. The machine is equipped with an Automatic Tool Changer (ATC), customizable with linear or rotary carousels to handle diverse tooling profiles.
