Dual Zone Synchronous Processing Machine

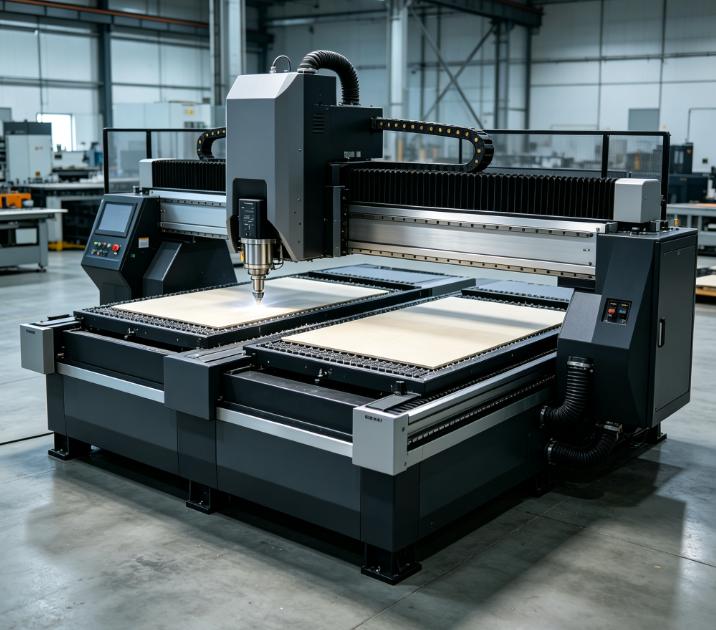

The Dual Zone Synchronous Processing Machine is a heavy-duty industrial CNC nesting and milling center engineered for continuous, high-volume manufacturing. Built with an independent, split-zone vacuum worktable, this system eliminates non-cutting loading cycles by enabling simultaneous material handling and active spindle machining. While one zone runs a routing program, operators safely clear and reload the adjacent zone.
Description
Product Overview
The Dual Zone Synchronous Processing Machine is a heavy-duty industrial CNC nesting and milling center engineered for continuous, high-volume manufacturing. Built with an independent, split-zone vacuum worktable, this system eliminates non-cutting loading cycles by enabling simultaneous material handling and active spindle machining. While one zone runs a routing program, operators safely clear and reload the adjacent zone.
This alternating, pendulum-style workflow optimizes spindle duty cycles in high-throughput panel processing, architectural millwork, and furniture manufacturing. By integrating precision routing, vertical boring, formatting, and high-speed nesting into a single operational footprint, it provides a stable platform for demanding three-shift production environments.
Key Features
Pneumatically Managed Dual-Zone Workspaces: Independent matrix vacuum tables feature dedicated mechanical zoning valves and pneumatic pop-up alignment pins. This allows continuous alternating cycles without interrupting active spindle cutting paths.
Thermal Annealed Monoblock Steel Frame: The heavy-gauge structural steel gantry and base undergo furnace-tempering to relieve internal mechanical stresses. This thermal process ensures geometric alignment stability and vibration absorption under high inertial acceleration.
Multi-Spindle and Boring Head Integration: The gantry supports optional multi-spindle arrays and multi-spindle vertical drill banks. This allows nested profiling, face boring, and routing in a single setup without manual tool intervention.
Synchronized Production Optimization: The physical separation of work zones allows safe, simultaneous parts unloading and sheet preparation during active machining cycles, driving labor efficiency.
Technical Specifications
|
Item |
Industrial Specification |
|
Machine Structure |
Stress-relieved, heavy-duty welded steel monoblock gantry and frame |
|
Working Area |
Tailored dual-station layouts (Common sizes: 1300×2500 mm × 2 or custom) |
|
Table Type |
High-flow matrix grid phenolic vacuum table with pneumatic zoning controls |
|
Drive Kinematics |
Helical rack and pinion on X/Y axes, preloaded precision ball screws on Z axis |
|
Guideways |
Heavy-duty square linear rails (25 mm or 30 mm) with dust-sealed blocks |
|
Spindle Configurations |
High-frequency 9.0 kW or 12 kW air-cooled/water-cooled options |
|
Spindle Speeds |
Stepless variable control (6,000 to 24,000 RPM) via inverter drives |
|
Control System |
Multi-axis industrial CNC controller supporting G-code protocols |
|
Tool Changer |
Linear or rotary Automatic Tool Changer (ATC) supporting up to 16 positions |
Applications
This high-performance CNC machining platform handles diverse large-format sheet fabrication requirements:
Modular Cabinetry & Nesting
High-speed nesting, grooving, and dowel-hole boring for cabinetry and casework.
Architectural Doors & Joinery
Heavy deep-routing, lock-case milling, and three-dimensional surface profiling on composite doors.
Commercial Wall Paneling
Precision sizing, grooving, and acoustic perforations on large-format interior panels.
Structural Plastic Componentry
Clean, burr-free edge machining of dense engineering polymers and display panels.
Customization Options
Engineering modularity allows tailored adjustments to match specific manufacturing layouts:
Gantry Clearance Expansion
Increased Z-axis clearance up to 400 mm for processing thick solid timber or molded components.
01
Drilling Block Integration
Independent multi-spindle vertical/horizontal boring aggregates for rapid hardware preparation.
02
High-Volume Vacuum Packages
Multi-pump configurations utilizing oil-free rotary vane or liquid ring vacuum pumps.
03
Automation Upgrades
Infeed roller tables, automatic material loading lifters, and outfeed sweeper belts.
04
Zoned Air Extraction
Integrated pneumatic dust hoods paired with multi-port extraction manifolds for chip clearance.
05
Manufacturing & Quality Control
Every machine undergoes a standardized quality verification workflow before leaving the assembly floor:
Stress Relief Annealing: Frame structures are heated to eliminate internal metal stress, avoiding long-term frame distortion.
Precision Milling: Linear rail beds and rack seats are machined in a single pass on five-axis portal milling centers.
Laser Interferometer Calibration: Dynamic pitch error and axis play are verified and corrected using laser alignment systems.
Electrical Insulation Testing: Panel wiring complies with standard grounding and electromagnetic shielding requirements.
Load Testing: Continuous 48-hour mechanical run-in and test cuts ensure structural rigidity and spindle performance under full load.
Certifications & Compliance
Production processes conform to high industrial manufacturing standards:
CE Declaration of Conformity for mechanical and electrical safety.
ISO 9001 Quality Management System certified manufacturing workflows.
Industrial Control Panel Compliance utilizing approved electrical components and safety relays.
Integrated Protective Guarding options including mechanical barriers or optical light curtains.
Packaging & Global Delivery
Preparation for ocean freight and long-distance inland transport follows strict export-safe procedures:
Corrosion Protection
Exposed machined steel surfaces are treated with long-life rust inhibitors and vacuum-sealed in foil barrier bags.
Solid Skid Anchor System
The machine frame is structurally bolted directly to a reinforced heavy steel or timber transport skid.
Phytosanitary Wood Crate
Closed wooden crate construction complies with international ISPM-15 export regulations.
Kinematic Lock
Gantry, spindle, and moving mechanical components are rigidly locked to prevent inertial movement.
FAQ
Q: What is the operational advantage of a dual-zone CNC router?
A: The split-table configuration allows alternating workflows. While the spindle cuts a panel on Zone A, the operator safely unloads parts and reloads raw sheets on Zone B, achieving near-zero idle time.
Q: What materials can this machine process?
A: It is optimized for engineered woods, including MDF, plywood, and particleboard, as well as solid wood panels, acrylics, and dense composite sheet materials.
Q: Can the physical bed size be customized?
A: Yes. Working dimensions can be scaled to fit specific sheet sizing, and spindle packages are configured based on production demands.
Q: Is an automatic tool changer option available?
A: Yes. Both linear and rotary automatic tool changers can be configured to execute complex multi-tool cutting paths without stopping for manual bit changes.
Q: Which production sectors benefit most from this machine?
A: High-volume cabinetry manufacturers, architectural millwork shops, interior door producers, and specialized contract panel processing facilities.
Q: How is the machine packed to prevent damage during sea shipping?
A: The machine is treated with anti-rust coatings, vacuum-sealed in protective vapor barriers, secured to a heavy-gauge shipping skid, and enclosed in heat-treated wood crates.
